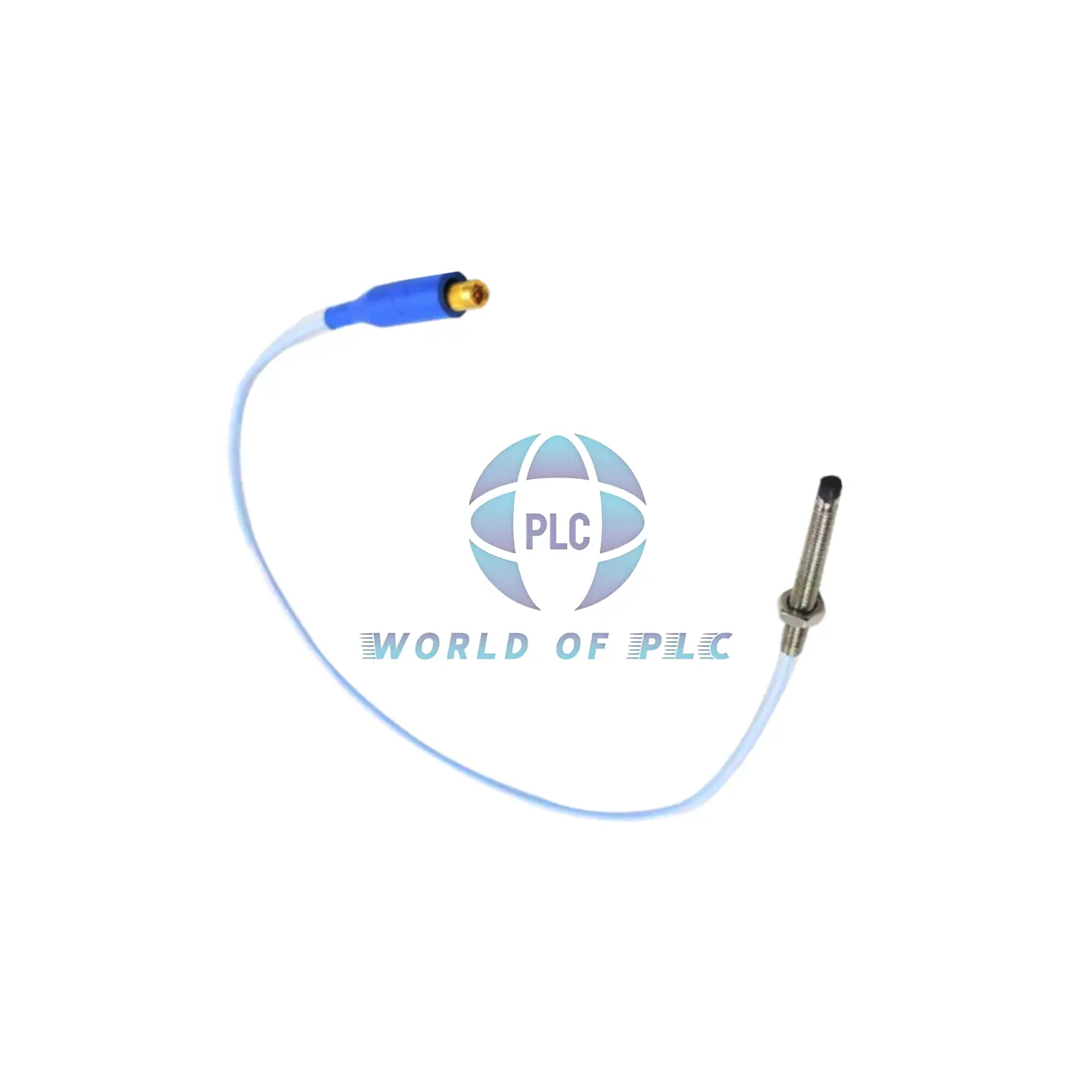

3300 NSv Compact Proximity Probe: Industrial-Grade Vibration Sensing

Product Identification

• Full Part Number: 330908-00-16-05-02-05
• Configuration Breakdown:
  • 00: 0.0 in unthreaded length
  • 16: 1.6 in compact case
  • 05: 0.5m cable (20 in)
  • 02: ClickLoc coaxial connector
  • 05: Multi-agency approved

Key Specifications

• Thread Type: 3/8-24 UNF
• Case Material: AISI304 stainless steel
• Tip Material: Chemical-resistant PPS
• Seal: Viton O-ring (2 bar rating)
• Resistance: 4.0Ω ±0.5Ω (center to outer)
• Cable Type: 75Ω FEP-insulated coaxial
• Mounting Torque: 11.3 N•m max (100 in-lb)
• Vibration Limit: 10g peak (20-2000 Hz)
• Shock Survival: 100g, 11ms half-sine

Environmental Ratings

• Temp Range: -52°C to +177°C operational
• Humidity: 0-100% condensing
• Altitude: 0-3000 meters
• IP Rating: IP67 when properly installed

Installation Guide

• Max thread engagement: 0.563 in
• Keep cable bends > 25mm radius
• Allow 15cm clearance for maintenance
• Verify O-ring condition before mounting

Shipping & Support

12-month warranty. Ships today via FedEx/UPS/DHL. Global delivery in 2-3 business days.

Technical FAQ

Q: What approvals does “05” option include?
A: ATEX, IECEx, and CSA for hazardous locations.

Q: Minimum installation clearance needed?
A: 8mm radial clearance around probe body.

Q: Cable replacement procedure?
A: Use ClickLoc tool – takes under 2 minutes.

Q: Vibration measurement range?
A: 0-5mm (0-200 mils) with linear output.
