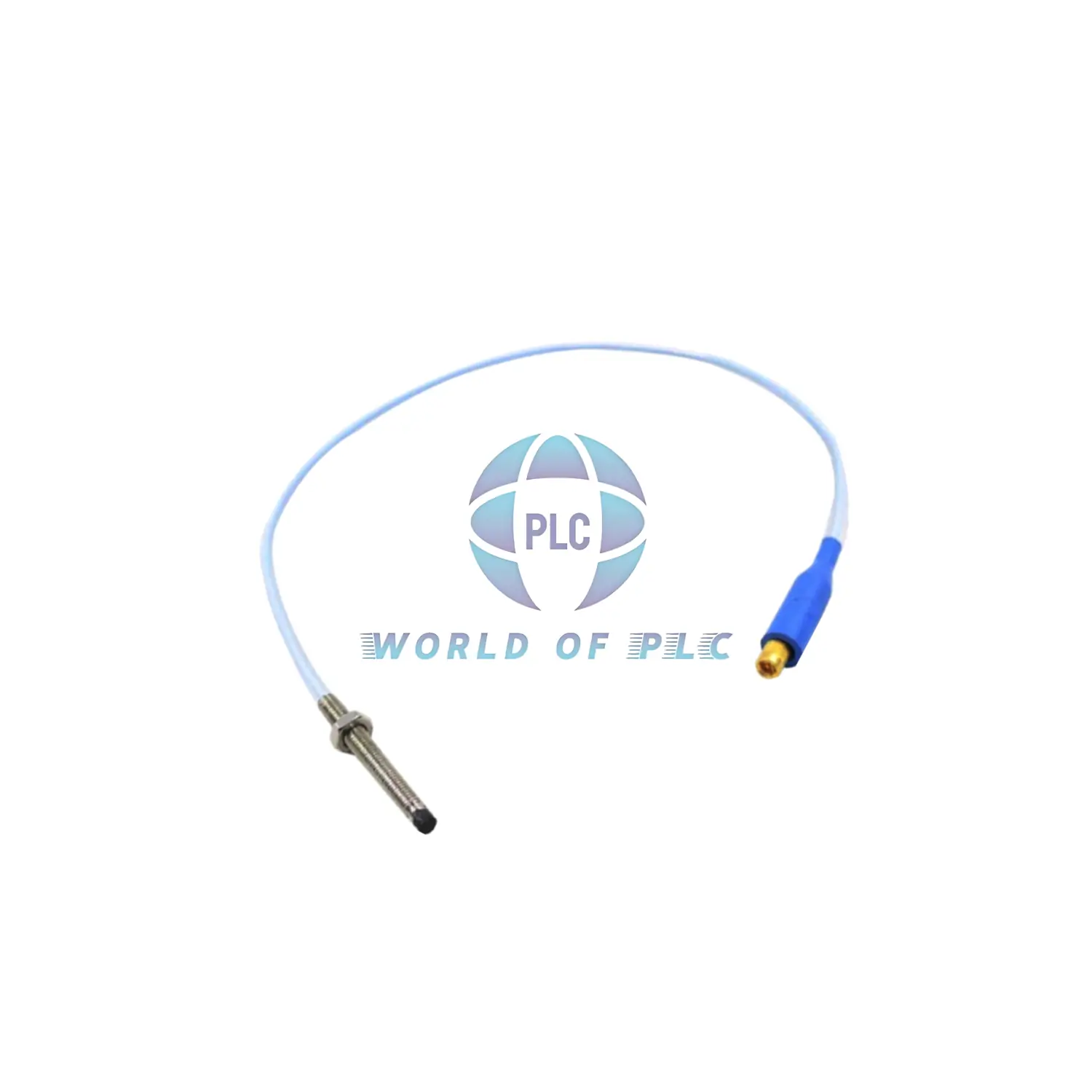

330901-00-12-10-11-05 3300 NSv Proximity Probe

Model Breakdown

• 330901: 3300 NSv Proximity Probe, 1/4-28 UNF thread, no armor
• 00: Unthreaded length = 0 inch
• 12: Overall case length = 1.2 inches
• 10: Total cable length = 1.0 meter (39 inches)
• 11: Mini ClickLoc connector with connector protector and FluidLoc cable
• 05: With multiple agency approvals

Key Specifications (330901-00-12-10-11-05 )

• Case Material: AISI 304 stainless steel
• Tip Material: PPS (Polyphenylene sulfide)
• Cable Type: 75-ohm coaxial, FEP-insulated
• DC Resistance: 4.2 ± 0.5 ohms (for 1.0 m cable)
• Weight: 14 to 150 grams (0.5 to 5.3 oz)
• Seal: Viton O-ring (not pressure tested before shipping)

Temperature Ratings

• Operating Range: -52°C to +177°C
• Storage Range: -52°C to +177°C
• Note: Avoid use below -34°C for long time to protect seal

Installation Info

• Thread Type: 1/4-28 UNF
• Max Thread Engagement: 0.375 inch
• Max Torque: 7.3 N·m (65 in·lb)
• Recommended Torque: 5.1 N·m (45 in·lb)
