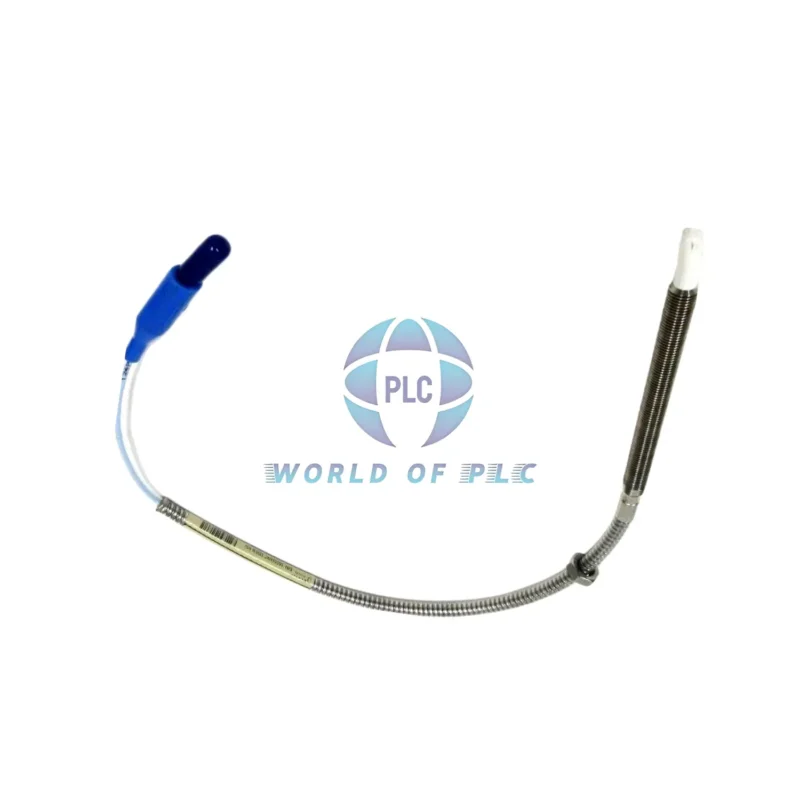

Bentley Nevada 6-Inch Vibration Probe with 7m Cable
Extended-reach industrial sensor for hard-to-access machinery. 6-inch case length with 7-meter cable for flexible installation in large equipment. Performs in extreme temperatures from -52°C to +177°C.
PRODUCT CONFIGURATION
| Full Model Number | 330909-00-60-70-02-00 |
| Unthreaded Length | 00 = 0.0 inch |
| Case Length | 60 = 6.0 inches |
| Cable Length | 70 = 7.0 meters |
| Connector Type | 02 = ClickLoc coaxial |
| Agency Approvals | 00 = None required |
TECHNICAL SPECIFICATIONS
| Electrical Resistance | 5.9Ω ±0.9Ω (7m cable) |
| Signal Type | 75Ω analog output |
| Response Time | <2 milliseconds |
| Cable Bend Radius | Minimum 50mm |
| Shock Resistance | 100g peak (11ms duration) |
INSTALLATION GUIDE
- Optimal mounting torque: 11.3 N•m (100 in•lb)
- Maximum thread depth: 0.563 inches
- Cable strain relief: Secure within 6 inches of probe
- Temperature warning: Avoid below -34°C for extended periods
SYSTEM COMPATIBILITY
Direct plug-in replacement for Bentley Nevada 3300 monitoring systems. Compatible with all 75Ω input vibration analyzers.
PACKAGE CONTENTS
- 330909-00-60-70-02-00 vibration probe
- 7-meter FEP-insulated cable
- ClickLoc connector assembly
- Installation instructions
SHIPPING & WARRANTY
- Worldwide delivery: FedEx, UPS, DHL
- Standard lead time: 24-48 hours
- 12-month product warranty
TECHNICAL FAQ
Q: Maximum cable length without signal loss?
A: Up to 10 meters with proper shielding
Q: Chemical resistance of PPS tip?
A: Resists acids, solvents and hydrocarbons below 150°C
Q: Vibration measurement range?
A: ±2mm displacement range
Q: Suitable for high-speed equipment?
A: Yes, accurate up to 15,000 RPM
SUPPORT DOCUMENTS
Full installation guide available for download:
Download Product Manual
