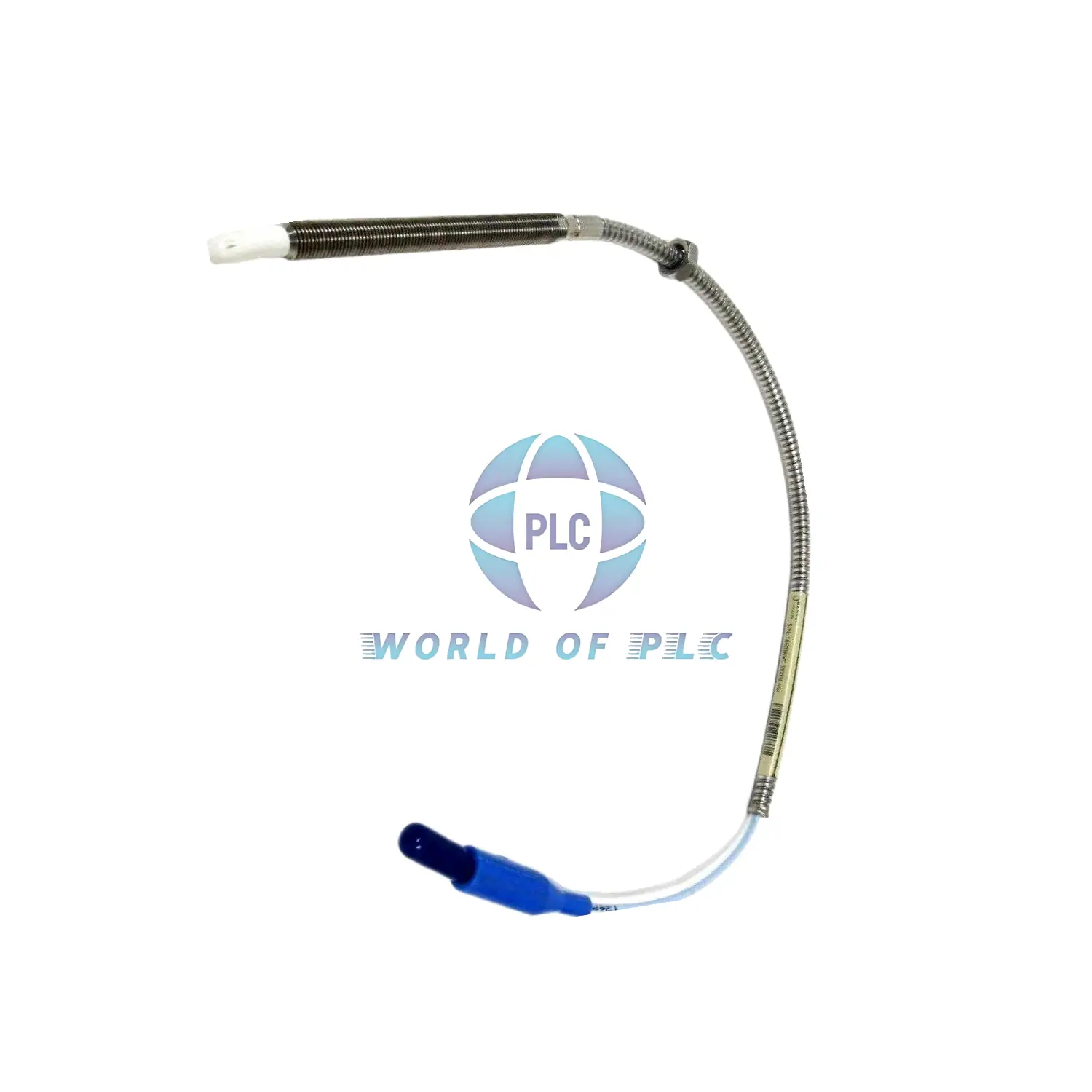

Bentley Nevada 2.8-Inch Probe with 7m Cable & Connector Guard
Compact vibration sensor with extended 7-meter cable and protective connector. Ideal for space-limited installations requiring long cable runs. Performs in extreme temperatures from -52°C to +177°C.
PRODUCT DETAILS
| Complete Model | 330909-00-28-70-01-00 |
| Case Length | 2.8 inches |
| Cable Length | 7.0 meters (23 feet) |
| Connector Type | ClickLoc with protector |
| Thread Design | 3/8-24 UNF armored |
TECHNICAL PERFORMANCE
| Electrical Resistance | 5.9Ω ±0.9Ω (7m) |
| Cable Insulation | FEP (Chemical-resistant) |
| Measurement Accuracy | ±1% full scale |
| Response Frequency | 0-10 kHz |
| Seal Material | Viton O-ring |
INSTALLATION GUIDE
- Recommended torque: 11.3 N•m (100 in•lb)
- Max thread depth: 0.563 inches
- Min operating temperature: -34°C continuous
- Use connector guard during installation
SYSTEM COMPATIBILITY
Works with Bentley Nevada 3300 monitoring systems and all 75Ω input vibration analyzers.
PACKAGE INCLUDES
- 330909-00-28-70-01-00 vibration probe
- 7-meter protected cable assembly
- Connector protector
- Installation sheet
SHIPPING & WARRANTY
- Global shipping: FedEx, UPS, DHL
- Delivery time: 2 business days
- 12-month warranty
FREQUENT QUESTIONS
Q: What’s the connector protector for?
A: Prevents damage during installation in tight spaces
Q: Minimum space required for installation?
A: 3.5 inches clearance from mounting surface
Q: Cable flexibility in cold environments?
A: Remains flexible down to -52°C
Q: Vibration range capability?
A: Measures up to ±2mm displacement
MANUAL DOWNLOAD
Complete installation guide available:
Download Product Manual
