With armor – 330902-00-15-10-02-05 3300 NSv Proximity Probes

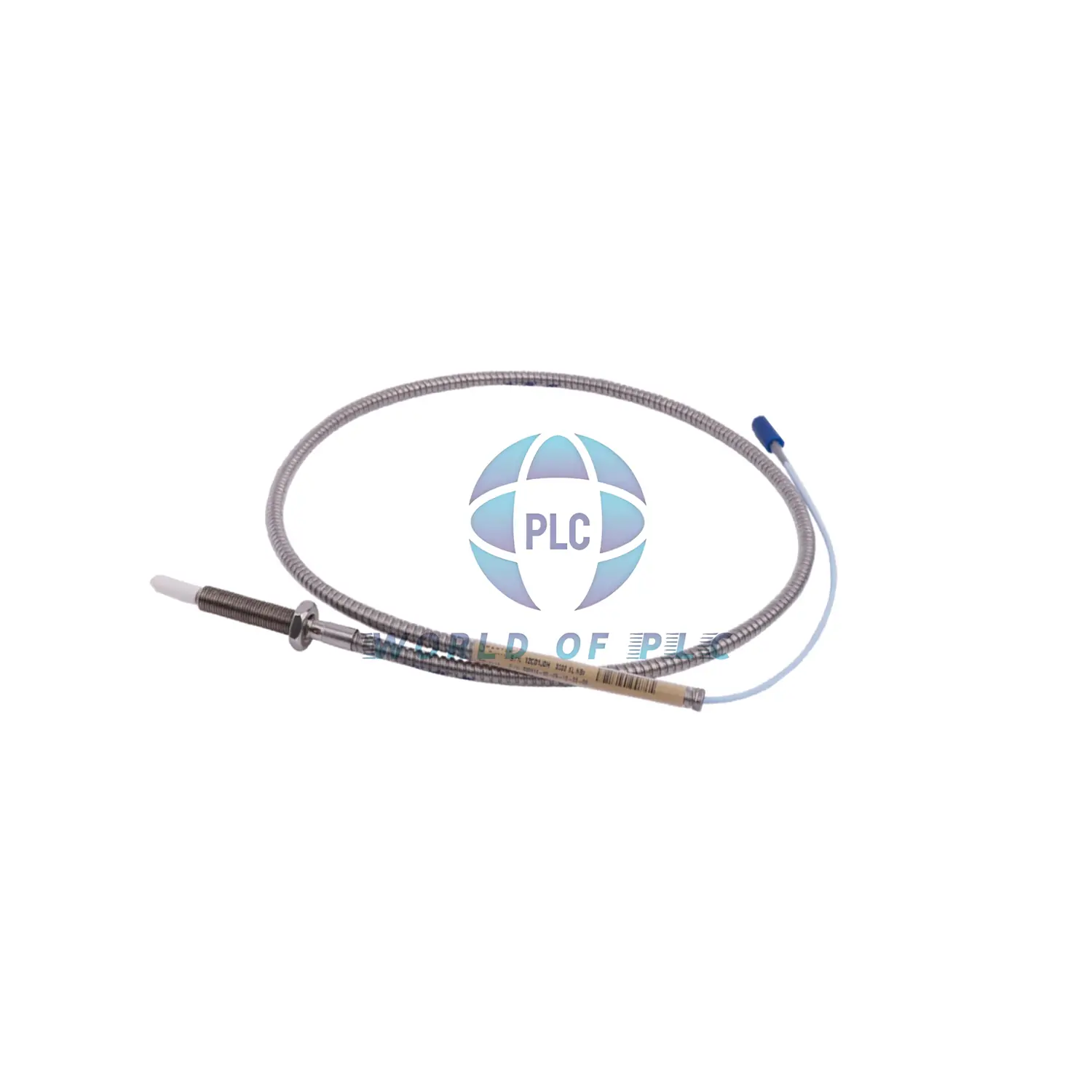

330902-00-15-10-02-05 | Bently Nevada 3300 NSv Proximity Probe with Armor

Product Summary

This is a 3300 NSv proximity probe made by Bently Nevada. The probe has a 1/4-28 UNF thread and comes with an armored 1.0-meter cable. It is ideal for small machines with tight spaces. The product is made in the USA and can work in very hot or cold areas.

Key Technical Data

• Thread Size: 1/4-28 UNF
• Unthreaded Section: 0.0 in
• Case Length: 1.5 in
• Cable Length: 1.0 m (39 in)
• Signal Output: 75 Ω coaxial
• Cable Type: FEP insulated, standard type
• Resistance: 4.2 ± 0.5 ohms (for 1.0 m cable)
• Connector: Miniature ClickLoc
• Operating Temperature: -52°C to +177°C
• Storage Temperature: -52°C to +177°C
• Seal: Viton O-ring (not pressure tested)
• Material: 304 Stainless Steel Case, PPS Tip
• Weight: 14 to 150 g

Full Model Breakdown (330902-00-15-10-02-05)

• 330902 = 3300 NSv probe with armor
• 00 = No unthreaded length
• 15 = 1.5-inch case
• 10 = 1.0-meter total cable
• 02 = Mini ClickLoc connector with standard cable
• 05 = Multiple agency approvals

Installation Guide

• Thread the probe into a 1/4-28 hole
• Do not exceed 0.375 in of thread depth
• Use 5.1 N·m torque when mounting
• Ensure connector is secured with protector

Shipping and Warranty

• Ships via FedEx, UPS, or DHL
• Processing time: 1 to 3 business days
• 12-month warranty included
• No certificate or document in the box
