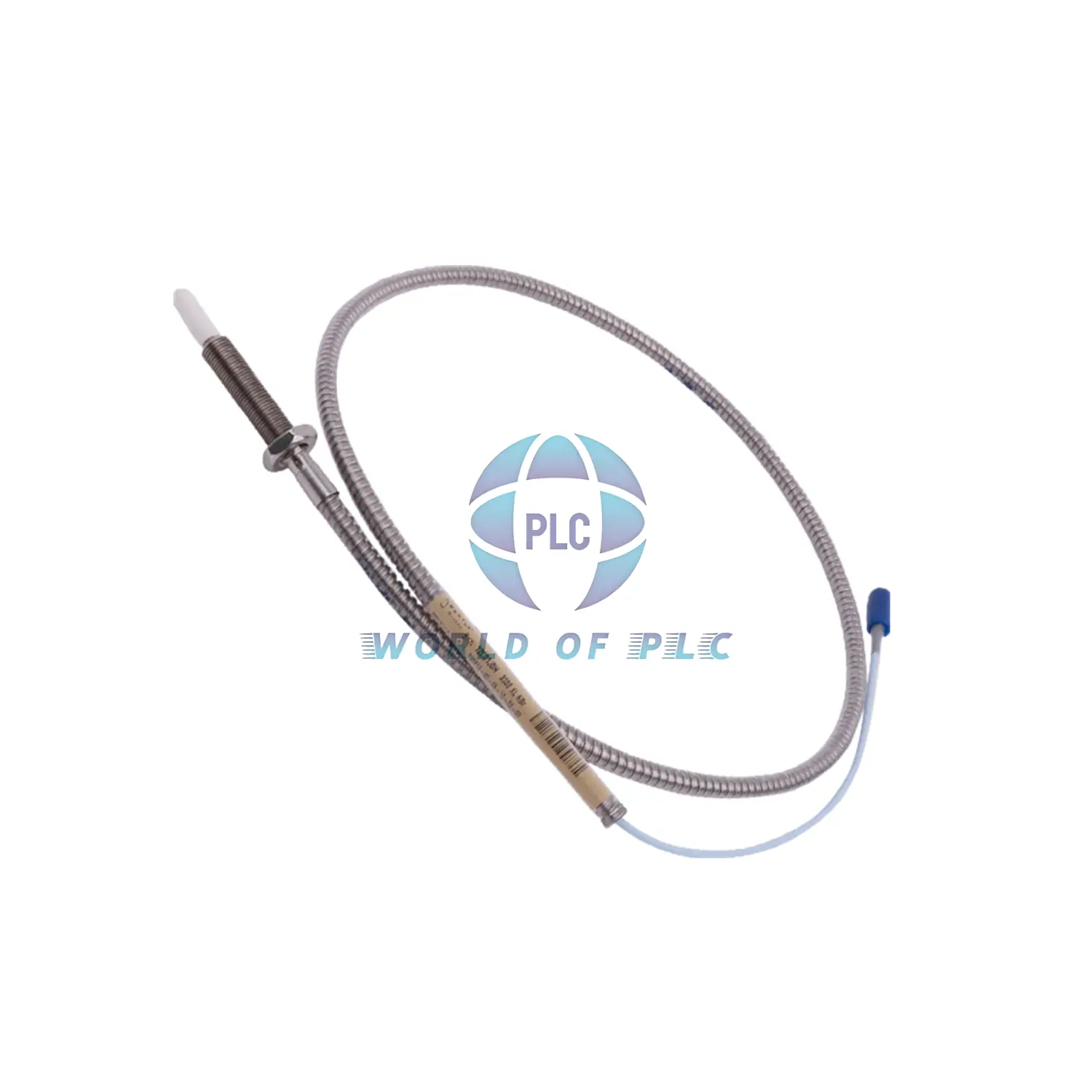

330902-00-40-05-01-CN | Bently Nevada 3300 NSv Proximity Probe with Armor
Product Overview
The Bently Nevada 330902-00-40-05-01-CN is a 3300 NSv proximity probe. It is used in tight spaces to measure vibration or movement. This model has a 1/4-28 UNF thread and a strong armored cable. It is made in the USA and works well in hot or cold areas.
Main Features
- Thread Size: 1/4-28 UNF
- Unthreaded Section: 0.0 in
- Case Length: 4 in
- Cable Length: 0.5 m (20 in)
- Signal Type: 75 Ω coaxial
- Connector: Mini ClickLoc with protector
- Case Material: 304 stainless steel
- Tip Material: PPS plastic
- Working Temperature: -52°C to +177°C
- Storage Temperature: -52°C to +177°C
- Resistance (0.5 m): 4.0 ± 0.5 ohms
- Recommended Torque: 5.1 N·m
- Seal Type: Viton O-ring
- Weight: 14 to 150 g
Model Code Details
- 330902: NSv probe with armor
- 00: No unthreaded part
- 40: 4-inch case
- 05: 0.5-meter cable
- 01: Mini ClickLoc, standard cable
- CN: Country-specific approval
How to Install
- Thread size must be 1/4-28 UNF
- Tighten to 5.1 N·m (do not over-tighten)
- Do not exceed 0.375 in of thread depth
- Keep the connector cap in place during use
Device Compatibility
- Fits 3300 NSv Extension Cables
- Use with 3300 NSv Proximitor Sensors
Shipping and Warranty
- Ships with FedEx, UPS, or DHL
- Handling time: 1 to 3 working days
- 12-month warranty included
