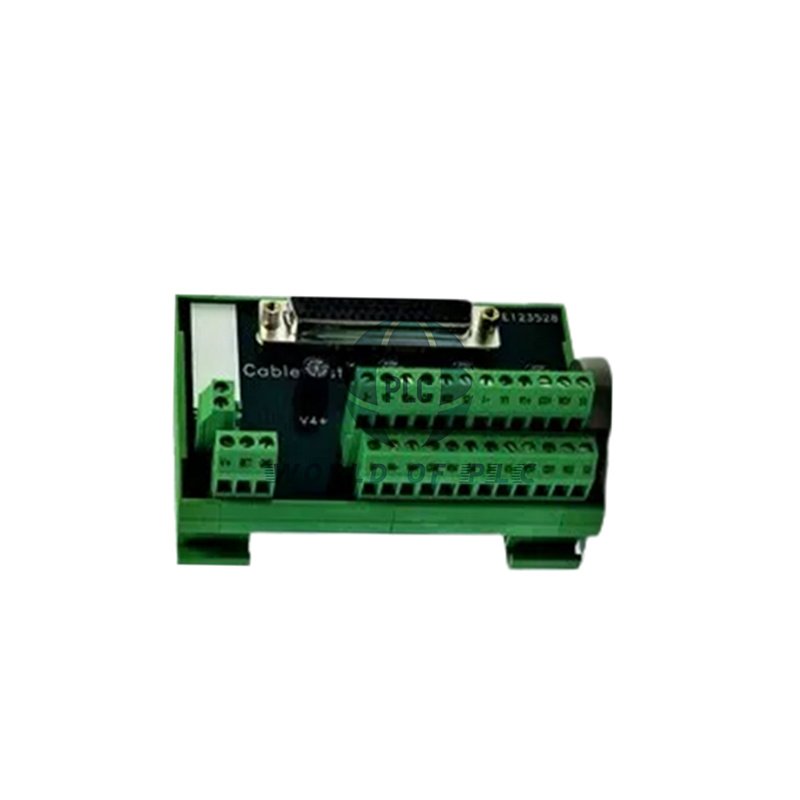

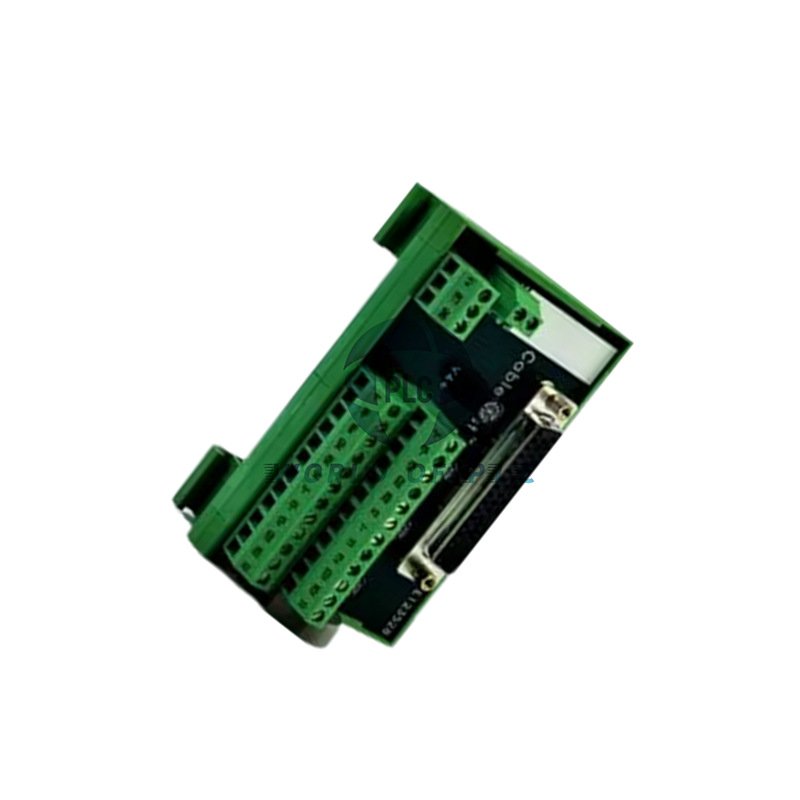

Schneider Electric Quantum – Analog Output Block | 4-Channel 140CFK00400

Advanced Output Connection: Schneider Electric 140CFK00400 Terminal Block

Premium Analog Output Solution

• The 140CFK00400 provides superior wiring for analog outputs.
• This Schneider Electric block features six terminals per connection point.
• It delivers clean signal transmission for output modules.
• You get comprehensive interface options for complex wiring.
• The block supports both field and loop power configurations.
• It works perfectly with Modicon Quantum analog output modules.
• The non-fused design ensures direct signal paths.

Technical Specifications

• Brand: Schneider Electric
• Model: 140CFK00400
• Product Type: Analog Output Terminal Block
• Connection Points: 4 output channels
• Terminals Per Point: 6 dedicated terminals
• Fuse Protection: No internal fuses
• Connector Type: 50-position SUB-D female
• Mounting System: 35mm DIN rail standard
• Wire Range: 12-24 AWG compatible
• Voltage Rating: 300V AC/DC maximum
• Current Capacity: 10 amps per terminal
• Temperature Range: -40°C to +105°C
• Contact Material: Tin-plated copper alloy
• Screw Design: Captive screw terminals
• Insulation: High-grade thermoplastic

Compatible Output Modules

• 140AVO02000 analog voltage output
• 140ACO02000 analog current output
• Perfect for control signal outputs
• Ideal for actuator control systems
• Maintains output signal integrity

Installation Features

• Easy DIN rail mounting system
• Clear channel identification
• Six terminals per output point
• Dual power configuration support
• No fuse replacement needed
• Secure captive screw design
• Compact footprint design

Connection Capabilities

• Field power supply interfaces
• Loop power supply terminals
• Signal output plus connections
• Signal output minus connections
• Shield ground connections
• Additional auxiliary terminals
• Flexible wiring arrangements

Shipping & Delivery

• Single unit packaging
• Package weight: 363 grams
• Package size: 26.5cm × 18cm × 10.5cm
• FedEx, UPS, DHL shipping
• 12 month warranty coverage
• Fast delivery options
• Real-time tracking available

Expert Technical Questions

• Why six terminals per output point?
• Multiple terminals allow complex output wiring and monitoring connections.
• What output modules work with this block?
• 140AVO02000 voltage output and 140ACO02000 current output modules.
• Does this block include fuse protection?
• No, this is a non-fused block for direct output connections.
• What are the six terminals used for?
• Output signal, power supply, shield, and auxiliary connections.
• Can I return this product if needed?
• Yes, this product has returnability for customer convenience.
