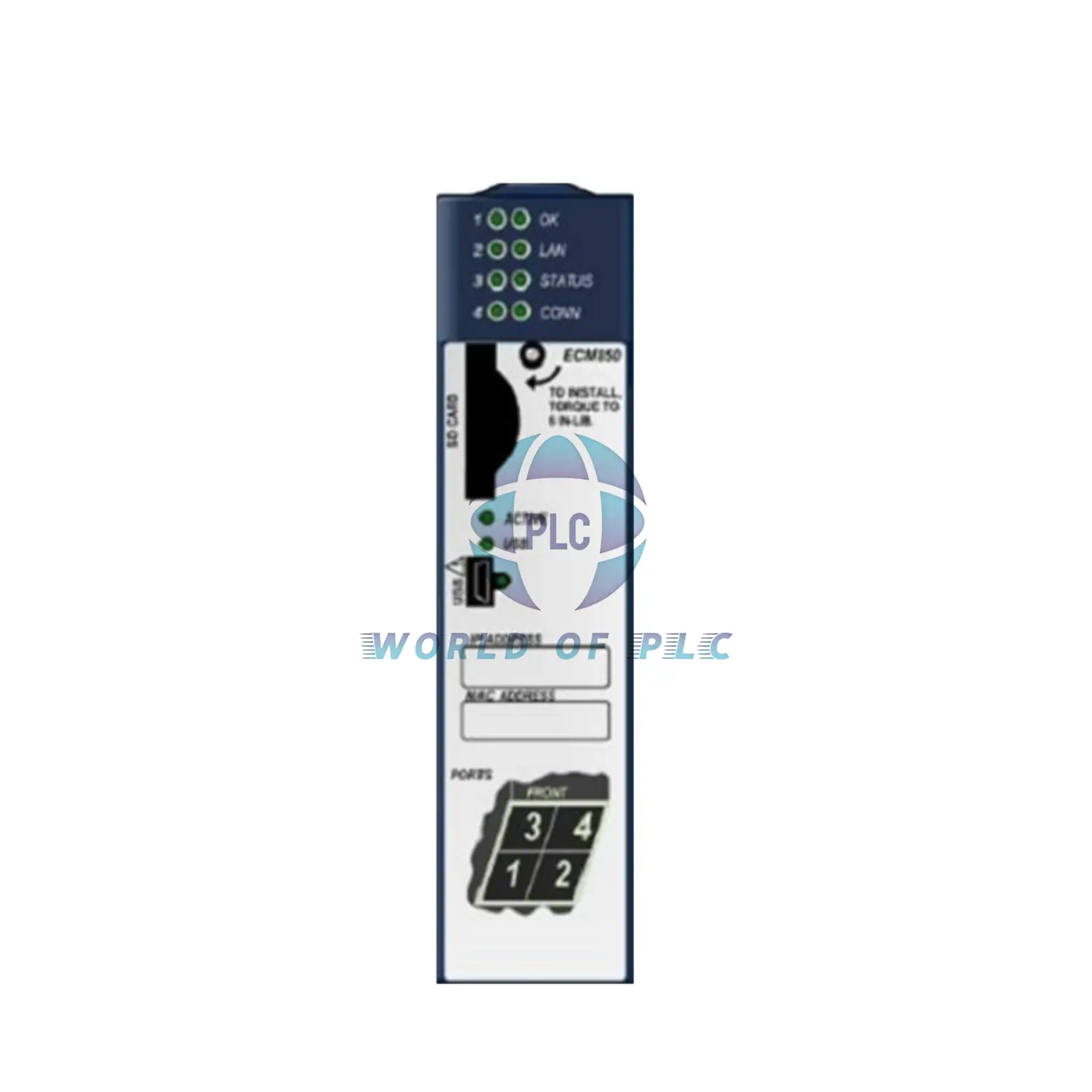

IC695ECM850 GE Fanuc RX3i PACSystem Ethernet Communication Module

Emerson IC695ECM850 IEC 61850 Gateway for RX3i Systems

Connect Substations Seamlessly

4-port industrial Ethernet module bridges RX3i PLCs with IEC 61850 networks. Made by Emerson Automation. Enables real-time communication with protection relays and smart breakers. Hot-swappable design.

Critical Performance

• 1 Gbps speed on all ports
• Dual media options: Copper + Fiber (SFP)
• 5 MAC addresses per module
• Only 1.2A power draw (3.3V)
• Works in extreme temps: 0°C to 60°C

Technical Specifications

Installation Made Easy

1. Insert into RX3i main rack (firmware 8.05+)
2. Connect devices: RJ45 for copper, SFP for fiber
3. Configure in Proficy Machine Edition 8.0 SIM7+
4. Use mini USB for CLI setup

Compatibility

Package Includes

• IC695ECM850 Module
• Documentation pack

Shipping & Warranty

• Delivery: FedEx, UPS, DHL (2-5 days)
• Warranty: 12 months

FAQs

Q: Maximum fiber distance?
A: 10 km with single-mode SFP

Q: Can I use all 4 ports simultaneously?
A: Yes! Mix copper and fiber connections.

Q: Temp limits with SFP modules?
A: Derates to 57°C at full load.
