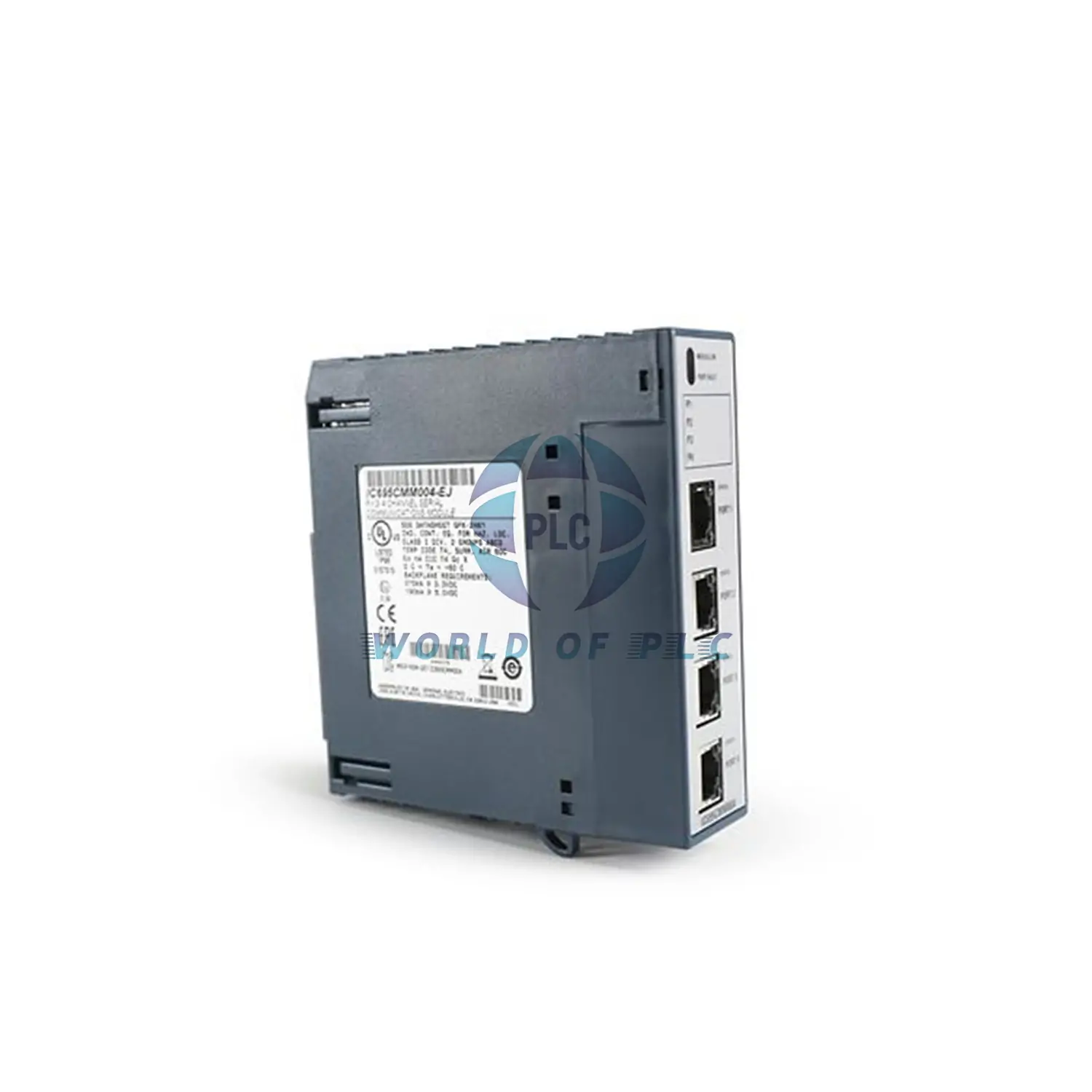

IC695CMM004 GE Fanuc PACSystem RX3i Communication Module

Emerson IC695CMM004: 4-Port RX3i Serial Powerhouse

Connect any industrial device with this PACSystems module. Four independent RJ-45 ports handle RS232/RS485 communication at blazing 115.2K baud speeds. Perfect for modern automation systems.

Essential Specifications

• Brand: Emerson (ex-GE Intelligent Platforms)
• Model: IC695CMM004
• Ports: 4 RJ-45 (all configurable)
• Isolation:
  • 500VDC continuous (port-to-port)
  • 250VAC continuous (port-to-ground)
• Protocols: Modbus Master/Slave, DNP3 Master/Slave, CCM, Serial I/O

Communication Superpowers

• Baud Rates: 1200 to 115,200 bps
• Wiring Modes:
  • 2-wire half-duplex (RS485)
  • 4-wire full-duplex (RS422)
  • Point-to-point (RS232)
• Data Settings:
  • 7/8 data bits
  • 1/2 stop bits
  • Even/Odd/None parity

Diagnostics & Safety

• LED Indicators:
  • Module OK (green)
  • Port Fault (red)
  • Port Status (activity)
• Error Codes:
  • 1 blink: Watchdog expired
  • 2 blinks: RAM error
  • 6 blinks: Bad CPU config
• ATEX certified for hazardous areas

Power & Environment

• Voltage: 3.3VDC (700mA) / 5VDC (150mA)
• Temperature: 0°C to 60°C (32°F to 140°F)
• Max Modules/Rack: 6 (24 ports total)

Installation Notes

• Custom cables required for Modbus
• Power OFF in hazardous locations
• Firmware upgradeable (Kit 44A753278-G06)

Package & Support

• New module in sealed packaging
• 12-month warranty
• Shipped via FedEx/UPS/DHL (2-5 days)

FAQ

Q: Can all 4 ports run different protocols?
A: Yes! Each port operates independently.

Q: What’s the maximum cable length?
A: 1200m for RS485 at 115.2K baud.

Q: Is it compatible with old GE systems?
A: Fully compatible with PACSystems RX3i.
