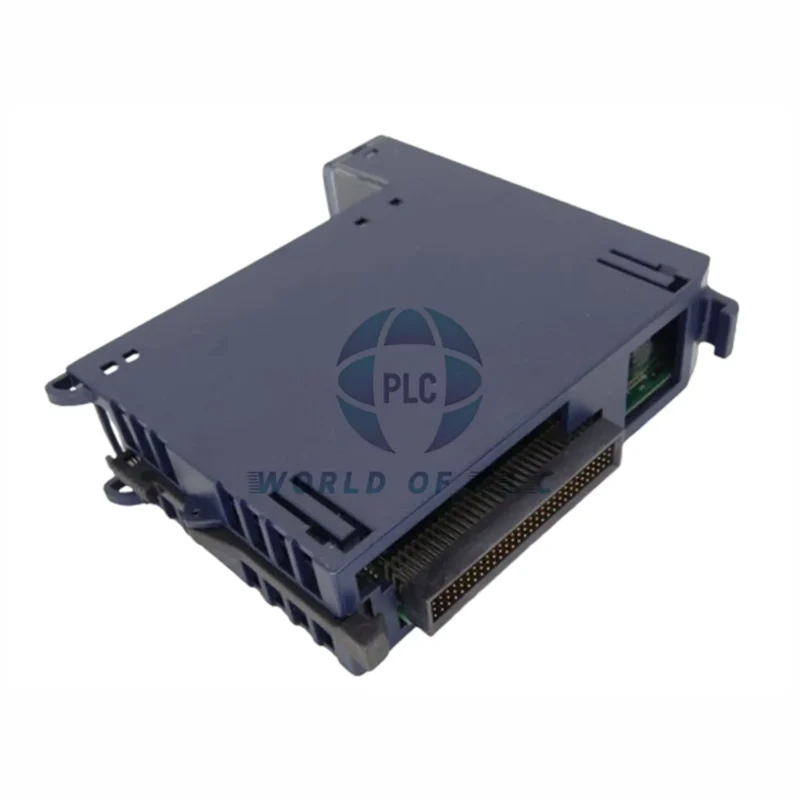

IC695ALG808: High-Density 8-Channel Isolated Output Module
⚡ Power Your Control Systems
This 8-channel isolated analog module (formerly GE IP, now Emerson) delivers precision signals for industrial automation. Perfect for controlling motors, valves, and critical processes.
📊 Key Specifications
| Brand/Model | GE Fanuc IC695ALG808 |
| Output Signals | ±10VDC, 0-10VDC, 0-20mA, 4-20mA |
| Isolation Strength | 2550VDC (field to backplane) |
| Response Time | 2ms (95% signal change) |
| Power Consumption | 7.25W max at 24VDC |
🔧 Quick-Start Guide
- Mounting: Fits RX3i universal backplane (single slot)
- Power: Connect 24VDC external supply (19.2-30V) to terminals
- Wiring: Use spring-clamp (IC694TBS032) or screw terminals (IC694TBB132)
- Tip: Allow 50mm clearance for heat dissipation
📦 What You Receive
- IC695ALG808 module (1 unit)
- Installation guide
- Mounting hardware
- Warranty: 12 months
- Shipping: FedEx/UPS/DHL (global)
❓ Common Questions
Q: Can I use one power supply for multiple modules?
A: Yes, if rated for ≥600mA per module at 24VDC.
Q: How to configure voltage/current outputs?
A: Set in software – no physical jumpers needed.
Q: Maximum wire distance?
A: 500m for current signals, 50m for voltage.
Q: Operating temperature range?
A: -40°C to +70°C (industrial grade)
