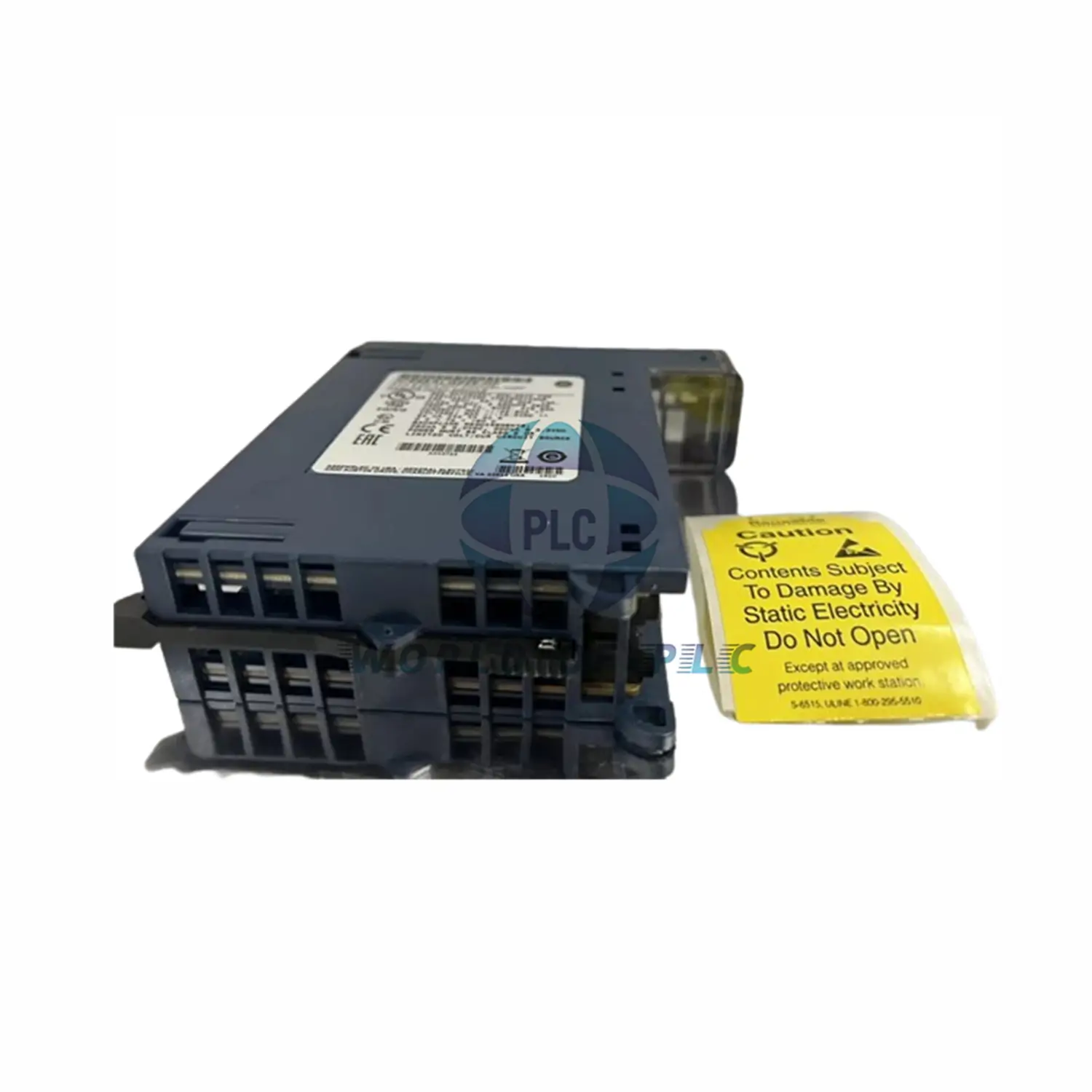

IC695ALG626 GE Fanuc PACSystems RX3i Analog Input Module

IC695ALG626 RX3i HART Analog Input Module – Smart Instrument Integration

16-channel HART-enabled input with 24-bit precision. Supports 4-20mA with HART 5.0 protocol for bidirectional communication. Perfect for advanced process monitoring.

Core Specifications

• Brand: GE IP (Emerson)
• Model: IC695ALG626
• Series: PACSystem RX3i
• Channels: 16 single-ended or 8 differential
• HART Support: Version 5.0 on all channels
• Resolution: 24-bit ADC
• Sampling Rate: 500S/s aggregate

HART Protocol Features

• 4 internal HART modems
• Bi-directional device communication
• Remote configuration of field instruments
• Diagnostic data retrieval
• Requires 4-20mA current range

Signal Performance

• Voltage Ranges: ±10V, 0-10V, ±5V, 0-5V, 1-5V
• Current Ranges: 0-20mA, 4-20mA, ±20mA
• Accuracy: ±0.03% of reading @25°C
• CMRR: >100dB @ 50/60Hz

Installation Guide

• Hot-swappable in RX3i Universal Backplane
• Use shielded twisted-pair cables for HART signals
• Max loop resistance: 600Ω per channel
• Terminal blocks: IC694TBS132 (recommended)

Diagnostics & Alarms

• LED Indicators:
  • Module OK (green)
  • Field Status (green/yellow)
  • TB Status (red/green)
• HART device diagnostics
• Open wire detection (<1s)
• Configurable scaling/offsets per channel

Package Contents

• IC695ALG626 HART Input Module
• HART configuration guide

Shipping & Warranty

• Delivery: FedEx | UPS | DHL (global priority)
• Warranty: 12 months

Frequently Asked

Q: Can I use HART with voltage signals?
A: No – HART requires 4-20mA current signals.

Q: How many HART devices per channel?
A: Supports 1 HART device per channel with multidrop capability.

Q: Minimum loop resistance?
A: Minimum 250Ω required for proper HART communication.
