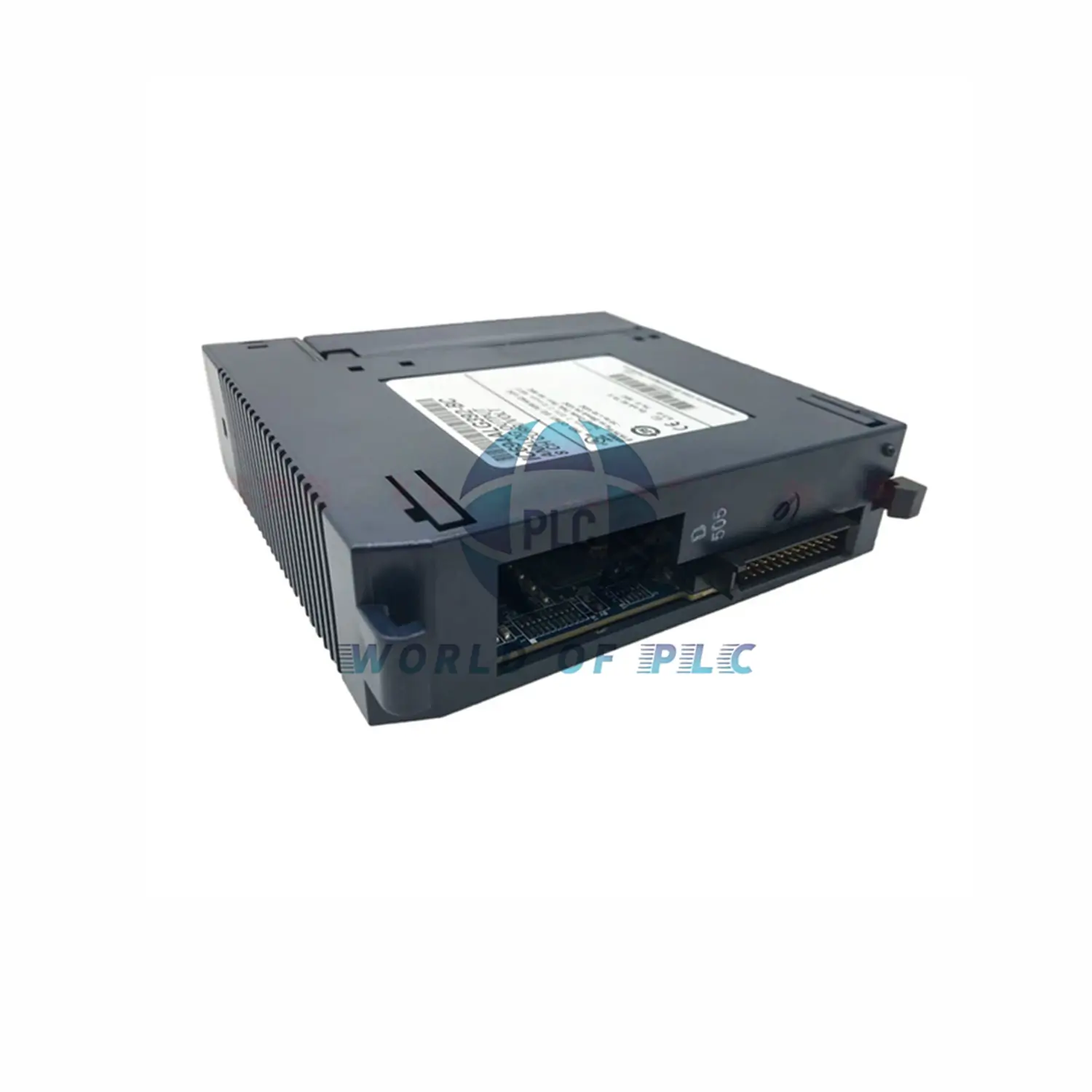

IC694ALG223: High-Density Analog Input Module for Industrial Automation
Formerly GE Fanuc, now Emerson Automation, this 16-channel PACSystems RX3i module processes analog signals with 12-bit precision and 13ms conversion. Ideal for transmitters, transducers, and real-time monitoring in harsh environments.
Technical Specifications
| Brand: | Emerson (ex-GE Fanuc) |
| Model: | IC694ALG223 |
| Channels: | 16 single-ended |
| Input Ranges: | 0-20mA, 4-20mA (Normal/Enhanced) |
| Resolution: | 4μA/bit (4-20mA), 5μA/bit (0-20mA/Enhanced) |
| Accuracy: | ±0.25% @25°C |
| Update Rate: | 13ms |
| Power: | 120mA @5VDC + 65mA @24VDC external |
| Operating Temp: | 0°C to 60°C |
Compatibility
Works with PACSystems RX3i/RX7i controllers. Compatible with Series 90-30 PLCs with serial connector.
Packaging
- 1x IC694ALG223 module
- Installation manual
- ESD-safe packaging
Shipping
FedEx | UPS | DHL – Global delivery in 3-5 business days
FAQ
Q: Does enhanced 4-20mA mode improve accuracy?
A: Enhanced mode enables open-circuit detection without changing resolution (5μA/bit).
Q: Can I mix input types?
A: Yes! Each channel is individually configurable for different ranges.
Q: Is external power mandatory?
A: Required for sensor loops – 24VDC ±10% (min. 65mA capacity).
