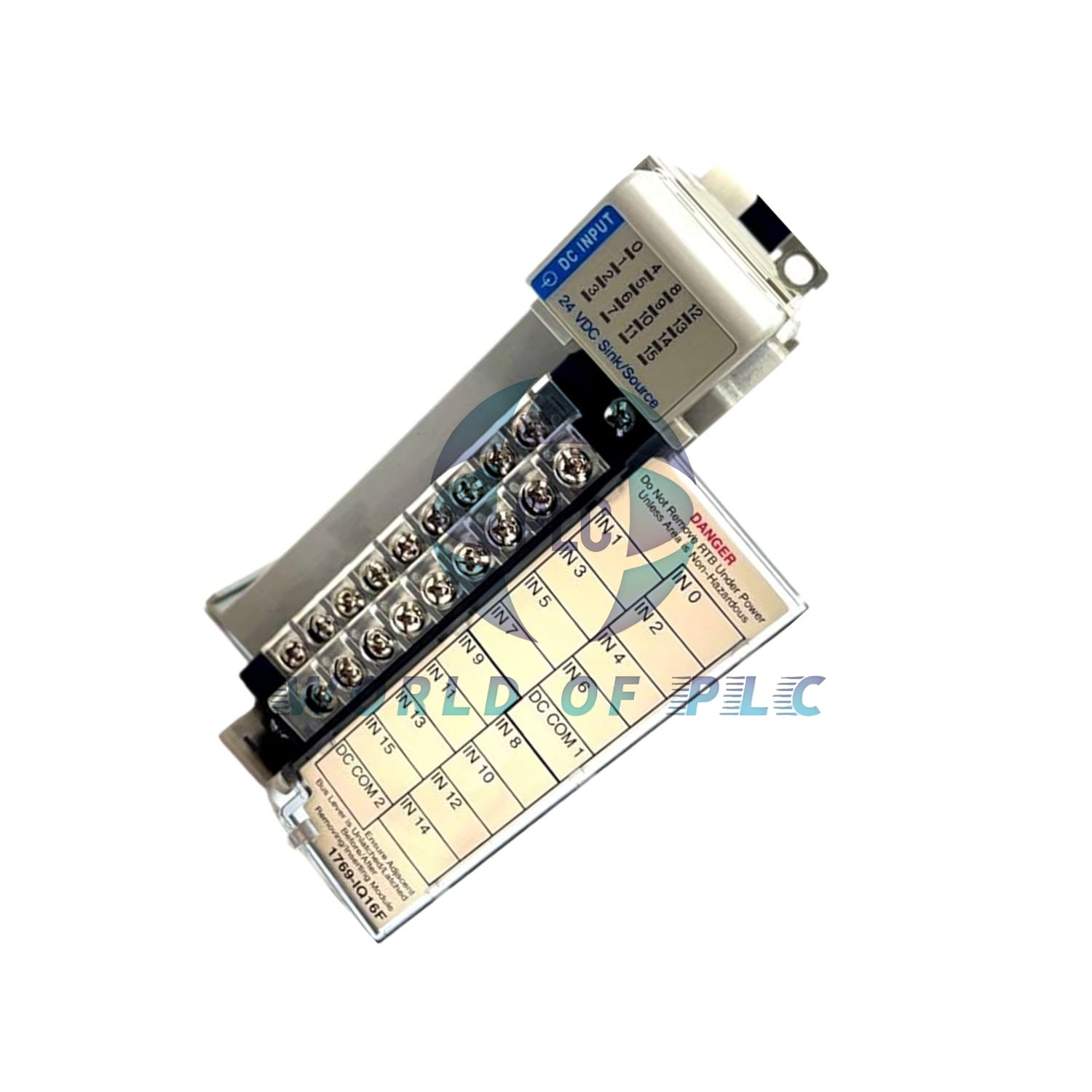

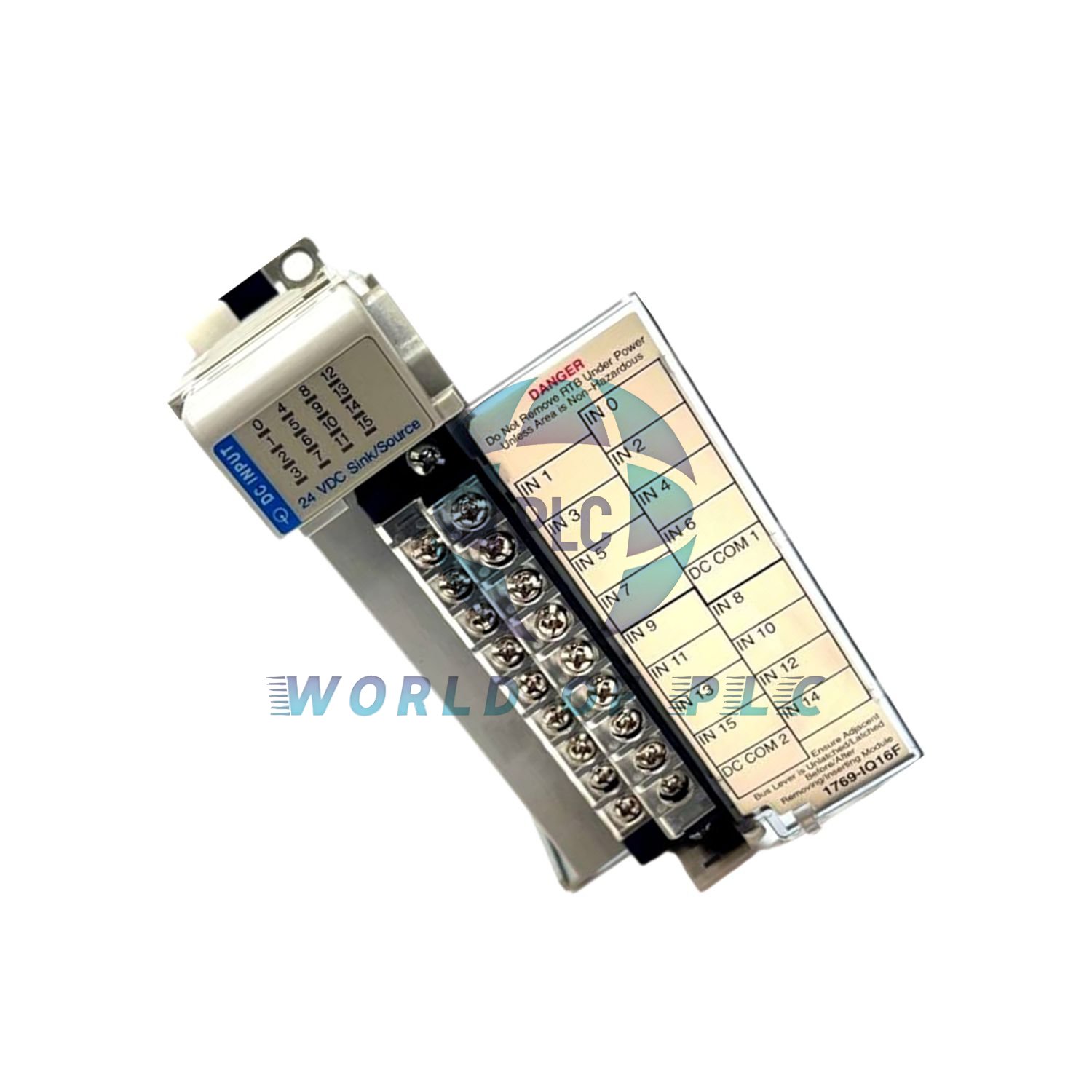

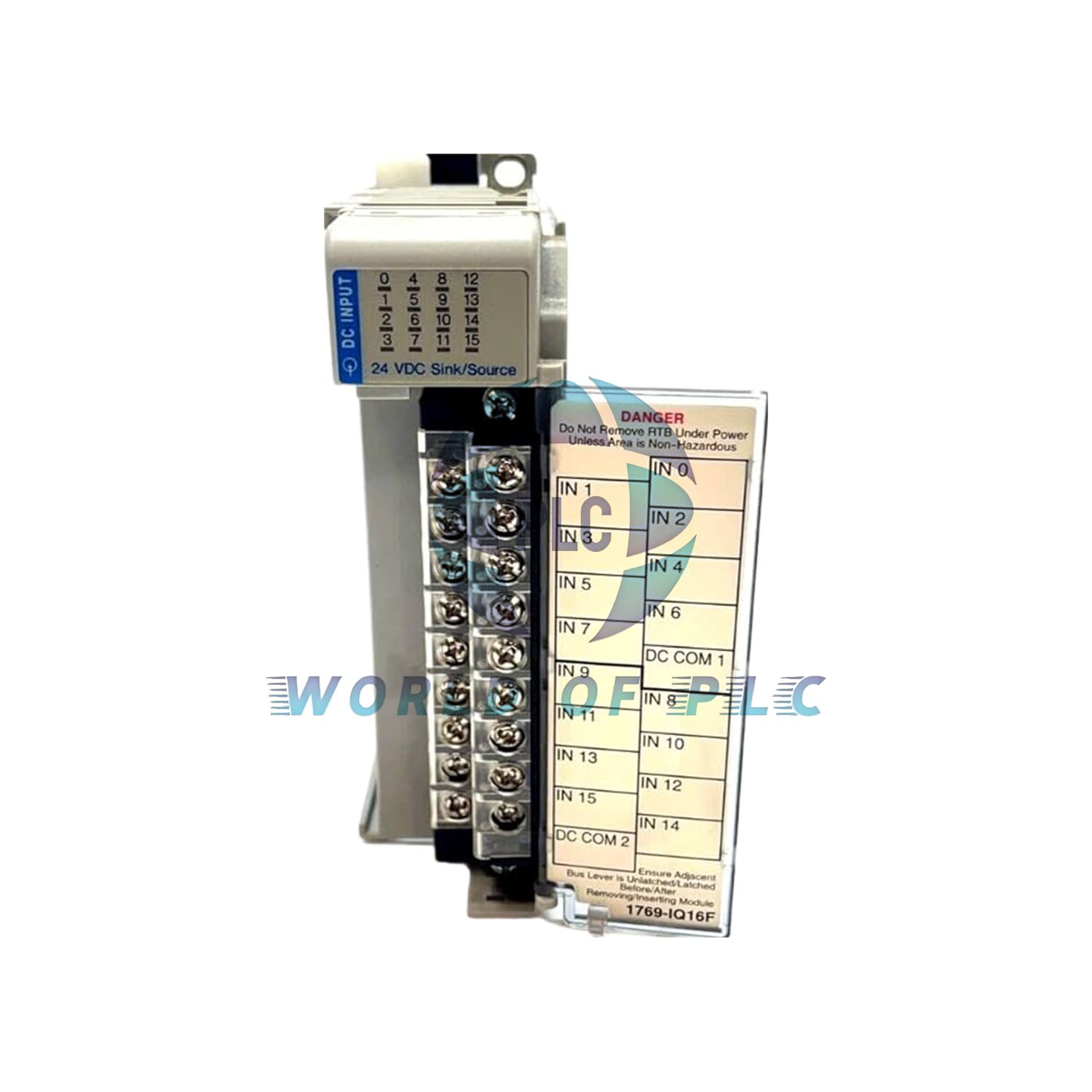

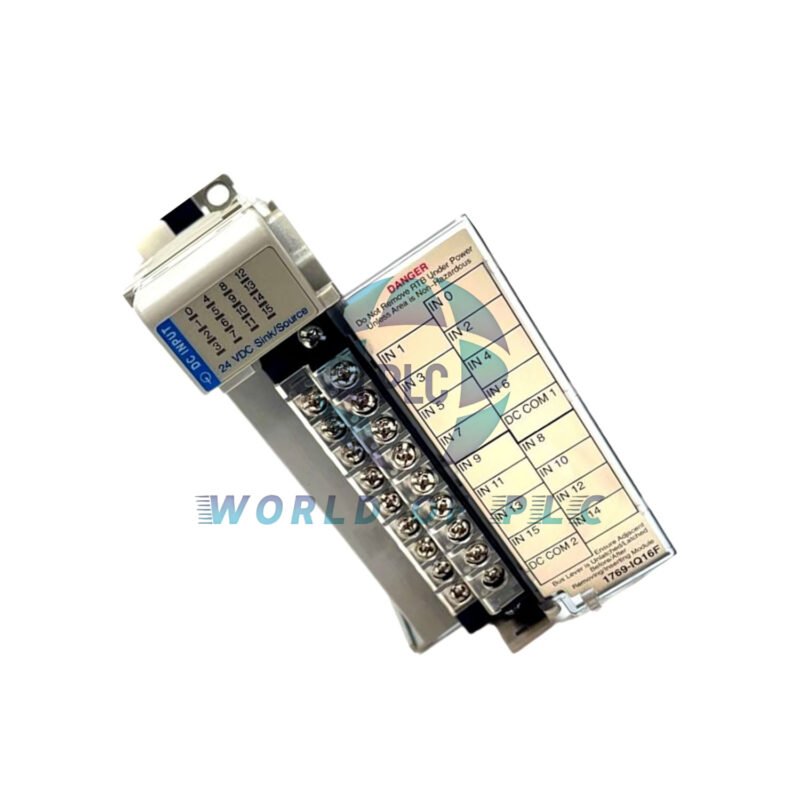

16-Channel High-Speed DC Input Module for Precision Control
The Allen-Bradley 1769-IQ16F delivers lightning-fast response times for critical automation applications. This versatile module works with both sink and source inputs, making it ideal for high-speed counting and event detection in CompactLogix systems.
Key Benefits
- 16 high-speed inputs – configurable as sink or source
- Ultra-fast 0-2ms response time
- Wide voltage range: 10-30V DC
- Programmable digital filtering
- Compact design saves panel space
Technical Specifications
- Brand: Allen-Bradley
- Model: 1769-IQ16F (Series A/B)
- Input Type: 24V DC digital
- Voltage Range: 10-30V DC (30°C), 10-26.4V DC (60°C)
- Response Time: 0-2ms (configurable)
- Isolation: 1679V DC tested
- Current Draw: 110mA @ 5.1V DC
- Operating Temp: 0°C to 60°C (32°F to 140°F)
- Wire Size: 22-14 AWG
- Power Consumption: 3.55W max
Easy Installation
- Max 8 modules from power supply
- Simple DIN rail mounting
- Removable terminal block
- Clear status indicators
System Compatibility
Works with:
CompactLogix controllers and
MicroLogix systems
Package Includes
- 1769-IQ16F module
- Terminal block
- Mounting hardware
- Quick-start guide
Warranty & Shipping
12-month product warranty. Fast worldwide shipping via FedEx, UPS, or DHL.
Expert FAQs
- Q: What makes this module “high-speed”?
A: Configurable 0-2ms response time vs. standard 20ms modules. - Q: Can I use both sink and source inputs together?
A: Yes! Each input works with either type. - Q: How does the digital filter work?
A: Programmable 0-500ms filtering to ignore noise. - Q: Is it good for encoder inputs?
A: Perfect for high-speed counting applications. - Q: What’s the maximum wire length?
A: 100m (328ft) with proper shielding.
Get Complete Documentation
- Download wiring diagrams
- Access configuration examples
- View full specifications:
Download Product Manual (PDF)
