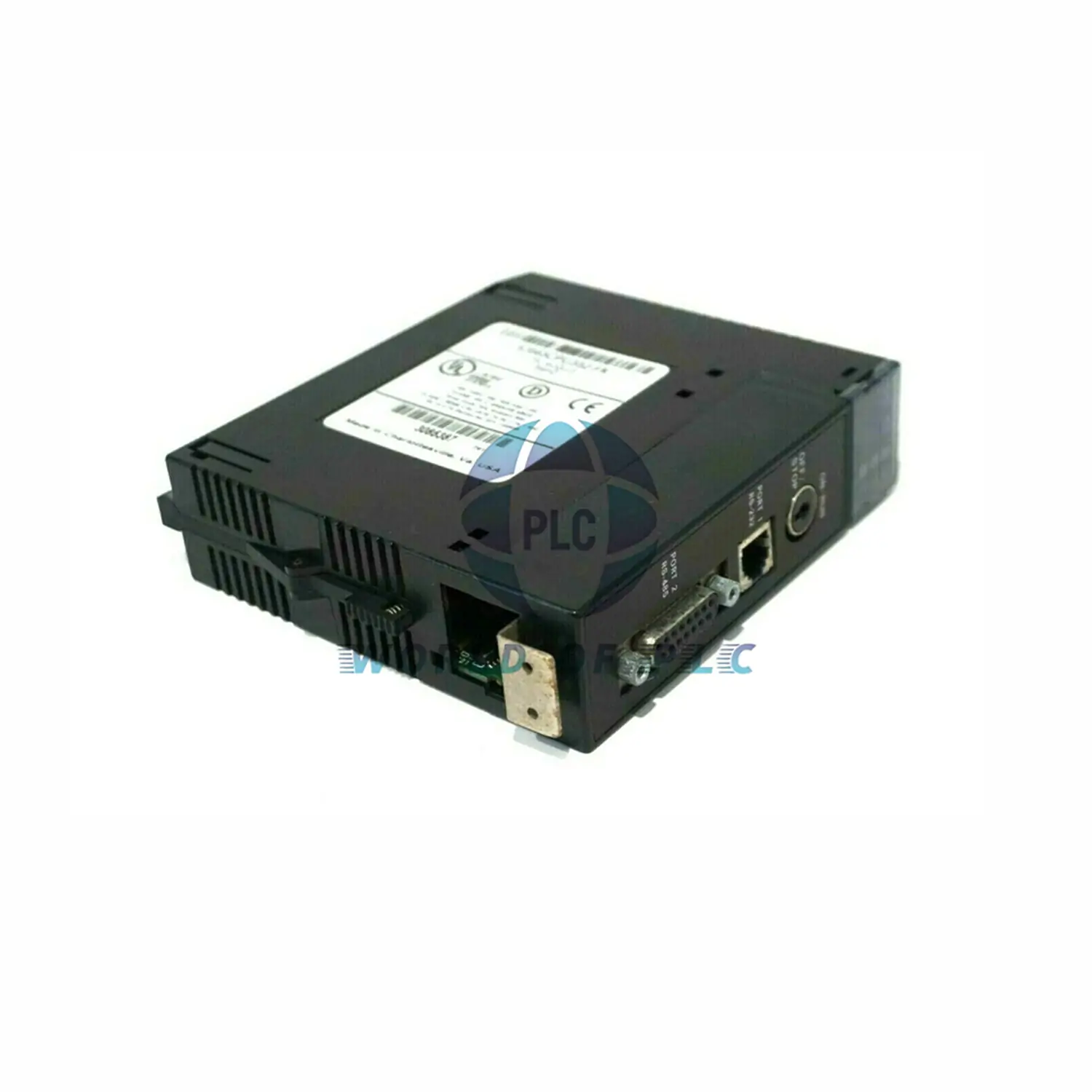

IC693CPU352 GE Fanuc Series 90-30 CPU Module
🔍 Description
This single-slot CPU module powers GE Fanuc’s Series 90-30 PLC systems. Features an 80386EX 25MHz processor with built-in math co-processor for floating-point operations. Supports 7 expansion baseplates and integrates 3 serial ports for flexible communication.
⚙️ Technical Data
- Brand: GE Fanuc
- Model: IC693CPU352
- Series: Series 90-30
- Processor: 80386EX @ 25MHz
- Memory: 240KB (Firmware ≥9.0) / 80KB (Firmware <9.0)
- Scan Rate: 0.22ms per 1K Boolean logic
- I/O Capacity:
- 2048 Discrete Inputs/Outputs
- 32,640 Analog Inputs/Outputs (max)
- Serial Ports: 3 (SNP/SNP-X Slave, RTU Slave, Master/Slave support)
- Power: 5V DC @ 910mA
- Operating Temp: 0°C to 60°C
🔧 Installation Guide
- Mount in CPU baseplate (single slot)
- Connect ≤7 expansion/remote I/O baseplates
- Use Port 1 (RJ45) for firmware updates
- Set RUN/STOP via front key switch
🛠️ Diagnostics & Maintenance
- LED Indicators: SNR, Port 1, Port 2 status
- Use LogixMaster/VersaPro/Proficy ME software
- Check shield ground connection (bottom)
- Monitor heat dissipation: 4.55W max
📦 Packing List
- IC693CPU352 Module
- Installation manual
- Static-proof bag
🚚 Shipping Methods
Global delivery via FedEx, UPS, DHL. Tracking provided.
🏭 Industry Applications
- Manufacturing: PID control for precision machinery
- Energy: SCADA system data acquisition
- Water Treatment: Analog sensor monitoring
❓ FAQ
Q: Does it support RTU Master protocol?
A: Requires additional PCM module.
Q: Memory allocation for analog I/O?
A: Dedicated from user memory (max 240KB).
Q: Compatible software?
A: LogixMaster 90-30, VersaPro, Proficy ME.
