GE Fanuc PACSystems Rx3i IC695ALG628 Analog Input Module

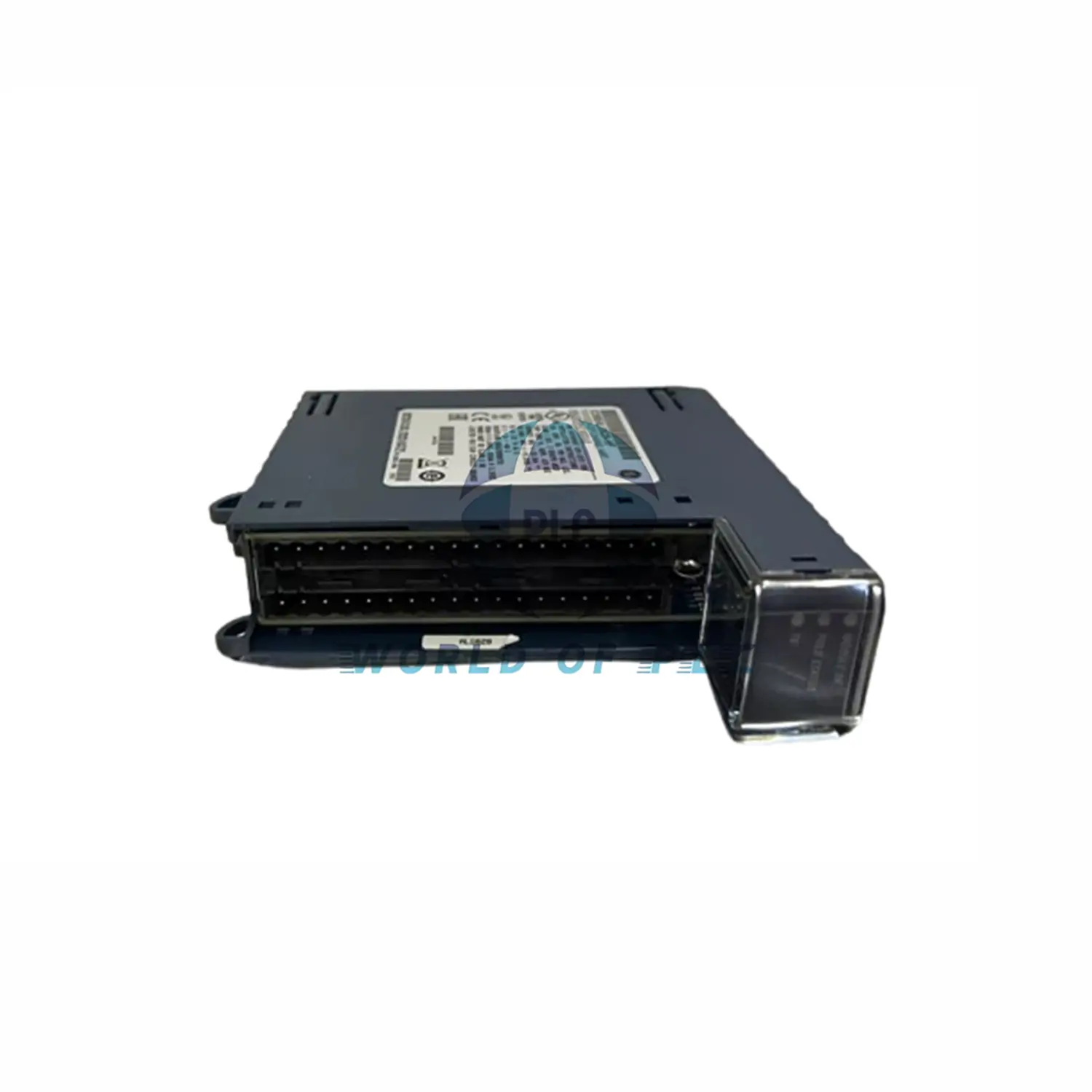

IC695ALG628 PACSystem RX3i HART Analog Input Module

Advanced 8-channel analog input module with HART 5.0 communication for industrial process control. Supports voltage/current signals with dual internal modems.

Technical Specifications

• Brand: Emerson (ex GE Fanuc)
• Model: IC695ALG628
• Voltage Inputs: ±10VDC, 0-10VDC, ±5VDC, 0-5VDC, 1-5VDC
• Current Inputs: 0-20mA, 4-20mA, ±20mA
• HART Support: Full protocol on all channels
• ADC Resolution: 24-bit
• Filter Options: 8/12/16/40/200/500Hz
• Power: 3.3V@600mA + 5V@450mA
• Operating Temp: 0°C to 60°C (32°F-140°F)

Installation Guide

• Terminal Blocks: IC694TBB032 (Box), IC694TBS132 (Spring)
• Use extended blocks for shielded wiring
• Hot-swappable in RX3i Universal Backplane

Compatibility

• PACSystems RX3i/RX7i platforms
• Requires Proficy Machine Edition ≥5.0 SP3

Certifications

• HART Protocol 5.0 certified
• ±60VDC overvoltage protection

Packaging & Warranty

• Module
• 12-month warranty
• Shipping: FedEx/UPS/DHL worldwide

FAQ

Q: How many HART devices per channel?
A: Supports 1 HART device per channel simultaneously

Q: Is external HART modem needed?
A: No – 2 built-in modems handle all channels

Q: Can I use 4-20mA without HART?
A: Yes – HART is optional per channel
