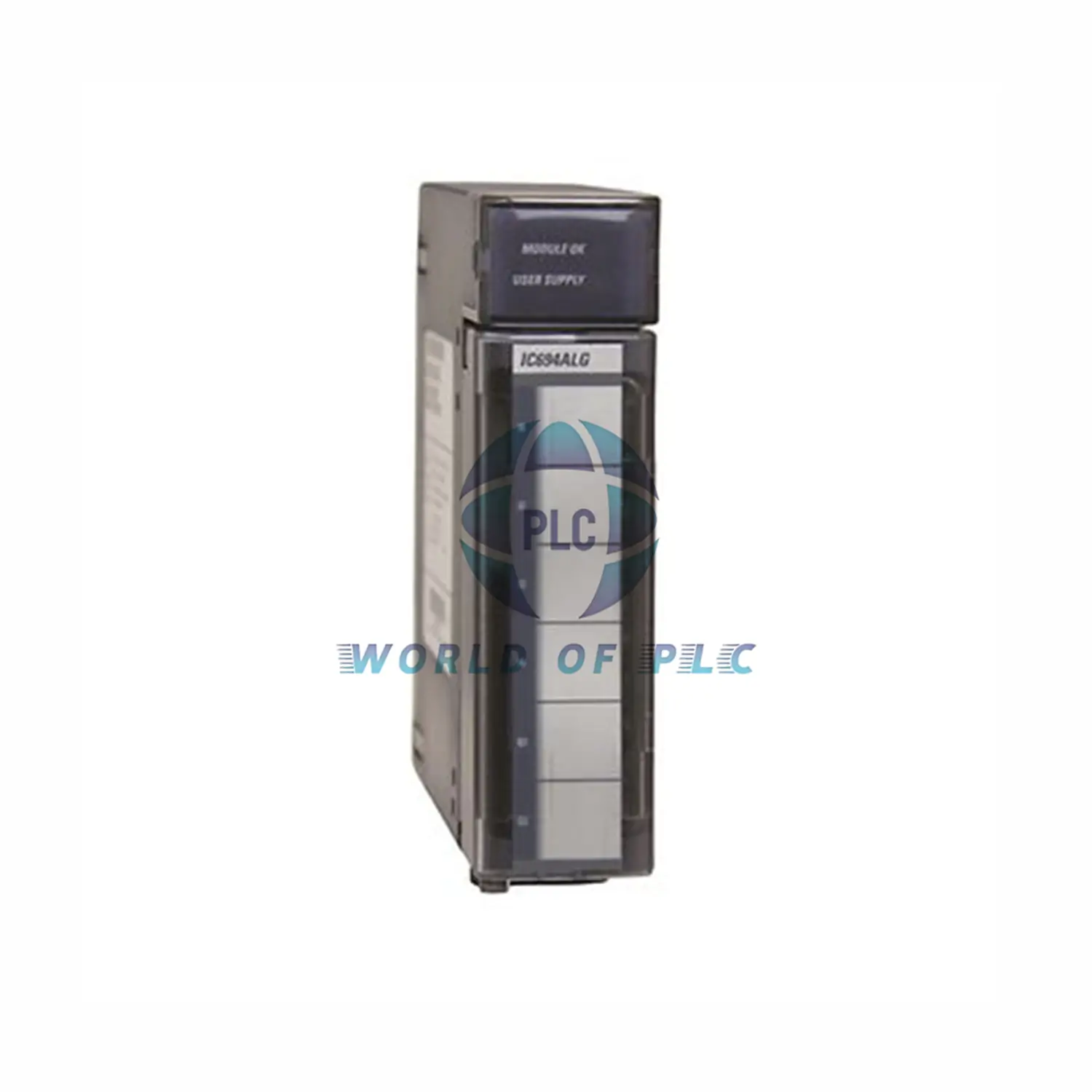

GE Fanuc IC694ALG233 16-Channel Analog Input Module
Optimize industrial process monitoring with the IC694ALG233 analog current input module. Designed for GE’s RX3i PacSystems, this 16-channel module delivers precise signal acquisition with enhanced diagnostics. Key features include open-wire detection, hot-swap capability, and configurable alarms for critical failure prevention.
TECHNICAL DATA
| Brand | GE Fanuc |
| Model | IC694ALG233 (Full Suffix) |
| Input Channels | 16 single-ended |
| Input Ranges | 0-20mA, 4-20mA normal, 4-20mA enhanced |
| Power Consumption | 120mA @ 5VDC (backplane) + 65mA @ 24VDC (external) |
| External Supply | 20-30VDC (±10% ripple) |
| Filter Response | 23Hz low-pass |
| Operating Temp | 0°C to 60°C |
| Humidity | 5% to 95% RH |
INSTALLATION GUIDE
Mount in RX3i slots with serial connectors. Always disconnect PLC main power before wiring in hazardous locations. Firmware upgradable for future feature expansion.
COMPATIBILITY
Works exclusively with GE RX3i PacSystems. Requires 24VDC external power (20-30V range).
PACKAGE CONTENTS
- IC694ALG233 Module
- Installation manual (digital)
SHIPPING
Global delivery via FedEx, UPS, DHL. Tracking provided.
FAQ
Q: Can I use this module in explosive areas?
A: Yes, but power must be OFF during installation per safety protocols.
Q: Does enhanced 4-20mA mode improve diagnostics?
A: Yes, it enables low-current alarms for open-circuit detection.
Q: Is external power mandatory?
A: Yes, requires 24VDC supply for loop current processing.
