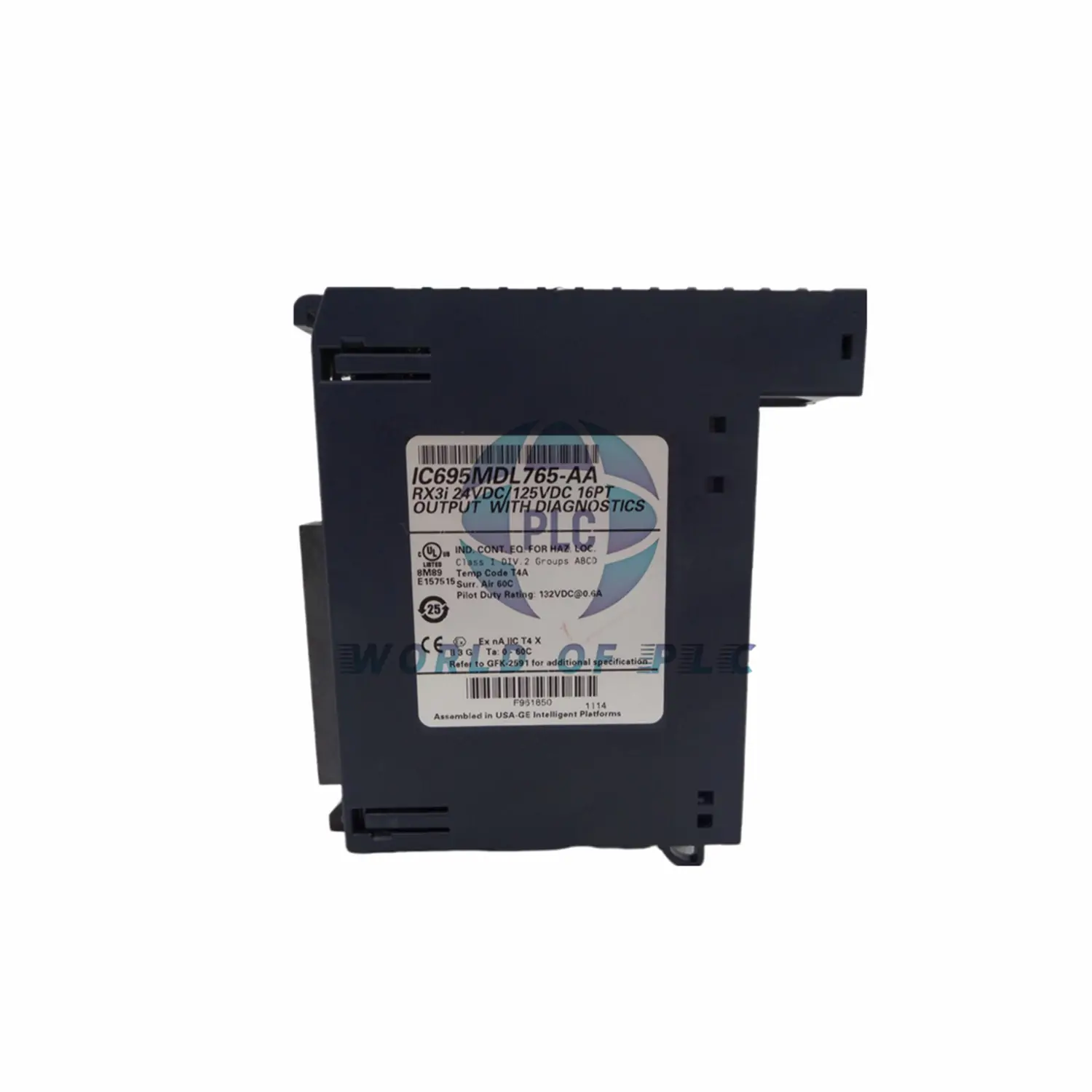

GE Fanuc PACSystem RX3i IC695MDL765 Digital Output Module

GE Emerson IC695MDL765: 16-Channel Smart Output Module

High-density 24/125VDC output module for PACSystems RX3i. Features per-channel diagnostics, pulse testing, and 1500V group isolation. Ideal for critical industrial control applications.

Key Technical Specifications

• Brand: GE Intelligent Platforms (now Emerson Automation)
• Model: IC695MDL765 (PACSystems RX3i series)
• Channels: 16 outputs – 2 isolated groups of 8
• Voltage Range:
  • Low: 18-30VDC @ 2A/channel
  • High: 105-132VDC @ 2A/channel
• Current Capacity:
  • 8A/group (max) | 16A/module (max)
  • 10A inrush (10ms pulse)
• Response Time: 1ms (ON/OFF)
• Power Draw: 540mA @5.1VDC | 152mA @3.3VDC

Diagnostic Capabilities

• Per-channel fault detection:
  • Over-temperature shutdown
  • Switch failure detection
  • Overload/no-load sensing
• Dual LED status indicators (S1/S2):
  • Power supply validity
  • Terminal block presence
  • Fault conditions
• Automatic fault logging to I/O table

Installation & Operation

• Wiring: Sourcing (positive logic) outputs
• Isolation: 1500V AC between groups
• Switching Limits:
  • Inductive loads: Max 0.5Hz @0.08H (30VDC)
  • Pilot duty: 1Hz @0.6A (132VDC)
• Fail-Safe Modes: Hold last state or default on CPU fault

Compatibility & Integration

• Designed for PACSystems RX3i platforms
• Seamless replacement for legacy GE Intelligent Platforms modules
• Terminal block status monitoring in control system

Package & Support

• New module in factory packaging
• 12-month manufacturer warranty
• Global shipping: FedEx/UPS/DHL (express available)

FAQ

Q: Can it drive 125VDC and 24VDC loads simultaneously?
A: Yes – each isolated group operates independently at different voltages.

Q: What triggers no-load detection?
A: Activates when output current drops below 10mA during operation.

Q: Is terminal block monitoring standard?
A: Yes – logs insertion/removal events to system fault tables.
