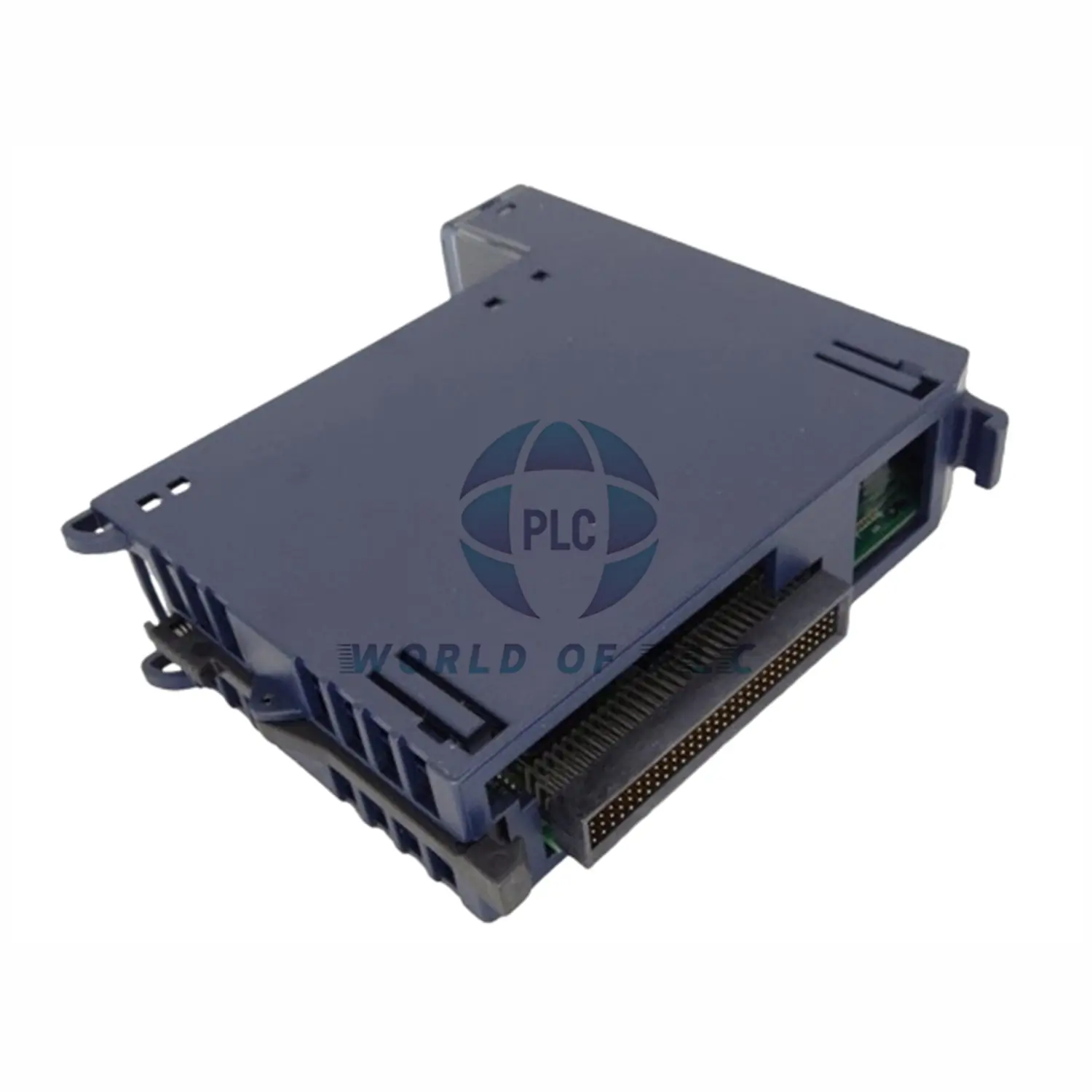

GE Fanuc PACSystem RX3i IC695ALG508 Analog Input Module

IC695ALG508 PACSystem RX3i RTD Input Module

High-performance 8-channel RTD input module for industrial automation. Supports direct connection to resistance sensors with hot-swap capability and isolated differential inputs.

Technical Specifications

• Brand: Emerson (formerly GE Fanuc)
• Model: IC695ALG508
• Input Types: Platinum 385/391.6, Nickel 618/672, Copper 426, Nickel-Iron 518
• Resistance Range: 0-4200Ω (6 selectable ranges)
• Accuracy: ±0.1% full scale
• Data Format: 16-bit integer or 32-bit IEEE floating point
• Power: 3.3V@400mA + 5V@200mA
• Operating Temp: 0°C to 60°C
• Storage Temp: -40°C to 85°C

Installation Guide

• Compatible terminal blocks: IC694TBB032 (Box), IC694TBS132 (Extended Spring)
• Use shielded wiring with extended terminal blocks
• Mount in RX3i Universal Backplane slots

Compatibility

• PACSystems RX3i PLC platforms
• Requires compatible baseplate (IC695CHSxxx series)

Packaging & Warranty

• Includes module and documentation
• 12-month warranty
• Shipping: FedEx/UPS/DHL (global)

FAQ

Q: Does it support 2-wire RTDs?
A: Yes, all wiring types (2/3/4-wire) are supported.

Q: What’s the sampling rate?
A: 50ms per channel with configurable filtering.

Q: Is calibration required?
A: Factory-calibrated; field recalibration not needed.
