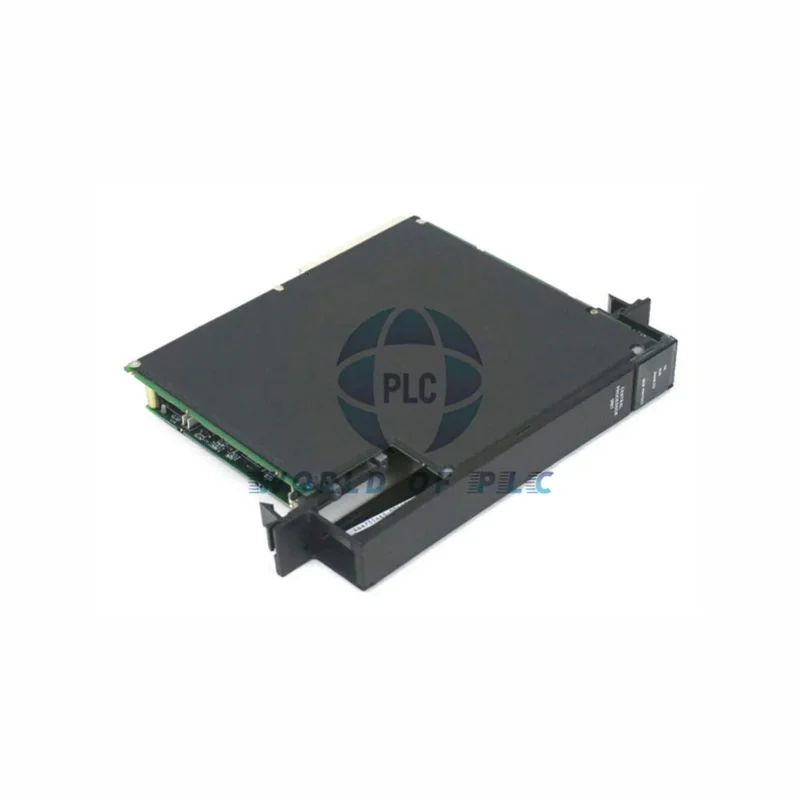

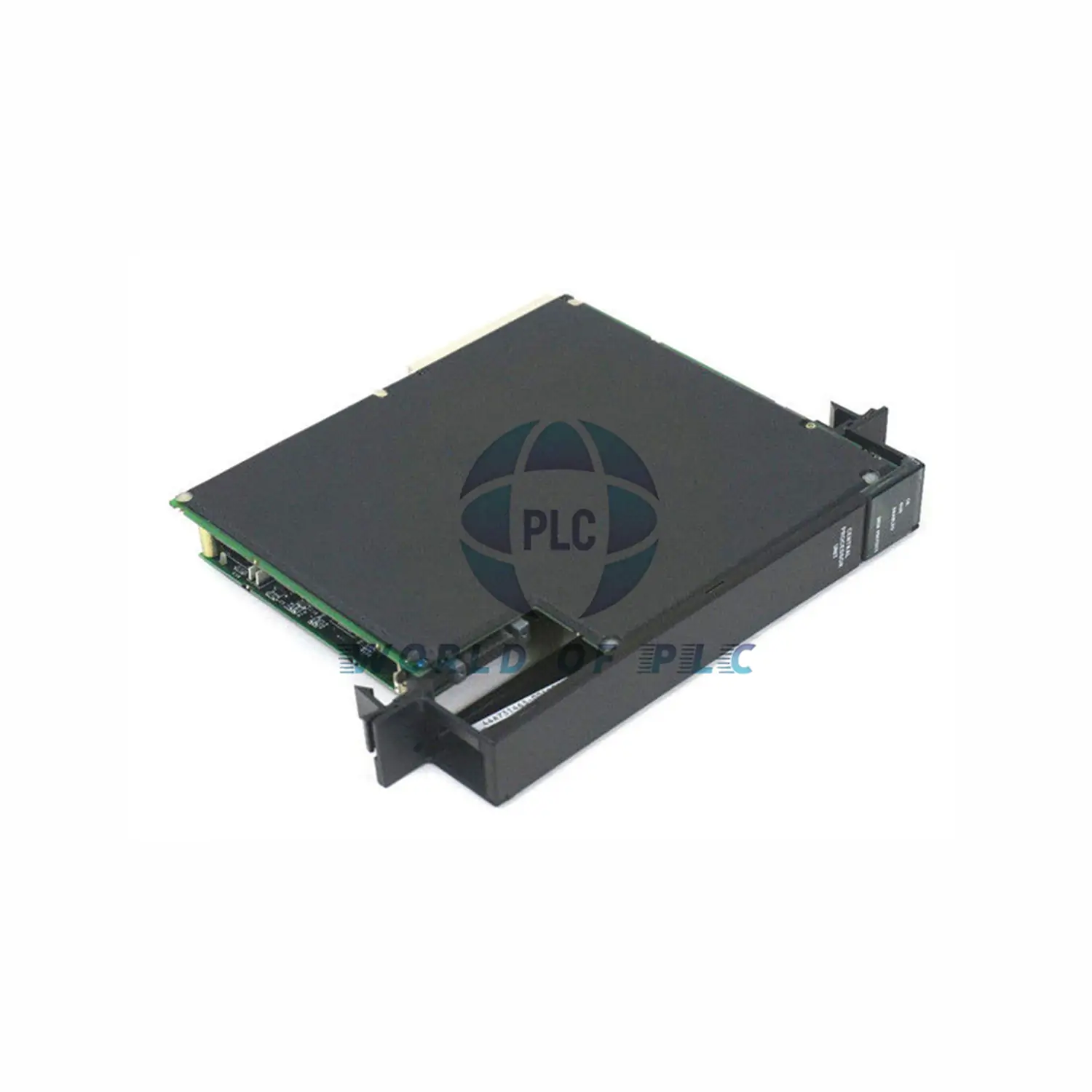

GE Fanuc IC697CPU731 12 MHz CPU Module Series 90-70

IC697CPU731 Series 90-70 PLC CPU – Industrial Automation Controller

Product Description

The GE Fanuc IC697CPU731 is a single-slot PLC CPU with 80C186 microprocessor (12MHz). Controls 512 I/O points (any mix) and supports 8000 analog I/O. Works with Windows/DOS software for real-time industrial automation.

Technical Specifications

• Brand: GE Fanuc
• Model: IC697CPU731
• Series: Series 90-70
• Processor: 80C186 (12MHz clock speed)
• I/O Capacity: 512 points (digital/analog mix)
• Analog I/O: Supports up to 8000 points
• Communication: Backplane data transfer
• Memory: User-configurable program/data
• Operating Temp: 0°C to 60°C
• Power: 5V DC via backplane

Key Features

• Real-time control for industrial processes
• Compatible with IC697 I/O modules
• Remote operation via programming software
• Three-position control switch

Installation Guide

• Install in powered-off PLC baseplate
• Single-slot design (occupies 1 slot only)
• Connect battery to dedicated connector
• Use Series 90-70 compatible backplane

Diagnostics & Maintenance

• Monitor via LED status indicators
• Replace battery every 2 years
• Use GE Fanuc programming software for troubleshooting

Packaging & Shipping

• 1x IC697CPU731 CPU module
• Shipping: FedEx/UPS/DHL (3-5 business days)

Industry Applications

• Manufacturing: Assembly line control
• Material Handling: Conveyor systems
• Energy: Equipment monitoring

FAQ

Q: What software is needed?
A: Windows/DOS-based GE Fanuc programming software.

Q: Can it control analog devices?
A: Yes, supports up to 8000 analog I/O points.

Q: Is battery backup included?
A: No, requires separate battery connection.
