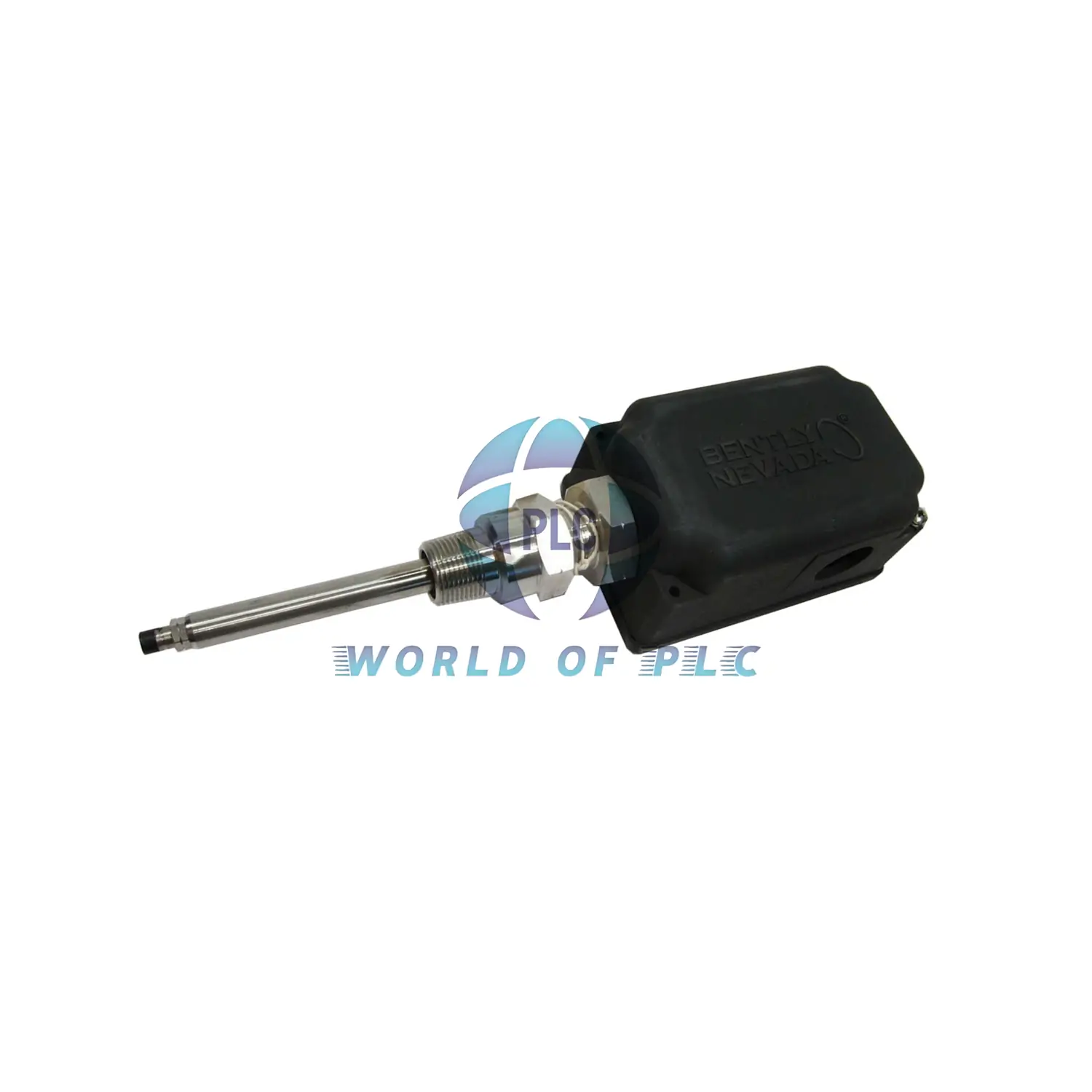

Bently Nevada PROXPAC XL Proximity Transducer 330881-28-04-105-00-02

🌟 Core Specifications

Bently Nevada 330881-28-04-105-00-02 PROXPAC XL transducer delivers industrial precision. 1-year warranty. Made in USA.

🔧 Key Configuration for 330881-28-04-105-00-02

• Probe: 8mm (3300 XL) with multi-certifications
• Standoff: 40mm (B dimension)
• Penetration: 105mm (C dimension)
• Mounting: 3/4-14 NPT threads
• Weight: 1.44kg / 3.2lbs

🛡️ Rugged Construction

• Housing: IP66 rated (tested to -39°C & 115°C)
• Probe Tip: PPS plastic
• Cable: 1m FEP-insulated triaxial (75Ω)
• Impact Survival: 4J@extreme temps, 7J@room temp

⚡ Performance Data

• Voltage: -17.5V to -26V DC (12mA max)
• Linear Range: 0.25-2.3mm (±0.025mm accuracy)
• Temp Range: -51°C to +177°C
• Minimum Target: 15.2mm diameter

🔌 Installation Guide

• Wiring: 0.2-1.5mm² (16-24 AWG), max 305m length
• Torque Specs:
  – Retaining Nut: 29.5N·m
  – Locknut: 39.3N·m
• Gap Setting: 1.27mm optimal

📜 Certifications & Support

• BASEEFA T07/0709 certified
• 12-month warranty

Document Download Here:PROXPAC XL Proximity Transducer Assembly Datasheet
