Product Overview

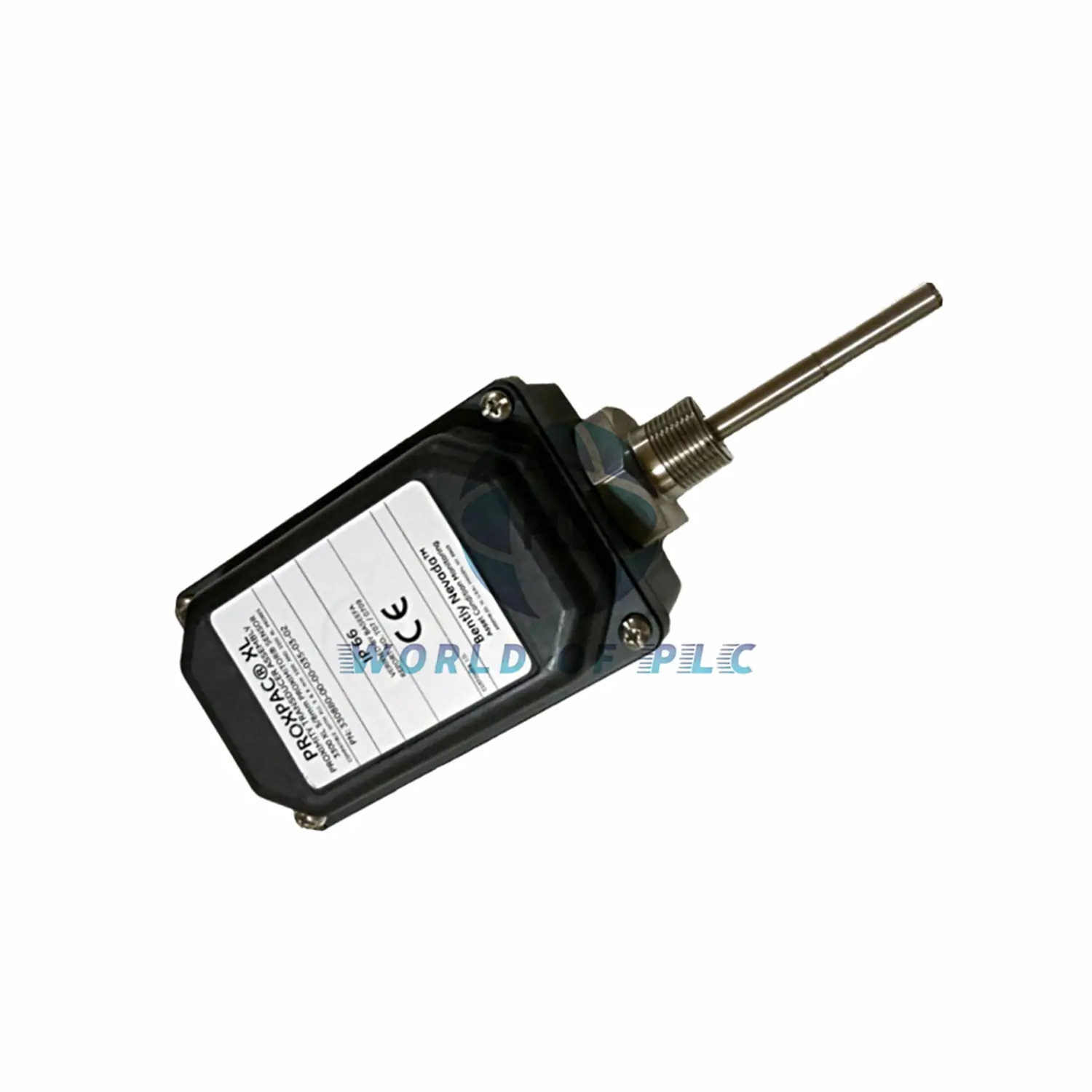

Bently Nevada’s 330880-16-00-045-00-02 PROXPAC XL Proximity Transducer ensures precise machine monitoring. Made in the USA with a 1-year warranty. Optional Certificate of Origin (COO) available.
Key Specs for 330880-16-00-045-00-02
- Model Codes: 16=8mm probe | 00=No standoff | 045=45mm depth | 00=No fittings (plugs + washers included).
- Weight: 1.44 kg (3.2 lb) | Protection: IP66 waterproof (BASEEFA-certified).
- Mounting: 3/4-14 NPT thread (required for standoff).
Performance
- Power Range: -17.5V to -26V | Current: 12 mA max.
- Temp Range: -51°C to +177°C (-60°F to +350°F). Warning: Below -34°C (-29°F) may damage seals.
- Accuracy: ±0.025mm (±1 mil) | Response: 0-10 kHz.
Durability & Build
- Probe: PPS tip + stainless steel case | Strength: 330N (75 lb) pull resistance.
- Cable: 1m triple-shielded (75Ω) | Connector: Gold ClickLoc.
- Impact Tested: 7J hits at room temp (CSA-certified).
Installation Guide
- Torque: Retaining nut 29.5 N·m | Locknut 39.3 N·m.
- Wiring: 16-24 AWG shielded cable | Max Length: 305m (1000ft).
- Target: Min. 15.2mm (0.6″) flat surface | Shaft: ≥50.8mm (2″).
