Product Overview

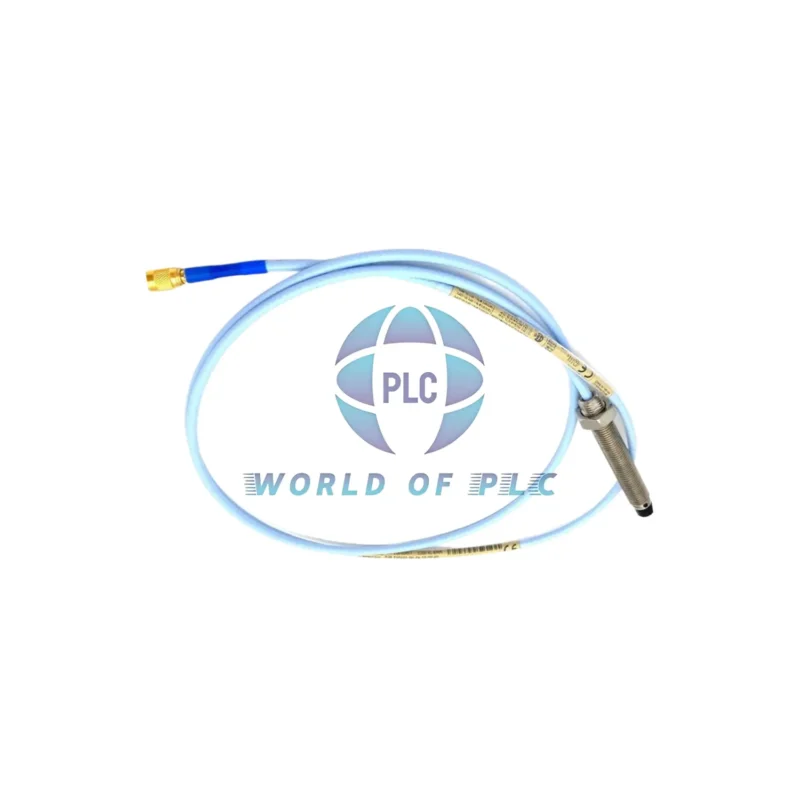

The Bently Nevada 330905-06-14-10-02-00 is a 3300 NSv Proximity Probe with M10X1 thread (no armor). New & original, backed by a 12-month warranty.
Key Specs
- Part Number: 330905-06-14-10-02-00
- Unthreaded Length: 60 mm (-06-)
- Case Length: 140 mm (-14-)
- Cable Length: 1.0 m (39 in) (-10)
- Approvals: Not required (-00)
Key Features
- Industrial-grade: Better chemical resistance than 3300 RAM probes
- Measure Range: 1.5 mm (60 mils) from 0.25–1.75 mm
- Probe Resistance: 4.2 ± 0.5 Ω (1.0 m cable)
- Max Torque: 0.56 N•m (5 in•lb)
Durability & Use
- Temp Range: -52°C to +177°C (-62°F to +351°F)
- Seal: Viton O-ring (pressure tests available)
- Field Wiring: Supports up to 305 m (1,000 ft) shielded cable
- Target Size: Min 8.9 mm (0.35″) diameter
