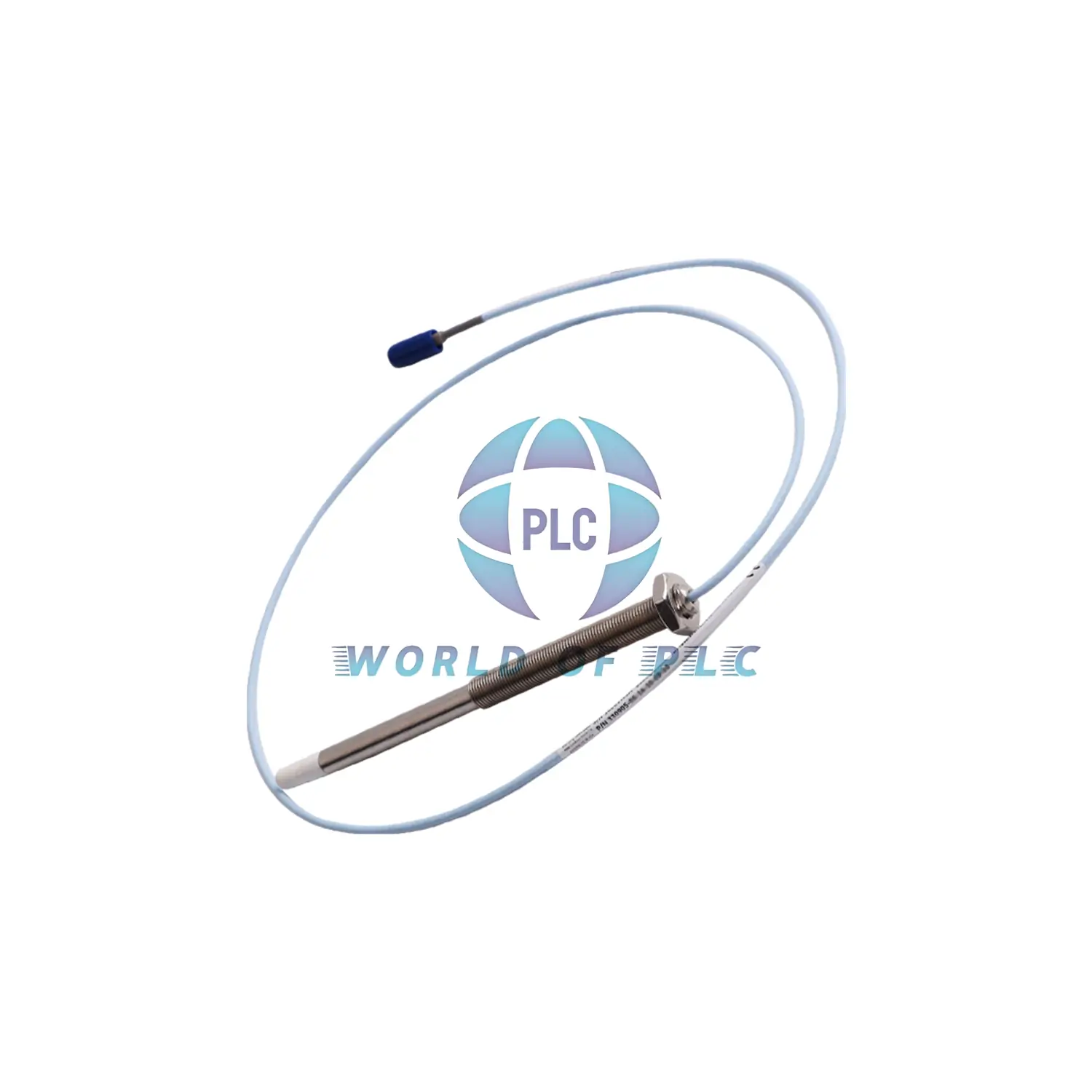

Bently Nevada Metric 3300 NSv Proximity Probe 330905-00-25-05-01-CN

Core Features

Bently Nevada 330905-00-25-05-01-CN – M10X1 proximity probe with 250mm case and 0.5m cable. Includes connector protector and country-specific approvals. 1-year warranty.

Critical Numbers

• • Case: 250mm total length (code -25)
• • Cable: 0.5m FEP insulated
• • Probe DC: 4.0Ω ±0.5Ω
• • Torque: Max 5 in-lb

Performance Data

• ► Measure: 0.25-1.75mm range
• ► Accuracy: ±0.06mm error
• ► Response: 0-10kHz (±3dB)
• ► Output: -1V to -13V

Model ID Breakdown

330905-00-25-05-01-CN

-00: No unthreaded section
-25: 250mm case length
-05: 0.5m cable
-01: Connector + protector
-CN: Local approvals

Durability Highlights

✓ Extreme temps: -52°C to +177°C
✓ Materials: PPS tip + 304 SST case
✓ Protection: Viton O-ring seal
✓ Bend radius: ≥25.4mm

Installation Notes

• Targets: Min 8.9mm, ideal 13mm
• Wiring: 305m max shielded triad
• Pressure: Contact factory for tests
• Threads: 11.3 N·m recommended torque

Document Download Here: 3300 XL NSv Proximity Transducer System Datasheet
