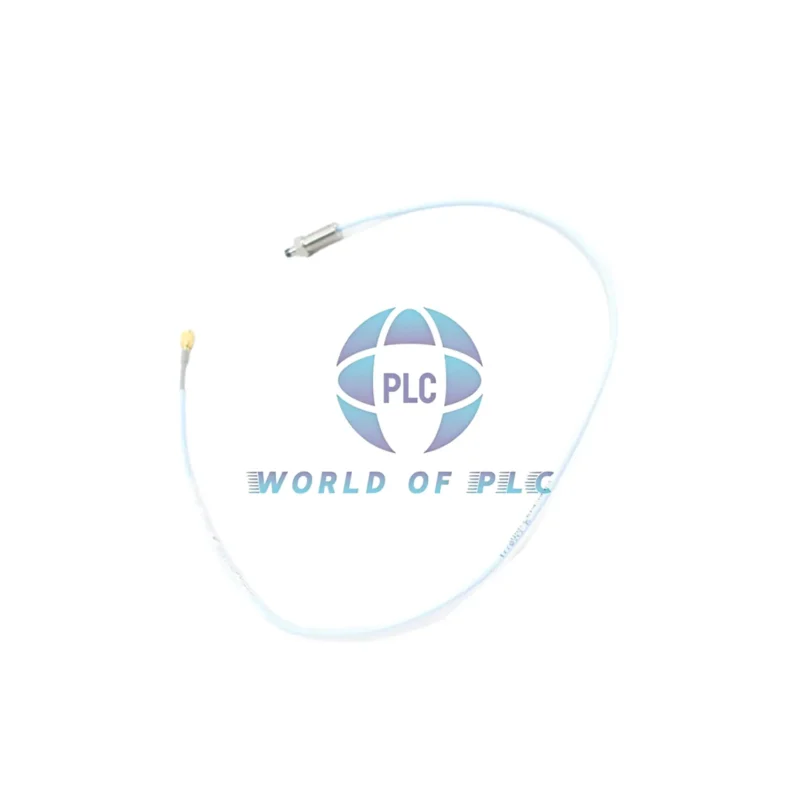

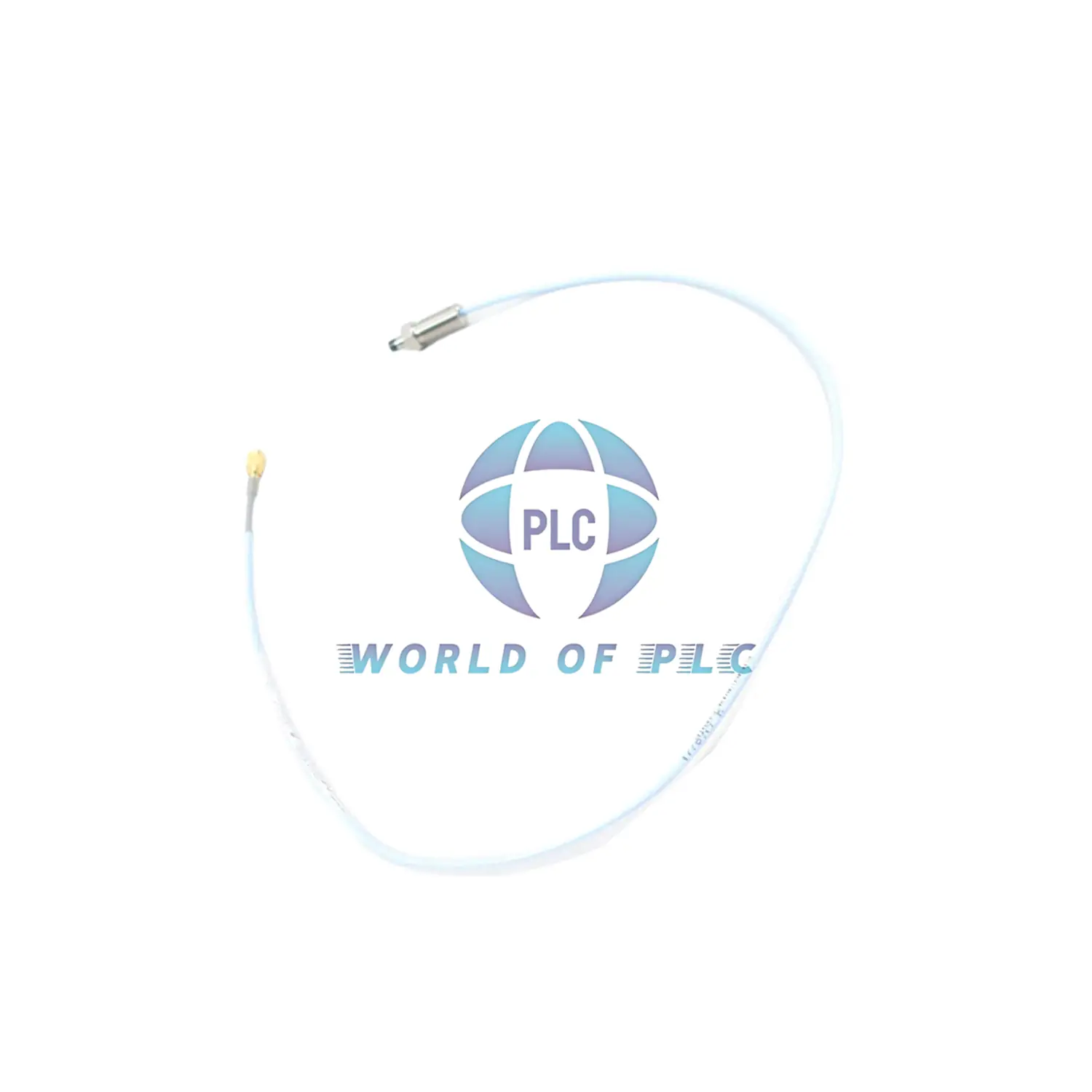

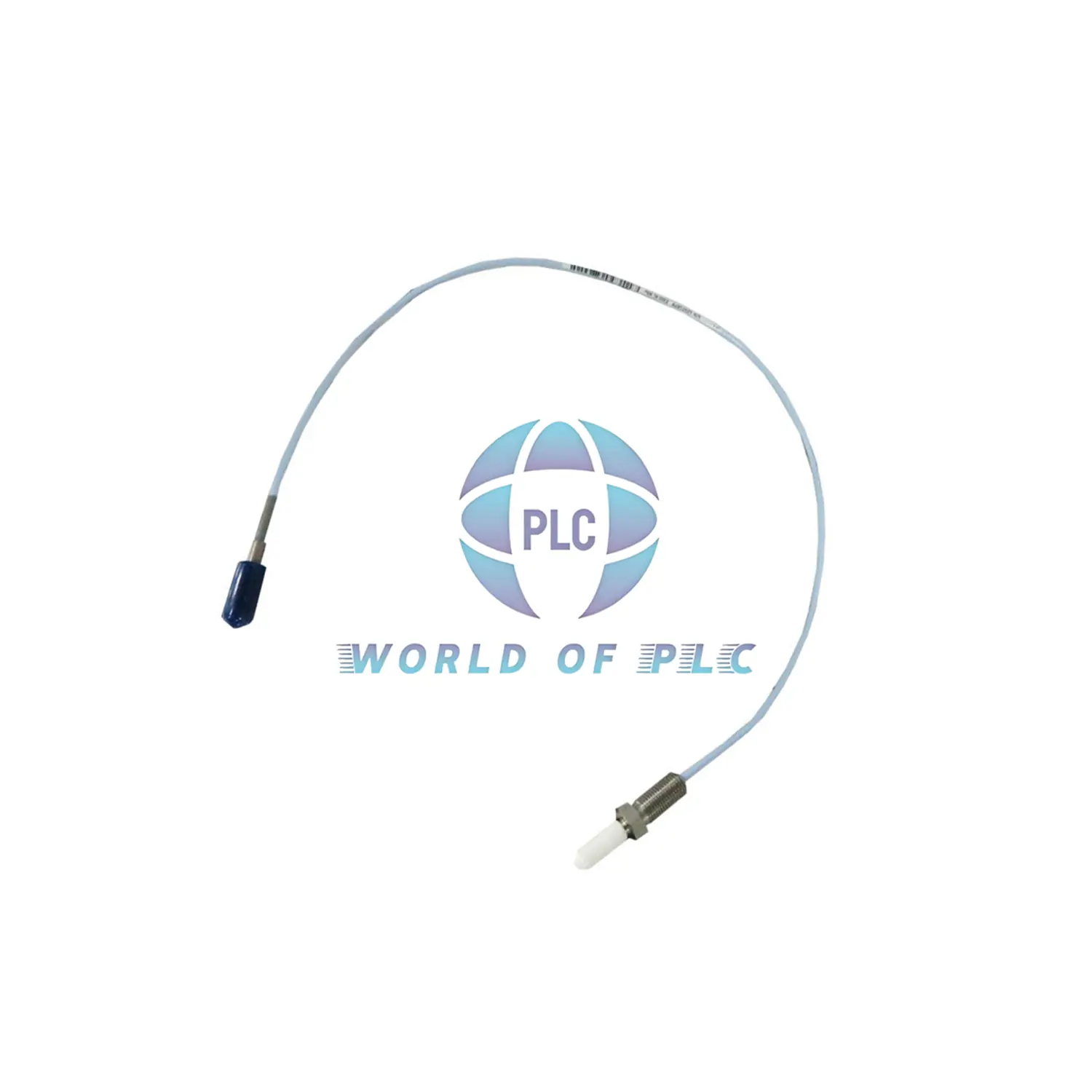

Bently Nevada Metric 3300 NSv – 330905-00-13-10-12-CN – Proximity Probe

Key Features

The Bently Nevada 330905-00-13-10-12-CN is a new industrial probe with a 1-year warranty. Fits with older 3300 RAM probes. Better for harsh chemicals and clearer side views. Includes a secure FluidLoc cable and ClickLoc connector.

Size & Build about 330905-00-13-10-12-CN

Dimensions:
– Thread: M10X1
– Case: 130 mm
– Length: 1 meter (39 inches)
– Bend Limit: 25.4 mm (1 inch)

Materials:
– Tip: PPS plastic
– Body: Stainless steel
– Seal: Viton O-ring
– Temp Range: -52°C to +177°C

Performance

Electrical:
– Resistance: 4.2Ω ±0.5
– Cable: 0.220Ω/m (center wire)
– Range: 1.5 mm
– Error: ±0.06 mm

Installation:
– Max Torque: 33.9 N•m
– Normal Torque: 11.3 N•m
– Cable Size: 0.2–1.5 mm²

Support

1-year warranty included.

Document Download Here 3300 XL NSv Proximity Transducer System Datasheet
