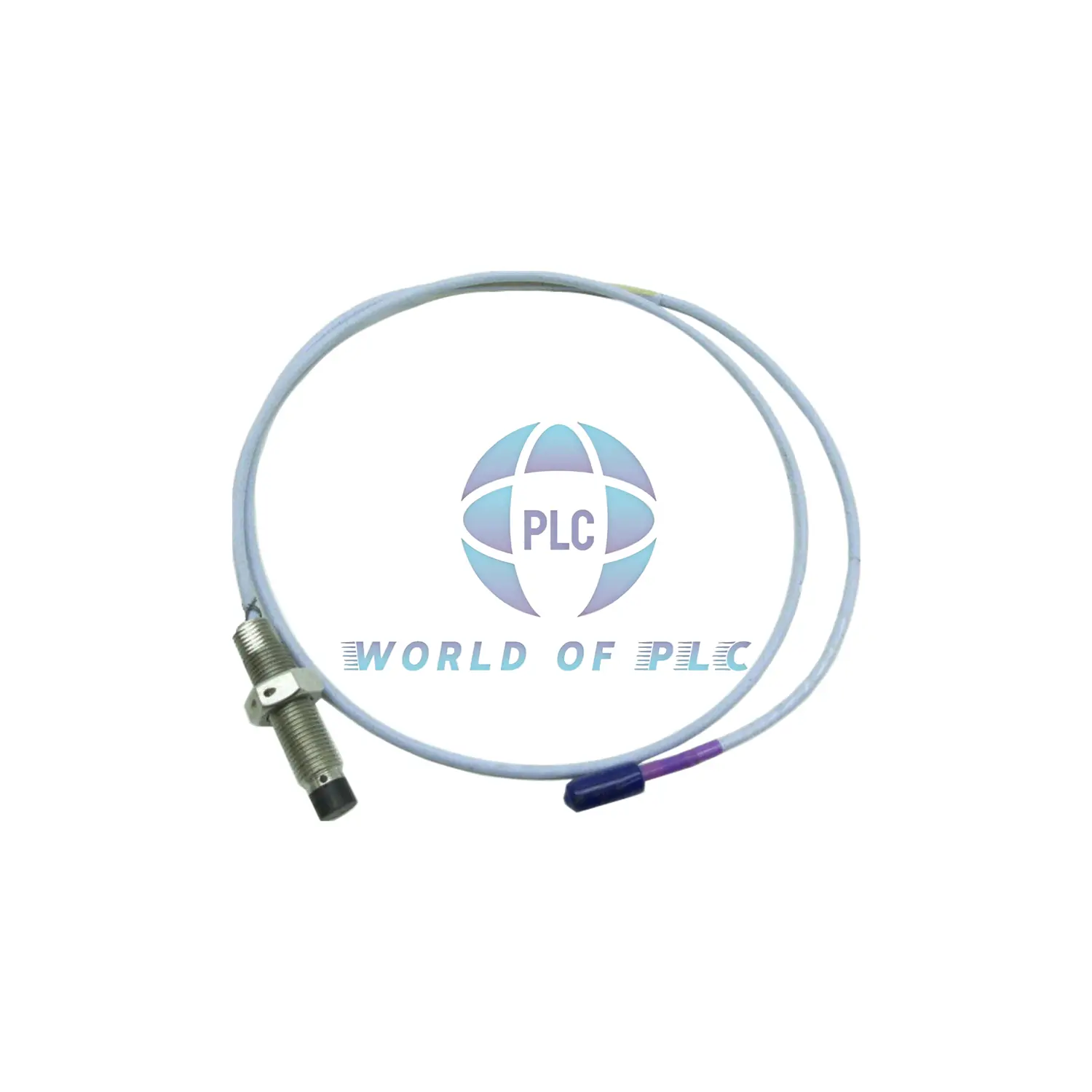

Bently Nevada 33300 XL 330707-00-10-90-12-00 11 mm Proximity Probe

Bently Nevada 330707-00-10-90-12-00: High-Performance 9m Proximity Probe

At a Glance

• ✅ 9-meter (29.5 ft) industrial-grade proximity probe
• ✅ 5/8-18 UNF thread for secure mounting
• ✅ FluidLoc cable resists oils and chemicals
• ✅ Works in extreme temps: -51°C to +177°C
• ✅ Made in USA with premium materials

Decoding the Model Number

• ▸ 330707 = 3300 XL 11mm Probe (no armor)
• ▸ 00 = 0″ unthreaded length
• ▸ 10 = 1.0″ case length
• ▸ 90 = 9.0 meter cable
• ▸ 12 = ClickLoc connector + FluidLoc cable
• ▸ 00 = No special approvals needed

Technical Specifications

• Electrical: 75Ω triaxial cable (8.5Ω ±1.1 resistance)
• Thread Specs: 5/8-18 UNF (max engagement 0.938″)
• Installation: 15.2 N•m recommended torque
• Durability: PPS tip + 304 stainless steel case
• Cable: FEP insulation, 25.4mm min bend radius
• Weight: Lightweight at just 0.17kg

Expert Answers

• Q: Can I use this in underwater applications?
  A: While FluidLoc resists moisture, it’s not designed for full submersion.
• Q: What’s the advantage of 5/8-18 UNF threading?
  A: Provides stronger hold than smaller threads in high-vibration environments.
• Q: Is the cable replaceable if damaged?
  A: No, the cable is permanently attached to maintain signal integrity.
• Q: How does temperature affect performance?
  A: Avoid below -34°C to prevent seal damage, but works to -51°C.
• Q: Can I get different cable lengths?
  A: Yes, we offer 1m and 5m versions with different model numbers.
