Bently Nevada – 330881-16-00-385-06-02 – PROXPAC XL Proximity Transducer

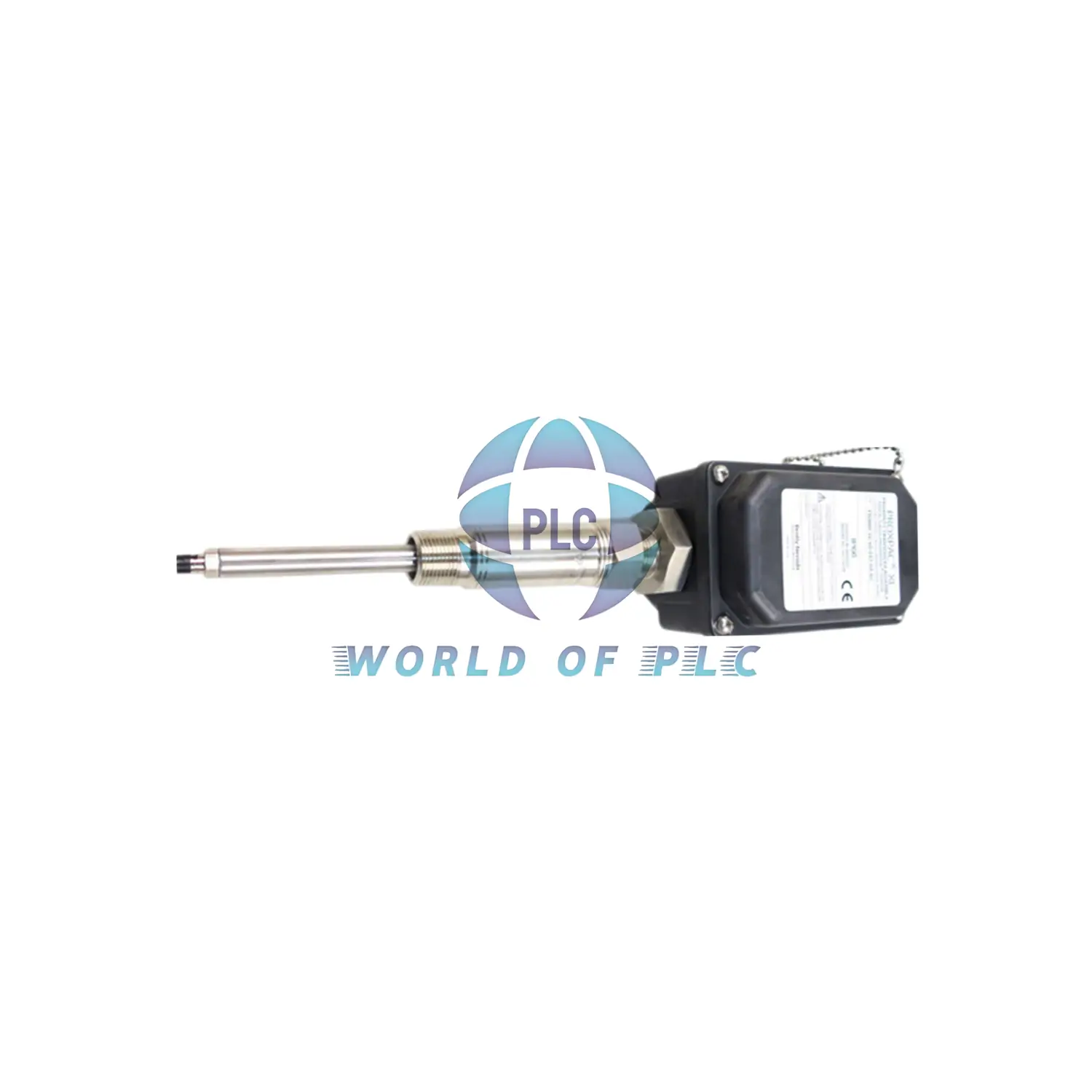

PROXPAC XL Proximity Transducer Overview

Manufacturer: Bently Nevada | U.S.A Made | 1-Year Warranty 330881-16-00-385-06-02
Certification: BASEEFA T07/0709 & CSA Approved | COO: Available upon request

🔧 Mechanical Specifications

Probe Dimensions: 8mm diameter | 385mm penetration (C Dimension)
Housing Material: UV-resistant PPS with conductive fibers | IP66 Rated
Weight: 1.44 kg (3.2 lb) | Max Tensile Strength: 330N (75 lb)

⚡ Electrical Performance for 330881-16-00-385-06-02

Voltage Range: -26Vdc to -17.5Vdc | Output Resistance: 50Ω
Linear Range: 0.25-2.3mm (10-90 mils) | 7.87V/mm Sensitivity
Frequency Response: 0-10kHz (±3dB) | Max Cable Length: 305m (1000ft)

🌡️ Environmental Durability

Operating Temp: -51°C to +177°C (-60°F to +350°F)
Impact Resistance: 7J (9.5 ft·lb) at 23°C | Vibration Isolation: Cellular Silicone
Seal Failure Risk: Below -34°C (-29°F)

🔩 Installation Details

Fittings: 3/4-14 NPT + Reducer & Plugs (0 6 Option)
Torque Specs: 29.5N·m Retaining Nut | 39.3N·m Locknut
Target Requirements: ≥15.2mm Diameter | Shaft Size: ≥50.8mm (2″)

📦 Complete System Configuration

Suffix Breakdown: 3300 XL Probe | 0 0 Standoff Adapter | 385mm Penetration
Included: Triaxial FEP Cable (1m) | ClickLoc Connector | Stainless Steel Hardware
Quality Assurance: ±0.025mm DSL Accuracy | 200mV/mil ISF

Lead Time: 3-5 Business Days

Document Download Here:PROXPAC XL Proximity Transducer Assembly Datasheet
