Bently Nevada | 330709-000-050-50-02-00 – 3300 XL 11 mm Proximity Probe

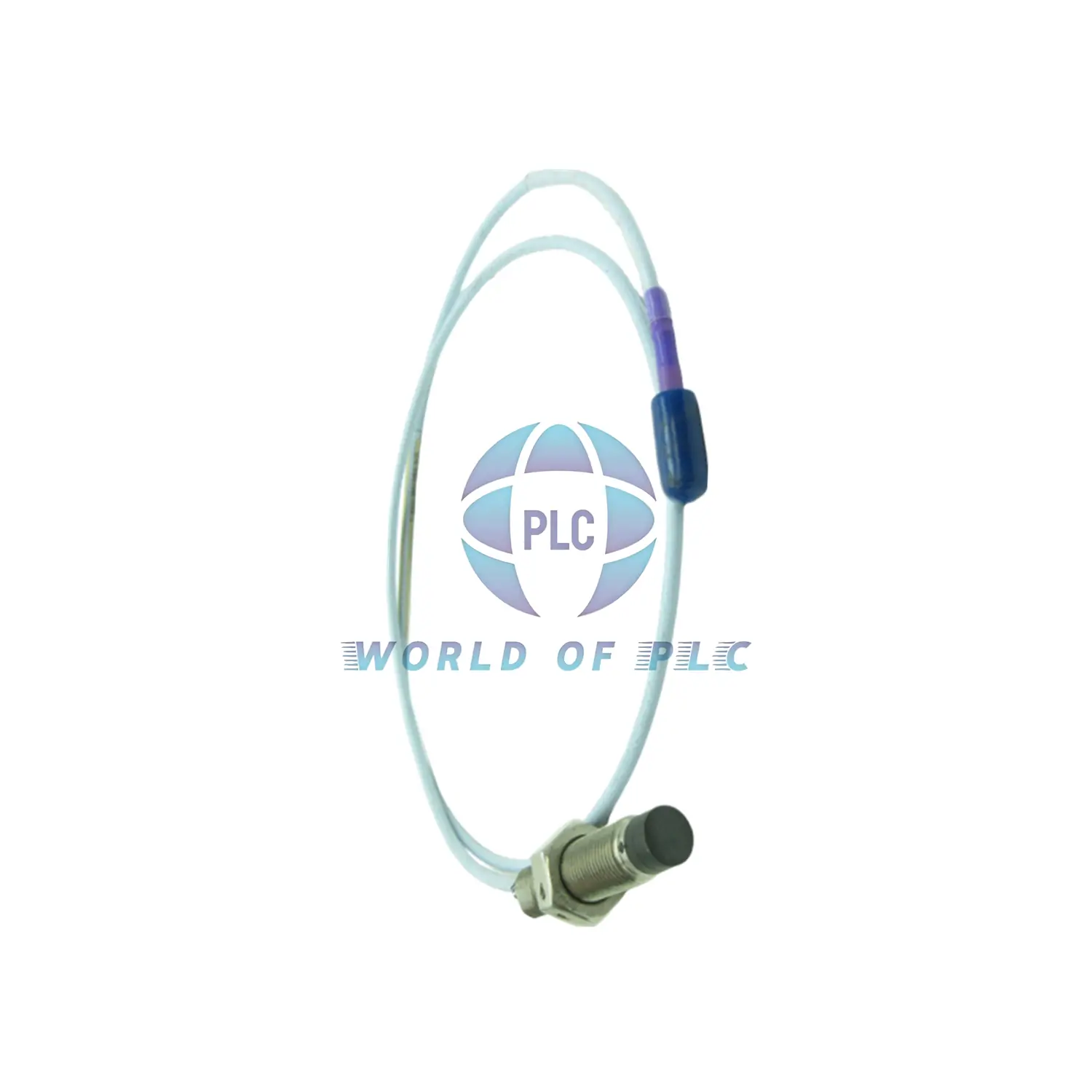

Bently Nevada 330709-000-050-50-02-00 3300 XL 11mm Proximity Probe

Product Basics (330709-000-050-50-02-00 )

• Base model: 330709
• Unthreaded length: 0mm
• Case length: 50mm
• Cable length: 5.0m (16.4ft, only works with 5m Proximitor Sensor)
• Connector: Small ClickLoc with standard cable
• Certifications: None needed

Key Features

• Resistance: 7.2 ohms (±0.8) for 5.0m length
• Min target size: 30.5mm (flat) / 152mm (shaft)
• Tip material: PPS plastic
• Case material: 304 stainless steel
• Cable: 75Ω triaxial, FEP insulated (1m/5m/9m options)
• Working temp: -52°C to +177°C

Installation Tips

• Thread size: M16x1.5
• Max thread fit: 24mm
• Case tightening: 63.3N·m (560 in·lb)
• Connector: Hand-tight (max 0.565N·m)
• Min bend radius: 25.4mm (1in)

Important Notes

Don’t use below -34°C to avoid seal damage. Best for long-distance industrial monitoring with 5m Proximitor Sensor.

Package & Delivery

• Includes: Probe, 5.0m cable, O-ring, manual
• Shipping: FedEx/UPS/DHL (4-7 days)
