Bently Nevada 330702-00-10-10-01-05 11 mm Proximity Probe

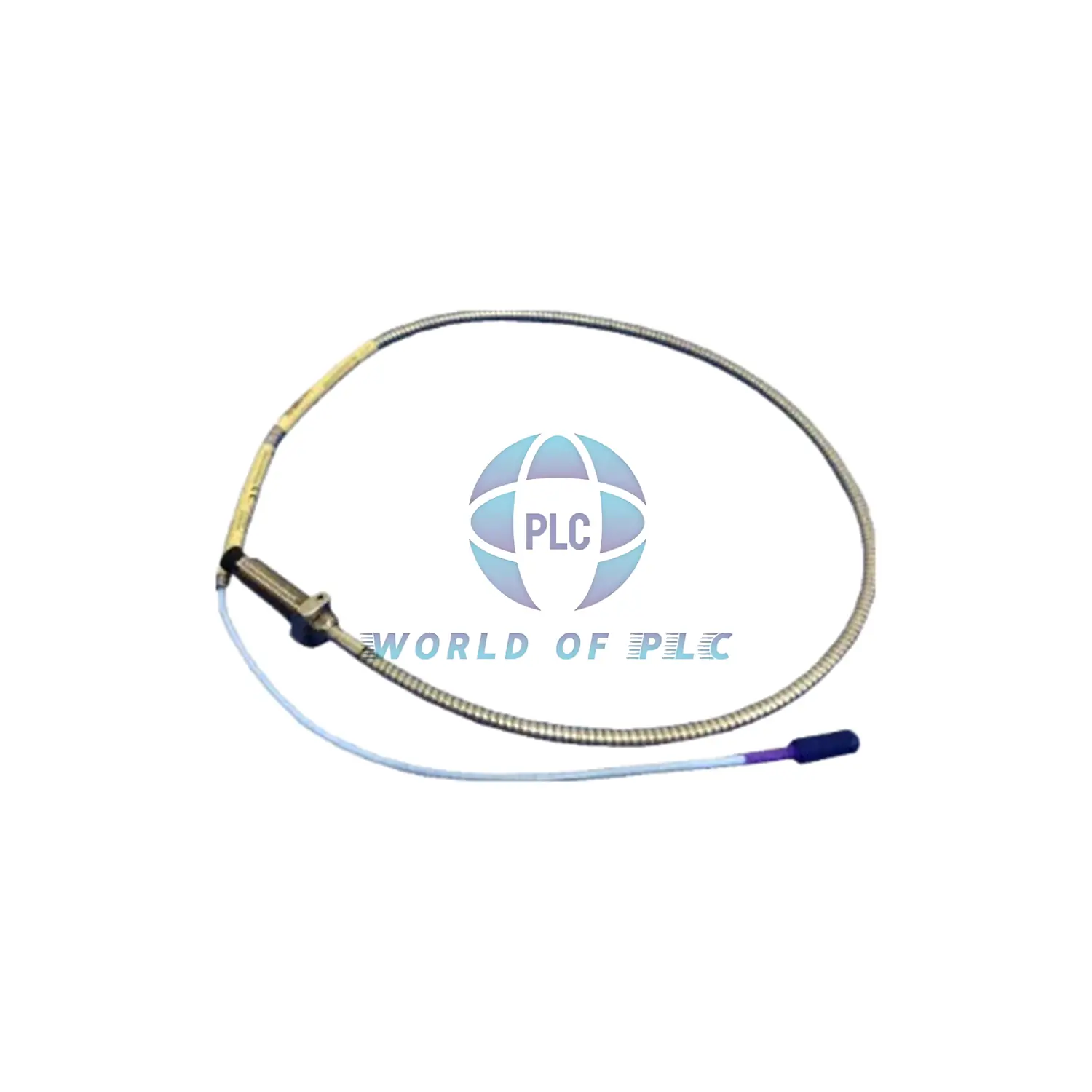

Bently Nevada 3300 XL 11mm Proximity Probe – High-Performance Vibration Monitoring

Description

The Bently Nevada 3300 XL 11mm Proximity Probe is a rugged, precision sensor designed for vibration and position monitoring in industrial machinery. Featuring a PPS probe tip and 304 stainless steel case, it operates in extreme temperatures (-51°C to +177°C) and seals pressure differentials with a Viton O-ring. Ideal for turbines, compressors, and motors.

Technical Data

• Brand: Bently Nevada
• Model: 330702-00-10-10-01-05 (Full suffix explained below)
• Thread: 1/2-20 UNF
• Probe Length: 1.0 meter (3.3 ft)
• Cable: 75Ω triaxial FEP, ClickLoc connector
• Resistance: 5.9Ω ±0.5 (center to outer conductor)
• Torque: Max 45.2 N•m | Recommended 15.2 N•m
• Bend Radius: 25.4 mm (1.0 in)

Model Suffix Breakdown

The suffix 330702-00-10-10-01-05 decodes as:

• 00: 0″ unthreaded length
• 10: 1.0″ case length
• 10: 1.0 meter cable
• 01: Miniature coaxial ClickLoc connector
• 05: Multiple agency approvals

Key Features

• Wide temperature range: -51°C to +177°C
• Armored cable for durability
• Sealed against pressure differentials
• Compatible with 5-meter Proximitor sensors

Installation Guide

• Max thread engagement: 0.75″ (1/2-20 UNF)
• Finger-tighten connector (max 0.565 N•m)
• Avoid bends under 25.4 mm radius

Compatibility

Works with Bently Nevada 3300 XL monitoring systems. Not compatible with 9m cable systems.

Certifications

Multiple international approvals (suffix 05).

Package Includes

• 1x 3300 XL 11mm Probe
• Connector protector
• Shipping weight: 0.17 kg

Warranty & Shipping

12-month warranty. Ships via FedEx, UPS, or DHL.
