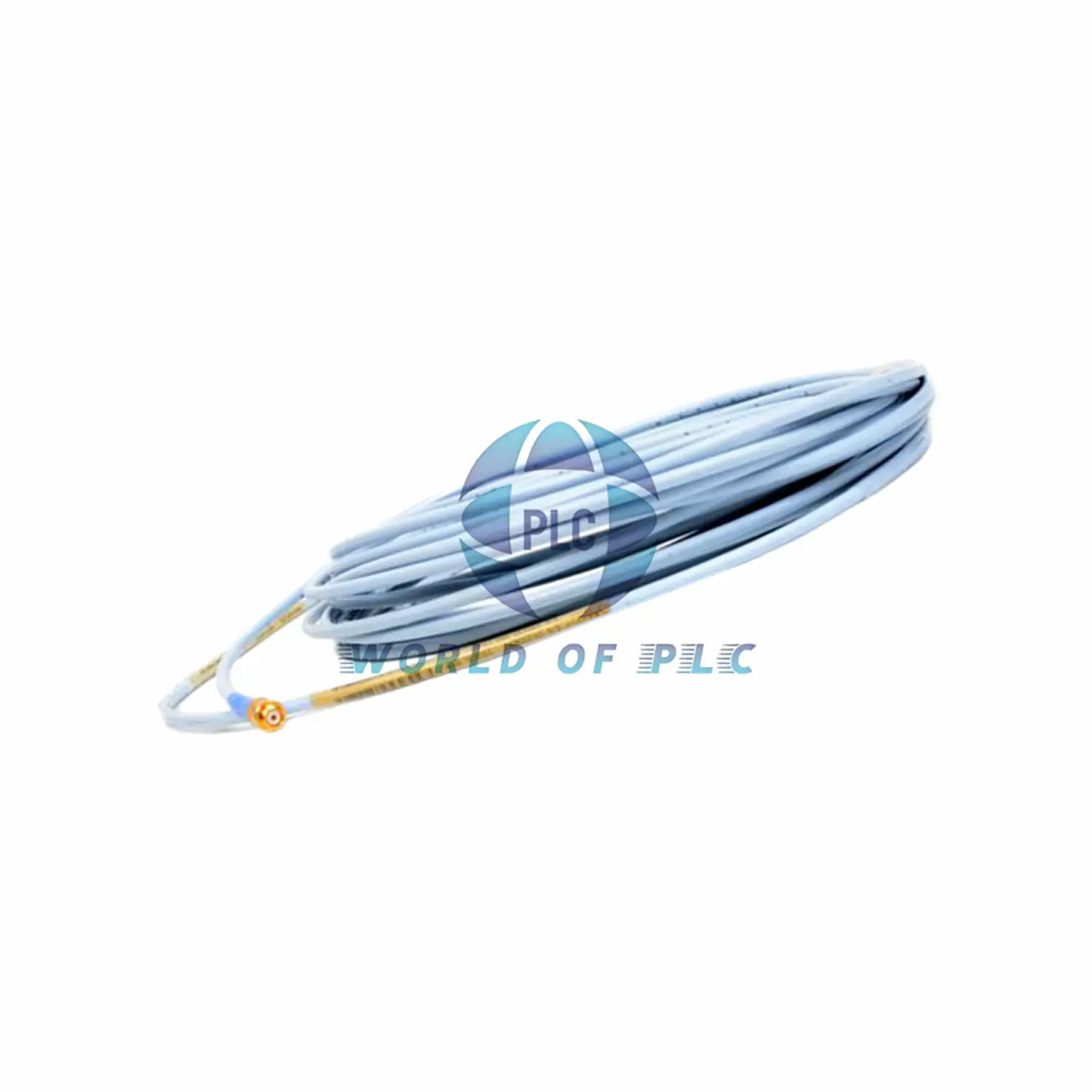

Bently Nevada 330130-075-00-05 3300 XL 8mm Extension Cable

Bently Nevada 330130-075-00-05 Extension Cable: Certified Industrial Performance

Quick Overview

7.5m heavy-duty cable for vibration monitoring systems. Made in USA. With CSA, ATEX & IECEx safety approvals. Patented CableLoc™ design. For harsh industrial environments.

Model Number Explained

• 330130 – Base product code
• 075 – 7.5 meter length (24.6 ft)
• 00 – Standard armored cable
• 05 – CSA/ATEX/IECEx certified

Key Specifications

• Brand: Bently Nevada
• Model: 330130-075-00-05
• Cable Weight: 0.772 kg (armored)
• Resistance (Core): 1.65Ω ±0.25Ω
• Resistance (Jacket): 0.49Ω ±0.10Ω
• Voltage Range: -17.5Vdc to -26Vdc
• Max Current: 12 mA
• Humidity Resistance: 93% for 56 days
• Pull Strength: 330N (75 lbf)

Critical Installation Notes

• Max distance to monitor: 305m (1000 ft)
• Use 3-conductor shielded cable (16-24 AWG)
• Optimal gap: 1.27mm (50 mils) from target
• Never use silicone tape in turbine oil areas
• Works best at 18°C-27°C (64°F-80°F)

Compatibility

Works with all 3300 XL 8mm Proximitor Sensors. Requires AISI 4140 steel targets for best results.

Safety Approvals

• CSA certified
• ATEX approved
• IECEx compliant

Package Includes

• 1x 7.5m armored cable
• Silicone tape set
• Installation guide

Support & Shipping

• 12-month product warranty
• Global shipping: FedEx, UPS, DHL
• Faster delivery options available

Professional FAQs

• Q: Can this cable prevent oil leaks?
  A: Yes, when ordered with FluidLoc™ option
• Q: What’s the maximum operating temperature?
  A: Tested for continuous use up to +80°F (27°C)
• Q: Is humidity resistance tested?
  A: Yes, certified for 93% humidity for 56 days
• Q: Does it work with non-4140 steel targets?
  A: Requires special calibration for other metals
• Q: What’s the cable bend radius?
  A: Minimum 8x cable diameter for safe installation
