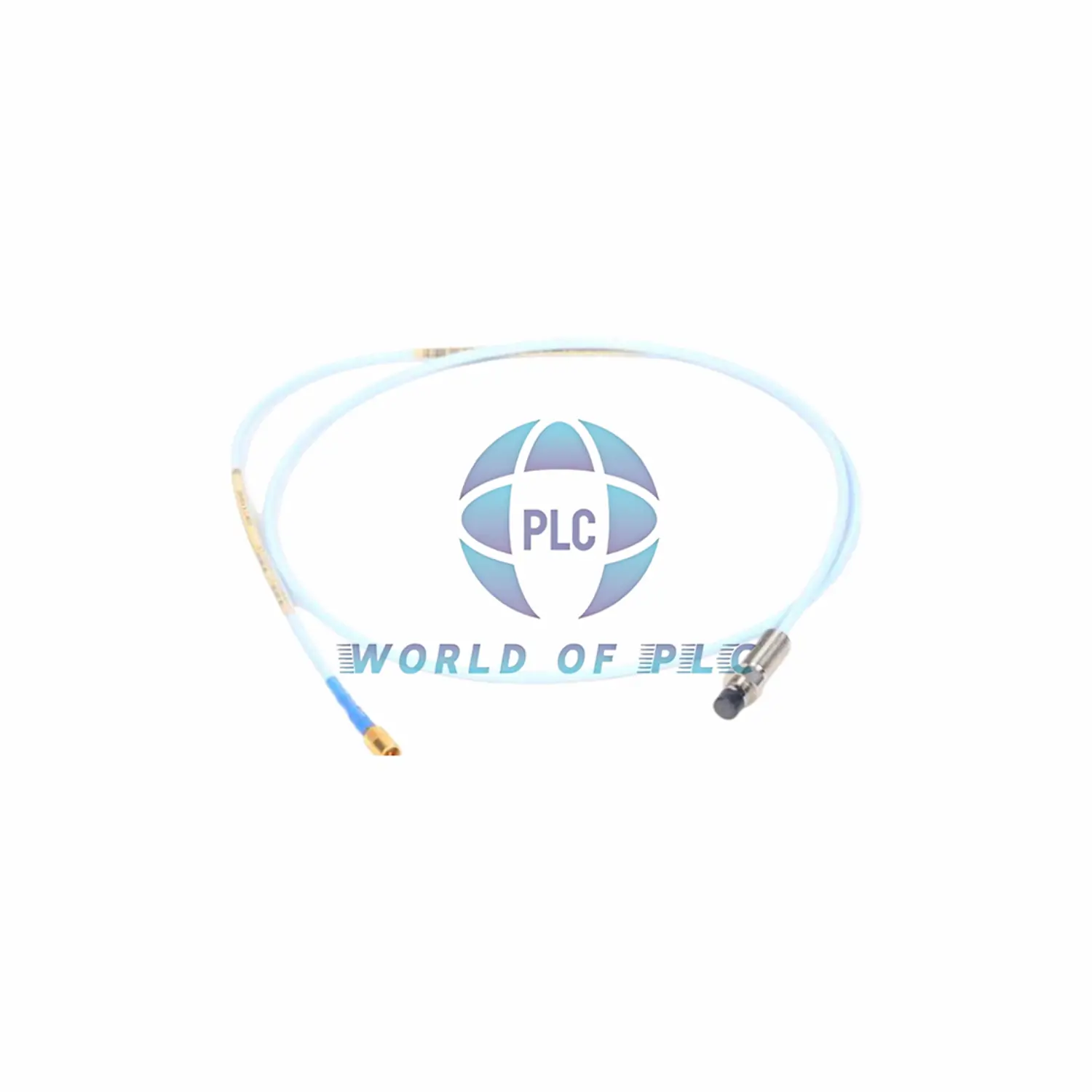

Bently Nevada 3300 XL 8mm FluidLoc Probe (Model 330140-08-50-11-00)
🛢️ Integrated Leak Prevention System
This 330140-08-50-11-00 model comes pre-equipped with FluidLoc technology – factory-installed oil/liquid containment cable. Features 330N (75 lbf) CableLoc strength and 8.73Ω ±0.5 resistance. Includes 1-year manufacturer warranty.
🔩 Configuration Breakdown
| Suffix Code | 330140-08-50-11-00 |
| Case Length | 0.8″ (08) |
| Cable Type | 5.0m FluidLoc (50) |
| Connector | ClickLoc + Protector (11) |
| Certifications | None Required (00) |
🛡️ Triple Defense Design
🔧 Tip Protection
8mm PPS encapsulation
Viton® O-ring seal
8mm PPS encapsulation
Viton® O-ring seal
⚡ Cable Security
FluidLoc + CableLoc
323g/m (11.4 oz/ft)
FluidLoc + CableLoc
323g/m (11.4 oz/ft)
🌧️ Humidity Proof
<3% ASF change @93% RH
IEC 68-2-3 compliant
<3% ASF change @93% RH
IEC 68-2-3 compliant
🎯 Calibration Specifications
• Scale Factor: 7.87 V/mm ±5% (0-45°C)
• Precision: ±0.025mm linear deviation
• Range: 80 mil (2.03mm) measurement span
🌡️ Thermal Performance Matrix
• Standard Operation: -52°C to +177°C
• Cable Endurance: +260°C peak
• Tip Limit: +218°C sustained
• Cold Warning: >-34°C for seal integrity
• Cable Endurance: +260°C peak
• Tip Limit: +218°C sustained
• Cold Warning: >-34°C for seal integrity
📜 Compliance & Documentation
• COO (Certificate of Origin) available
• Designed for 5m Proximitor systems only
• Pressure test required post-installation
• 25mm minimum bend radius required
