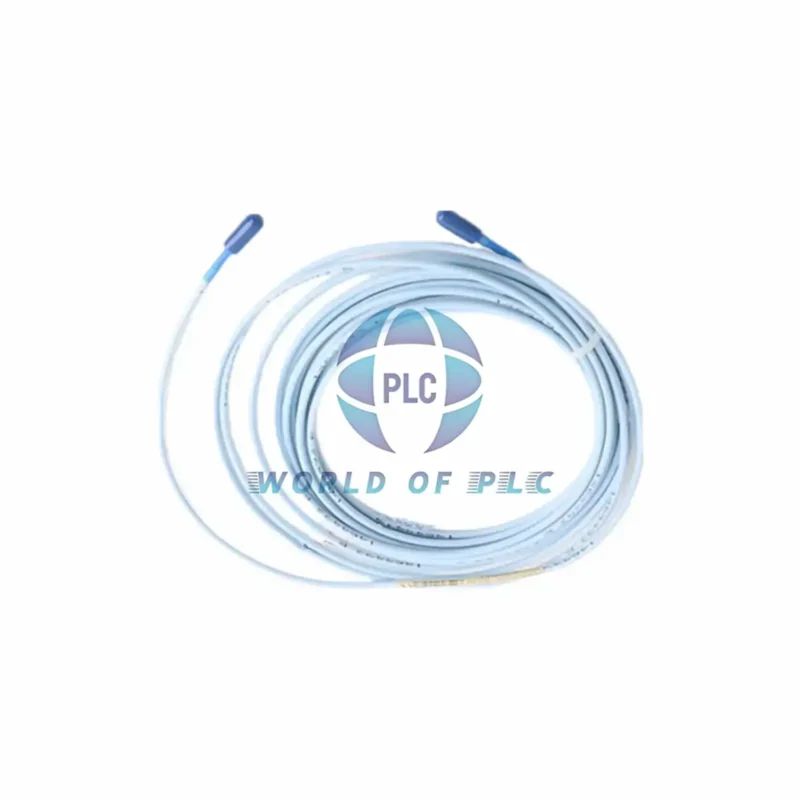

Bently Nevada 3300 XL 8mm Hazardous-Area Probe (Model 330140-08-05-01-05)
✅ Certified for Explosive Environments
Approved for dangerous zones with CSA/ATEX/IECEx certifications. Compact 1.6 ft (0.5m) design. Works from -62°F to +500°F. Includes 1-year warranty.
🔧 Key Features
- ⚡ Safe Connector: ClickLoc with protector
- 🛡️ Durable Build: Stainless steel case + thick plastic tip
- 📏 Precision: ±0.025mm accuracy
- 💧 Waterproof: Works in 93% humidity
📋 Model Details: 330140-08-05-01-05
• 08 = 0.8″ case length
• 05 = 1.6 ft cable
• 01 = Protected connector
• 05 = Explosion certification
• 05 = 1.6 ft cable
• 01 = Protected connector
• 05 = Explosion certification
🌡️ Temperature Performance
COLD RESISTANCE
Works at -62°F (-52°C)
Avoid below -30°F
HEAT TOLERANCE
Handles +500°F (+260°C)
Tip limit: 425°F
⚠️ Critical Notes
- Test pressure after installation
- Use only with 5m Proximitor systems
- Add oil-blocking cable if needed
- Request USA origin certificate (COO)
📊 Technical Specs
- Power: 7.73Ω ±0.5 resistance
- Signal: 7.87 V/mm ±5% accuracy
- Weight: 11.4 oz per foot
- Material: PPS tip + stainless steel body
