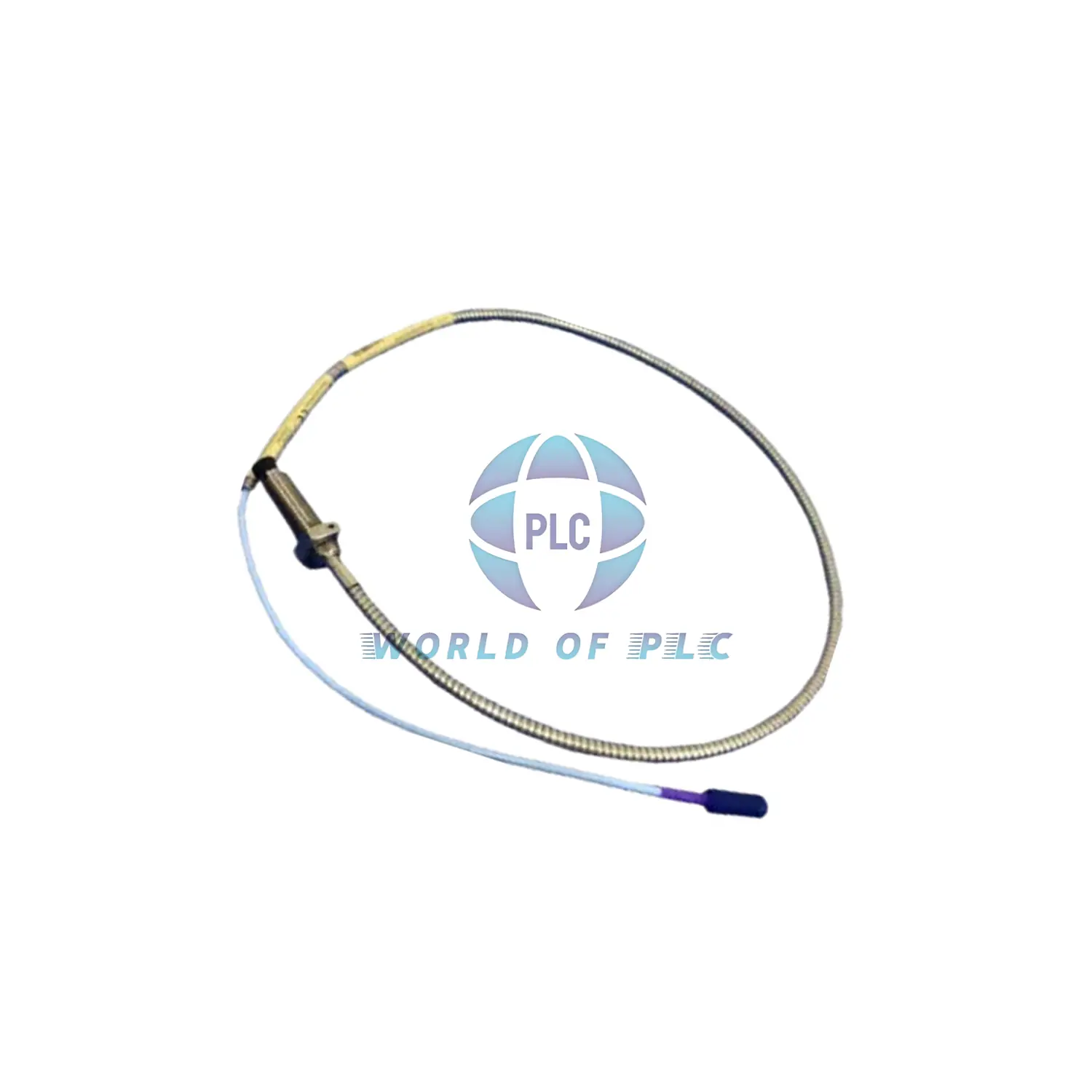

Bently Nevada – 3300 XL 11 mm Proximity Probe 330710-000-050-50-02-00

Bently Nevada 330710-000-050-50-02-00 3300 XL 11mm Proximity Probe

Product Basics

• Brand: Bently Nevada (Made in USA)
• Model: 330710-000-050-50-02-00
• Type: 3300 XL 11mm armored probe (M16x1.5 thread)

Model Breakdown

• 330710: Base 3300 XL 11mm armored probe
  • 000: 0mm unthreaded length
  • 050: Case length 50mm
  • 50: Total cable length 5.0m (16.4ft)
  • 02: Small coaxial ClickLoc connector
  • 00: No special certifications

Key Specs

• Resistance: 7.2±0.8Ω (5m probe)
• Temp Range: -52°C to 177°C (-62°F to 351°F)
• Cable: 75Ω FEP insulated (1/5/9m options)
• Bend Radius: Min 25.4mm (with/without armor)
• Materials:
  • Tip: PPS plastic
  • Case: AISI 304 stainless steel

Installation Guide

• Thread: M16x1.5 (max 24mm engagement)
• Torque:
  • Case: 63.3N·m (560 in·lb)
  • Connector: Max 0.565N·m (5 in·lb)
• Target Sizes:
  • Flat surface: ≥30.5mm (1.2in)
  • Shaft: ≥152mm (6.0in)

Important Notes

• 5m Probes: Designed for 5m Proximitor Sensors only
• Low-Temp Warning: Avoid temps below -34°C (30°F) to prevent seal damage
• Connector Care: Tighten by hand (max 0.565N·m torque)

Package & Service

• Includes: Probe, cable, installation guide
• Warranty: 12 months
