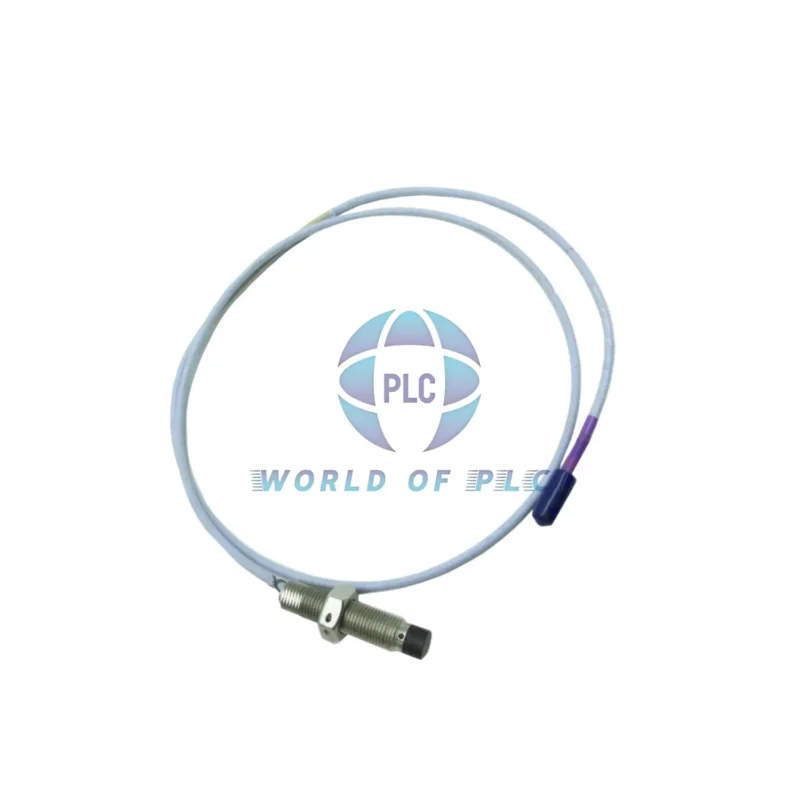

Bently Nevada 330708-00-24-10-01-05 Proximity Probe
New 3300 XL 11mm vibration sensor for industrial machines. Measures shaft movement to prevent failures. Made in USA with 12-month warranty.
Why Choose This Probe?
- ✅ Accurate 11mm shaft vibration monitoring
- ✅ Extreme temperature range: -51°C to +177°C
- ✅ Stainless steel case for tough environments
- ✅ Fast global shipping: FedEx, UPS, DHL
Model Number Explained
330708-00-24-10-01-05
- 330708: 11mm probe (5/8-18 thread)
- 00: 0″ unthreaded length
- 24: 2.4″ case length
- 10: 1.0 meter cable
- 01: ClickLoc connector
- 05: Multiple safety approvals
Technical Specifications
- Brand: Bently Nevada
- Type: 3300 XL Proximity Probe
- Size: 11mm sensor tip
- Temperature Range: -51°C to +177°C (storage & operation)
- Cable: 1.0 meter triaxial (75Ω)
- Resistance: 5.9Ω ±0.5
- Case Material: Stainless steel (AISI 304)
- Tip Material: PPS plastic
- Max Torque: 45.2 N•m
- Min Bend Radius: 25.4 mm
- Weight: 0.17 kg
Installation Notes
- Use 5/8-18 UNF threaded mounting
- Max thread engagement: 0.938 inches
- Recommended torque: 15.2 N•m
- Keep above -34°C to protect seals
Warranty & Shipping
- 12-month factory warranty
- New in original packaging
- Worldwide delivery: FedEx, UPS, DHL
Expert FAQs
- Q: Pressure rating?
A: Seals differential pressure – contact us for testing - Q: Chemical resistance?
A: PPS tip resists fuels, oils, and solvents - Q: Cable replacements?
A: Use only 75Ω triaxial FEP cables - Q: Connector torque?
A: Finger tight + max 0.565 N•m - Q: Bending protection?
A: Maintain 25.4mm minimum bend radius
