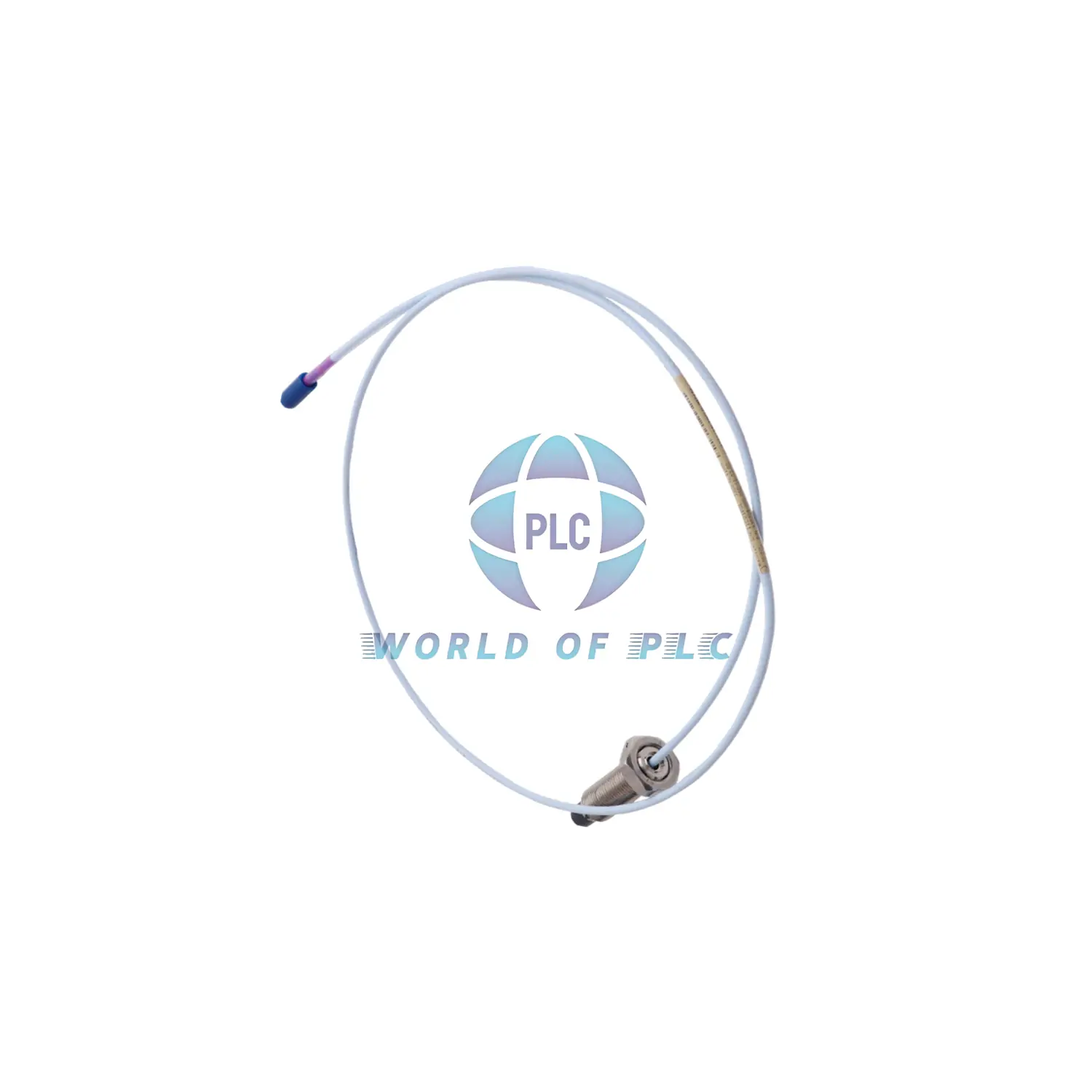

Bently Nevada 3300 XL 11 mm Proximity Probe 330701-01-20-10-02-00

Bently Nevada Compact Proximity Probe – Precision Short-Range Solution

Part Number Configuration

• 330701: 3300 XL Probe Series
• 01: 1.0″ Unthreaded Length
• 20: 2.0″ Case Length
• 10: 1.0 Meter Cable
• 02: Miniature ClickLoc Connector
• 00: No Special Approvals

Core Specifications

• Resistance: 5.9Ω ±0.5 (1m cable)
• Thread: 1/2-20 UNF industrial standard
• Cable: 75Ω triaxial FEP insulation
• Temp Range: -51°C to +177°C
• Weight: 0.17kg (lightweight)
• Seal: Viton O-ring pressure seal

Design Advantages

• Compact 2″ case for tight spaces
• PPS tip material resists wear
• Stainless steel housing for durability
• Short 1m cable reduces clutter
• Made in USA quality

Installation Guide

• Max Thread Engagement: 0.750″
• Recommended Torque: 15.2 N•m
• Min Bend Radius: 25.4mm
• Keep above -34°C to protect seals
• Finger-tight connector installation

Shipping & Support

• 12-month manufacturer warranty
• Express shipping: FedEx/UPS/DHL
• Global delivery

Technical FAQ

Q: Why choose short 1m cable?
A: Ideal for confined spaces with minimal cable run

Q: Minimum operating temperature?
A: -34°C to prevent seal damage

Q: Pressure rating of seal?
A: Viton O-ring (contact for pressure testing)

Q: Alternative cable lengths?
A: Available in 1m, 5m, 9m options

Q: Thread compatibility options?
A: M16x1.5 also available
