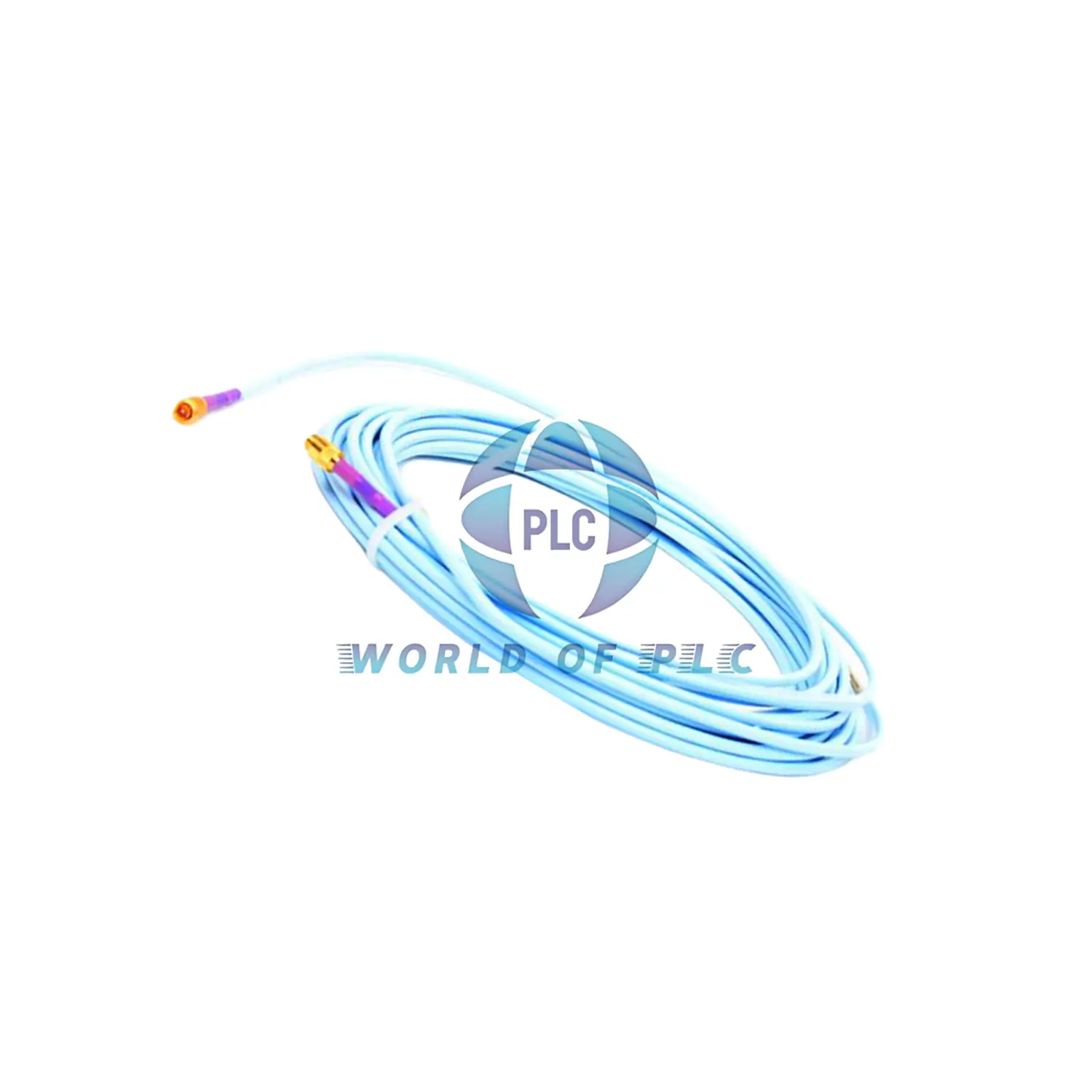

Bently Nevada – 3300 XL 11 mm Extension Cable 330730-080-10-05

Bently Nevada FluidLoc Extension Cable: Long-Range Industrial Solution

8-meter cable with FluidLoc technology prevents oil leaks in critical machinery monitoring. Multiple international certifications included.

Product Identification

Suffix Configuration

• 080 – Cable length: 8 meters
• 10 – FluidLoc cable type
• 05 – Multiple agency approvals

Electrical Specifications

• Core Resistance: 2.0Ω ±0.5
• Jacket Resistance: 0.6Ω ±0.2
• Capacitance: 69.9 pF/m
• Impedance: 75Ω triaxial
• Insulation: FEP material

Mechanical Specifications

• Connectors: Gold-plated brass
• Pull Strength: 330N (75 lb)
• Locking System: ClickLoc secure connection
• Safety Feature: Pre-drilled safety wire holes

Environmental Ratings

• Temperature Range: -51°C to +177°C
• Fluid Protection: Prevents oil migration
• Humidity Resistance: 5-95% non-condensing
• Material: FEP outer jacket

Installation Guide

• Max system length: 305 meters
• Wire gauge: 16-24 AWG
• Includes silicone tape for connections
• Use connector protectors in wet areas
• Do not expose to turbine oil without protection

Compatibility

Works with all 3300 XL 11mm probes with thread types: ½-20, 5⁄8-18, M14X1.5, M16X1.5, 3⁄8-24, M10X1.

Package Contents

• 1x 8m FluidLoc extension cable
• Silicone sealing tape
• Installation instructions
• 12-month manufacturer warranty

Shipping Options

FedEx | UPS | DHL – Worldwide delivery

FAQ

Q: What is FluidLoc technology?
A: Special seal prevents oil leakage through cable.

Q: Why choose 8m length?
A: For long-distance connections between probe and monitor.

Q: Chemical resistance?
A: FEP material resists industrial chemicals.

Q: Can I use in high-temperature areas?
A: Yes, rated for +177°C (351°F).

Q: Warranty period?
A: 12 months against manufacturing defects.
