Bently Nevada – 3300 NSv Extension Cable 330930-060-01-00

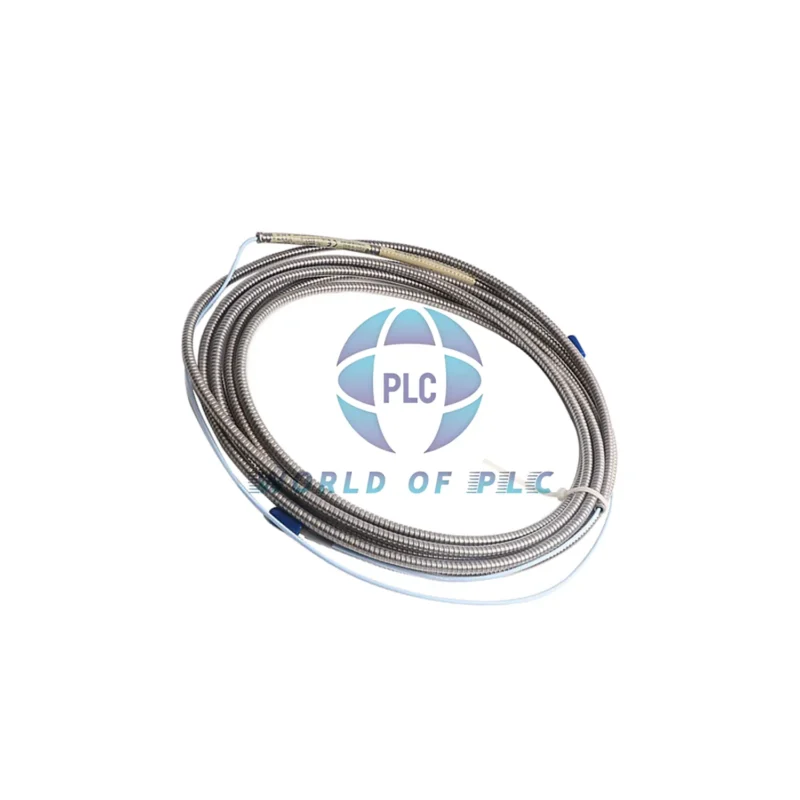

Bently Nevada 3300 NSv Armored Extension Cable: Built Tough for Extreme Conditions

Boost your machinery monitoring with the 330930-060-01-00 cable. This 6.0m armored solution from Bently Nevada features dual-layer FEP protection for maximum durability in harsh industrial environments. Made in USA.

Complete Model Breakdown

• Full Model: 330930-060-01-00
• Key Features:
  • 060 = 6.0 meter length
  • 01 = Stainless armor + FEP jacket
  • 00 = No agency approvals required

Critical Specifications

• Signal Type: 75 Ω coaxial vibration data
• Temp Range: -51°C to +177°C (-60°F to +351°F)
• Resistance: Center 0.220 Ω/m | Shield 0.066 Ω/m
• Capacitance: 69.9 pF/m (low signal loss)
• Armor Strength: Flexible AISI 302 stainless steel
• Max Pull Force: 220N (50 lb) at all connection points

Setup Guide

• Probe + extension length must match system total
• Max distance from sensor to monitor: 305m
• Use 16-24 AWG shielded triad cable for field wiring
• Set gap to 1.0mm (40 mils) for optimal readings

Works With

All Bently Nevada 3300 XL NSv Proximitor Sensors. Ideal for turbines, compressors, and rotating equipment.

What’s Included

• 1× 6.0m extension cable (19.7 feet)
• 12-month defect warranty
• Weight: 1.5kg – ships worldwide via FedEx/UPS/DHL

Expert Answers

• Q: What’s the key difference between 01 and 02 suffix?
  A: 01 has extra FEP jacket over armor for chemical protection
• Q: Can I use this in sub-zero environments?
  A: Yes, rated for continuous use at -51°C
• Q: Maximum voltage capacity?
  A: Designed for -13Vdc signals in vibration systems
• Q: Is special tooling required for installation?
  A: No – standard industrial connectors
• Q: How quickly can you ship?
  A: Same-day dispatch via global carriers

Get Full Documentation

Download installation guide and technical specs: 3300 XL NSv Proximity Transducer System Datasheet for the complete 3300 NSv Extension Cable manual
