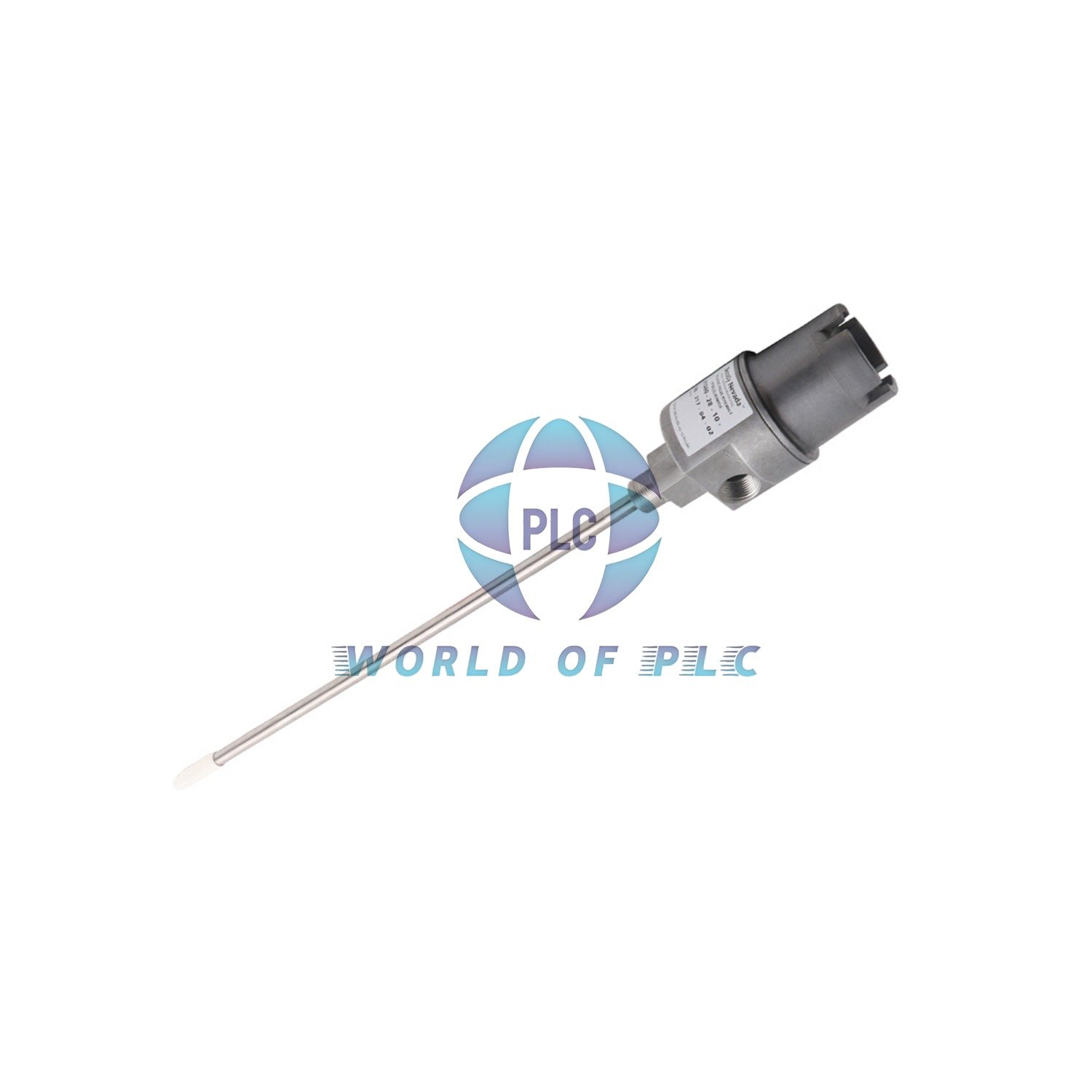

Bently Nevada – 21000-28-05-20-050-03-02 – Proximity Probe Housing Assembly

Product Summary

Model 21000-28-05-20-050-03-02 by Bently Nevada is a new proximity probe housing with 1-year warranty. Designed for safety and accuracy in harsh environments.

Suffix Details for 21000-28-05-20-050-03-02

• 28: 8 mm probe with explosion-safe approvals
• 05: 0.5 m (20-inch) cable
• 20: 2-inch standoff adapter
• 050: 5-inch probe depth
• 03: Includes 3/4-14 NPT plug, reducer, and 3-size cable seals
• 02: 3/4-14 NPT threads for mounting

Key Specs

• Weight: 2.4 lbs (1.1 kg)
• Size: 13.5-inch total length
• Material: Aluminum + stainless steel
• Temp Range: -50°C to +80°C

Safety Features

• Approved for explosive areas (Class I/II/III groups C-G)
• Certified by CSA and RoHS
• Works with 21000 and 24701 housings
• API 670 standard compliant

What’s Included

• Dome cover with seals
• 5-inch probe sleeve
• 3 pipe fittings
• Installation sealant
• Safety certificates
