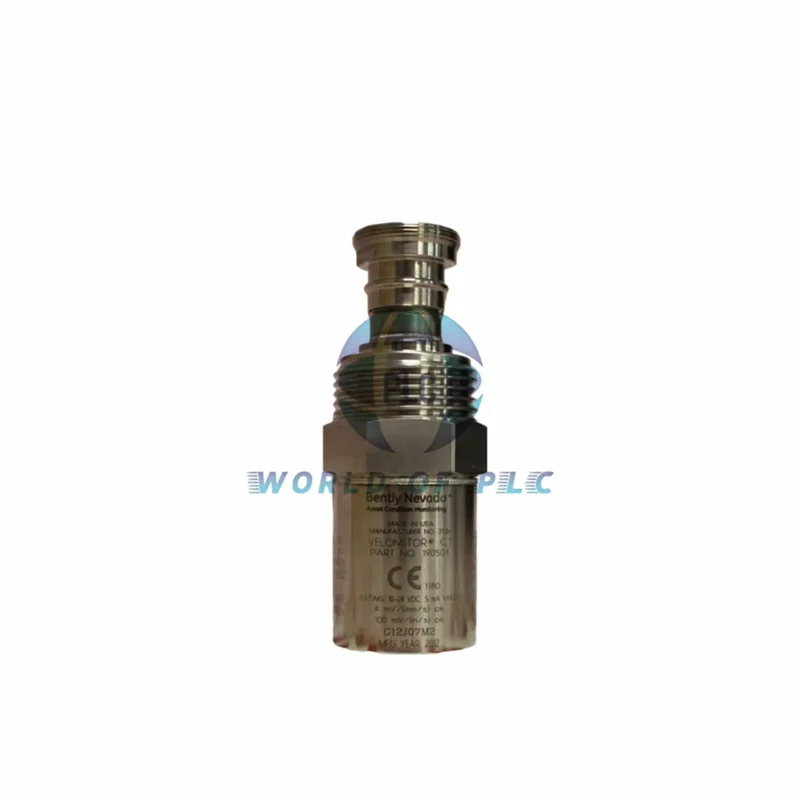

190501-00-00-04 Technical Breakdown
▸ Core Measurements
Vibration Capture: 1.5Hz-1kHz (90-60k CPM)
Shock Survival: 5000g Peak Resistance
Signal Stability: ±0.5% Voltage Shift @ 50°C
Ingress Protection: IP66 Dust/Water Resistance
▸ Hazard Zone Applications
Petrochemical → Flare Gas Compressor Monitoring Wind Energy → Gearbox Vibration Analysis Pharma → Centrifuge Imbalance Detection
▸ Model Code Structure (190501-00-00-04)
190501
├─ 00 : Flat Surface Mount
├─ 00 : Military-grade Connector
└─ 04 : Zone 0 Explosion Certification
▸ Failure Prevention Cases
| Steel Mills | Detect Roller Misalignment | → 63% Maintenance Cost Cut |
| Water Plants | Pump Cavitation Early Warning | → 400hrs/yr Saved |
▸ Connection Details
- Pin Configuration
- A (+10.1VDC) → Vibration Signal Output
- B (-) → Isolated Ground Path
- Cable Compatibility
- Shielded Twisted Pair ≥22AWG
