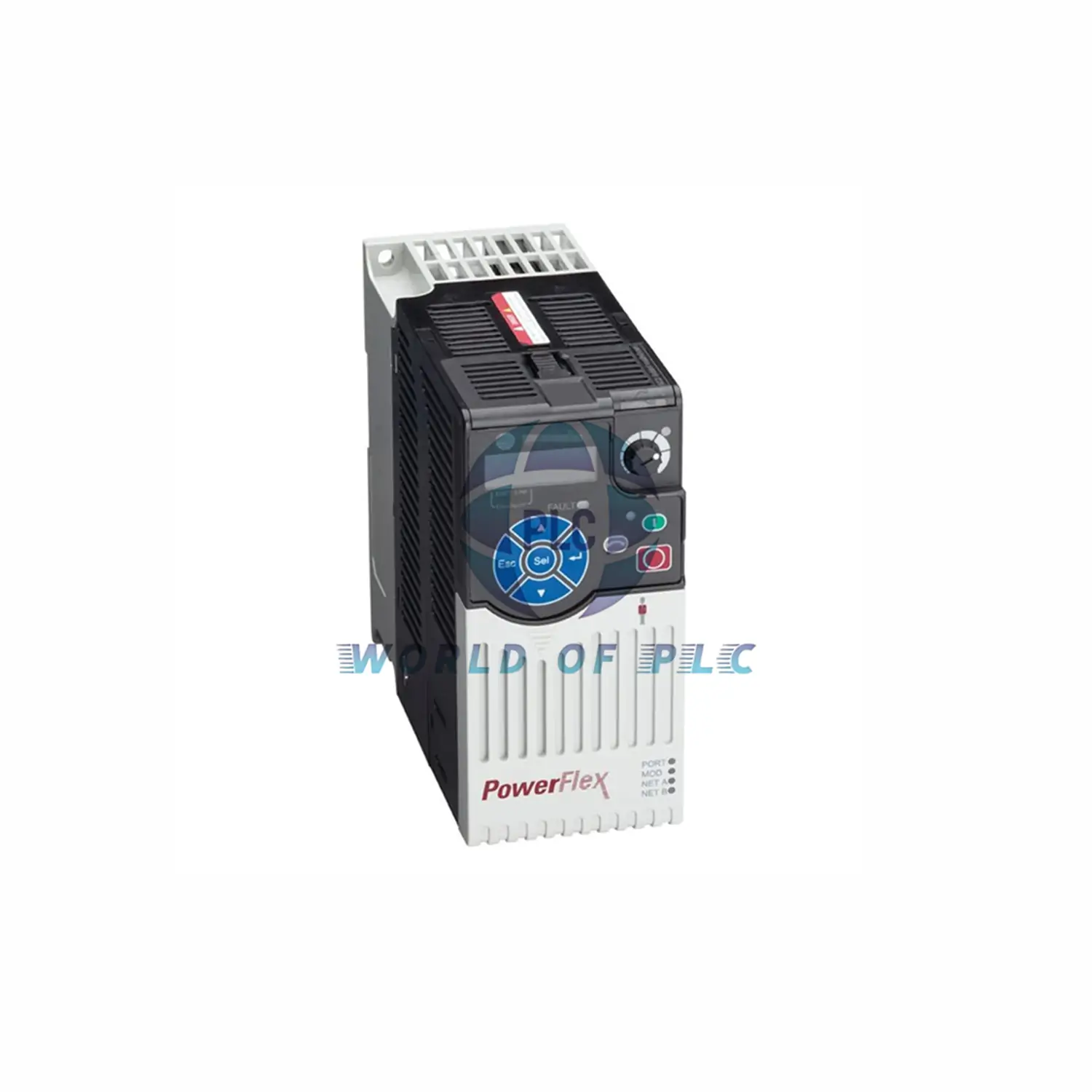

Allen-Bradley PowerFlex 525 AC Drive | 25B-B032N104

Allen-Bradley 25B-B032N104 PowerFlex 525 Drive – 10HP Industrial Power

The 25B-B032N104 delivers robust 10HP (7.5kW) motor control with 32.2A output. Perfect for heavy-duty industrial applications requiring precise speed and torque control.

Key Features

• High power – Handles 10HP motors easily
• Flexible control – 7 digital inputs, 2 analog inputs
• Easy setup – Built-in LCD keypad
• Network ready – Ethernet/IP connectivity

Technical Specifications

• Model: 25B-B032N104 (PowerFlex 525 Series)
• Input: 170-264V AC, 3-Phase, 34.8A
• Output: 0-240V AC, 3-Phase, 32.2A
• Power: 7.5kW (10HP)
• Control Methods: V/Hz, Vector, PWM
• Frame Size: D (Compact design)
• Safety: Safe-Torque-Off included
• Cooling: Air-cooled

Communication Options

• EtherNet/IP
• DeviceNet (optional)
• ProfiBus DP (optional)
• USB for programming

Package Contents

• 25B-B032N104 drive unit
• Mounting brackets
• Quick start manual

Warranty & Shipping

12-month warranty. Ships via FedEx, UPS, or DHL with tracking.

Expert FAQs

• Q: What’s the difference between normal and heavy-duty operation?
  A: Heavy-duty means continuous operation at full load.
• Q: Can this drive work with single-phase input?
  A: No, it requires 3-phase 240V input.
• Q: Does it include an EMC filter?
  A: No, but external filters can be added.
• Q: What motors work with this drive?
  A: Most 3-phase AC motors up to 10HP.
• Q: How do I program advanced features?
  A: Use the USB port with Rockwell software.

Similar Models

• 25B-D013N114 (1HP, 480V)
• 25B-D017N104 (1.5HP, 480V)
