Allen-Bradley Powerflex 4M AC Drive | 22F-D6P0N103

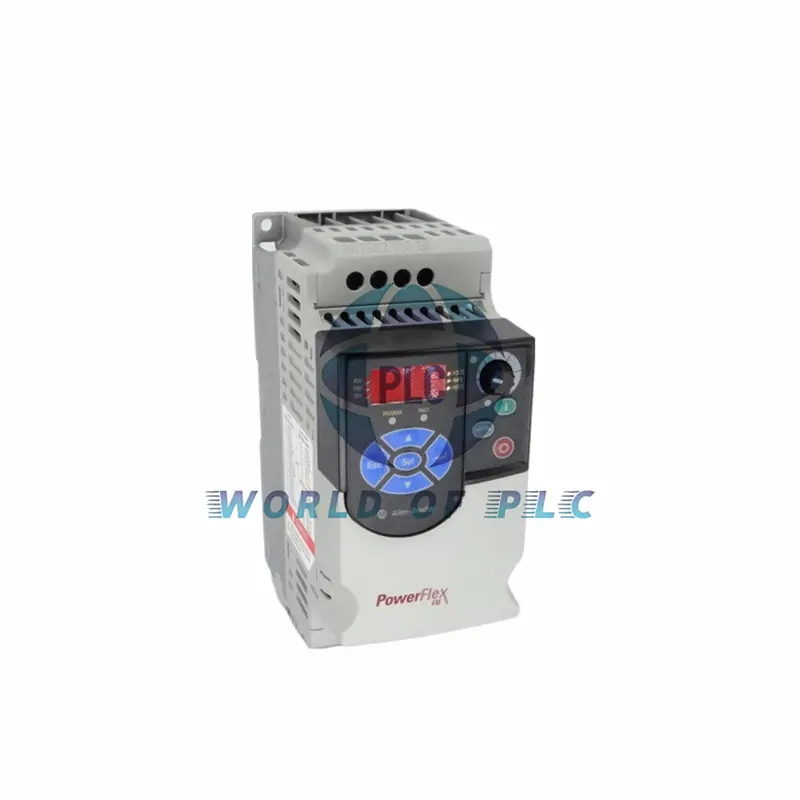

Allen-Bradley 22F-D6P0N103 PowerFlex 4M Drive – 3 HP Motor Control

The 22F-D6P0N103 PowerFlex 4M drive controls motors up to 3 HP (2.2 kW). Works with 480V 3-phase power. Get the full manual here.

Technical Details

• Model: 22F-D6P0N103 (PowerFlex 4M)
• Input: 380-480V AC, 3-Phase, 6A
• Output: 0-460V AC, 6A, 2.2 kW
• Size: 3.94″ W × 6.85″ H × 5.35″ D (100×174×136 mm)
• Weight: 4.6 lbs (2.1 kg)
• Display: 4-digit LED with 10 status lights
• I/O: 5 digital inputs, 1 relay output, 2 analog inputs
• Max Temp: 50°C (122°F)

What You Get

• 1x 22F-D6P0N103 drive unit
• Mounting hardware
• Quick-start guide
• 12-month warranty

Shipping Info

Fast delivery via FedEx, UPS, or DHL.

Common Questions

1. Can I mount this on a DIN rail?
   Yes, both DIN rail and panel mounting supported.
2. Does it work with single-phase motors?
   No, for 3-phase motors only.
3. What’s the warranty period?
   12 months from purchase date.
4. Can I network multiple drives?
   Yes, via RS485 communication.
5. Is the keypad removable?
   No, it’s built into the unit.

Need setup help? Download the manual for wiring and programming.
