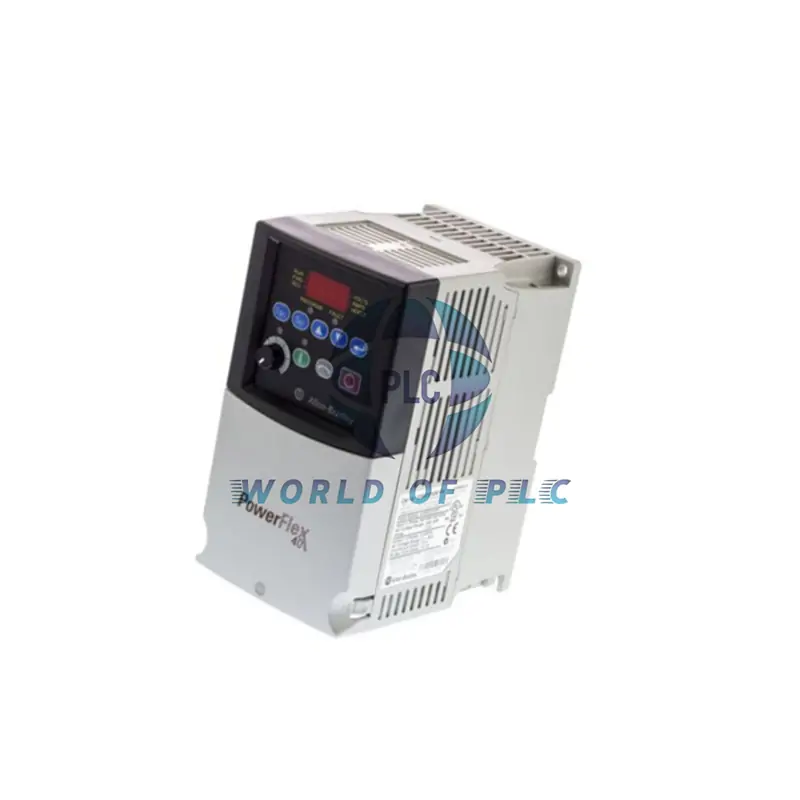

Allen-Bradley PowerFlex 40P AC Drive 22D-E4P2N104

Allen-Bradley PowerFlex 40P Drive – 22D-E4P2N104

Precision Motor Control for Demanding Applications

The Allen-Bradley 22D-E4P2N104 delivers reliable 3 HP motor control in a compact package. With 600V AC input and 4.2A output, this drive handles tough industrial tasks with ease.

Key Benefits

• 150% overload capacity – Handles power surges
• Removable protection – Easy maintenance
• Precise speed control – ±1% base speed accuracy
• Multiple inputs – 5 programmable digital controls
• Wide temperature range – Works from -40°F to 185°F

Complete Technical Specifications

• Model: 22D-E4P2N104
• Power: 3 HP (2.2 kW)
• Current: 4.2A output
• Voltage Range: 414-660V AC
• Frequency: 48-63Hz (±10%)
• Speed Control: ±1% base speed (80:1 range)
• Protections: Overload, ground fault, bus voltage
• Inputs: 5 digital, 2 analog (0-10V/4-20mA)
• Communication: RS-485 port
• Dimensions: Standard Frame B

Installation Made Simple

• Panel mount or DIN rail options
• Keep 2 inches clearance for cooling
• Use in dry locations only

What’s Included

• Drive unit
• Mounting hardware
• Quick start manual

Warranty Protection

12-month coverage on all components.

Expert Answers

• Can it handle voltage fluctuations?
  Yes, works from 414V to 660V AC.
• What motor types does it support?
  3-phase induction motors only.
• Is programming difficult?
  No, uses simple HIM interface.
• How fast can it stop a motor?
  Multiple stop modes including instant brake.
• Can I network multiple drives?
  Yes, through RS-485 connection.
