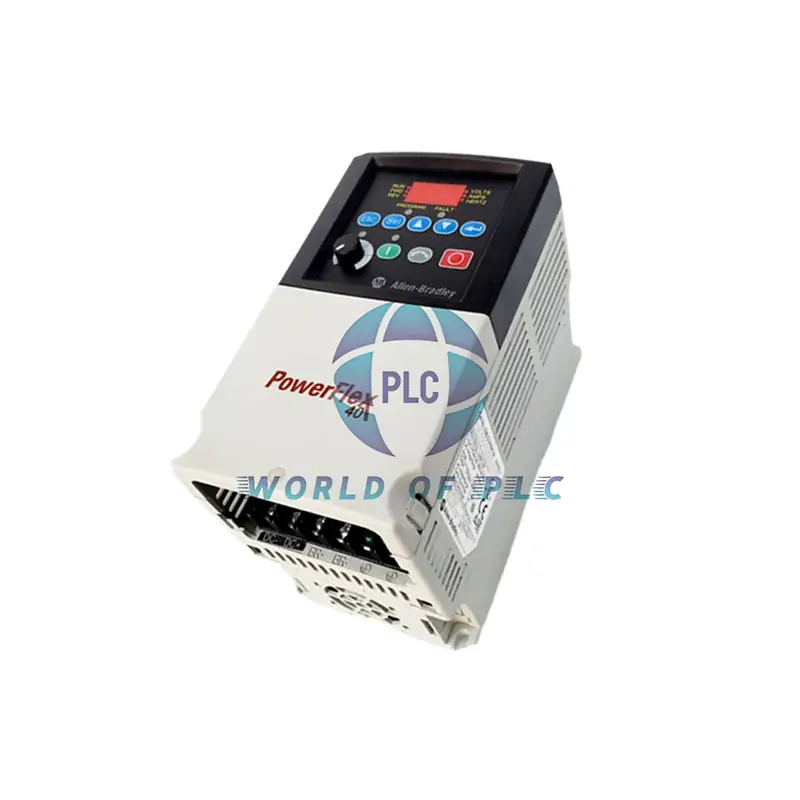

Allen-Bradley PowerFlex 40P AC Drive 22B-D2P3F104

Allen-Bradley 22B-D2P3F104 PowerFlex 40 Drive – 1HP Compact Control

Essential Features

• 1HP (0.75kW) precision motor control
• 480V AC 3-phase industrial power
• 2.3A output current
• Flange mount for secure installation
• Built-in RS-485 communication
• Energy-saving sensorless vector control

Complete Specifications

• Voltage Range: 342-528V AC (±10%)
• Input Current: 3.2A
• Power Dissipation: 40W
• Control Method: Sensorless Vector (SVC)
• I/O Configuration:
  • 3 fixed + 4 programmable digital inputs
  • 2 analog inputs (0-10V/4-20mA)
  • 1 relay output + 2 digital outputs
• Dimensions: 250×244×157mm
• Operating Temp: -10°C to 50°C
• Storage Temp: -40°C to 85°C
• Max Altitude: 1000m (3300ft)

Advanced Capabilities

• High starting torque (150% for 60s)
• Autotune for motor adaptation
• Optional dynamic braking (AK-R2-360P500)
• Remote HIM compatibility

Professional FAQs

• What’s the torque performance?
• Delivers 150% starting torque for heavy loads.
• Can I add communication modules?
• Yes, supports various protocol adapters.
• Is the keypad removable?
• Yes, can be replaced with remote HIM.
• What braking options exist?
• Built-in IGBT brake + optional resistor.
• How does it save energy?
• Optimizes motor performance reducing consumption.
