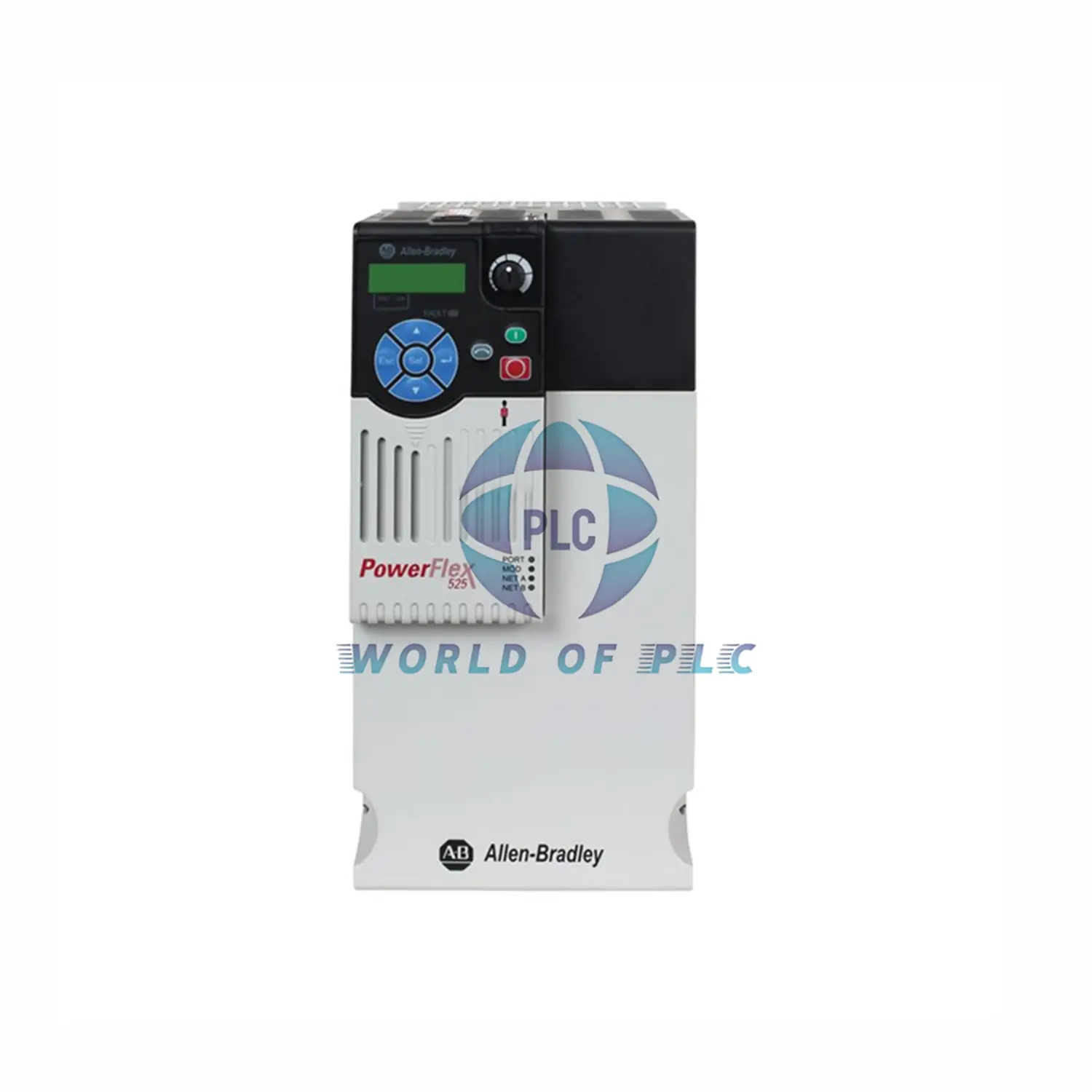

Allen-Bradley PowerFlex 525 VFD – 25B-A2P5N104 (0.5 HP, 1-Phase Input)
Description
The Allen-Bradley 25B-A2P5N104 is a compact and efficient PowerFlex 525 Variable Frequency Drive (VFD) designed for precise motor speed control. It supports 1-phase input (170-265VAC) and delivers 3-phase output (0-240VAC) with a power rating of 0.4kW (0.5 HP). Ideal for industrial applications like manufacturing, water treatment, and oil & gas, this drive features built-in Ethernet/IP and supports optional communication protocols.
Technical Data
| Brand | Allen-Bradley (Rockwell Automation) |
| Model | 25B-A2P5N104 (Full Suffix: 25B-A2P5N104) |
| Input Voltage | 170-265VAC, 1-Phase |
| Output Voltage | 0-240VAC, 3-Phase |
| Output Current | 2.5A |
| Power Rating | 0.4kW (0.5 HP) |
| Frequency Range | 0-500Hz |
| Operating Temperature | -20°C to 50°C (with derating up to 60°C) |
| Communication | EtherNet/IP (Built-in), Optional: DeviceNet, Profibus DP |
| Enclosure | IP20 / NEMA Open (Frame A) |
| Dimensions | 152.0mm (H) x 72.0mm (W) x 172.0mm (D) |
Installation Guide
Mount the drive on a DIN rail or panel in a well-ventilated area. Ensure the environment is free from corrosive gases, dust, or excessive moisture. Follow the manufacturer’s wiring guidelines for safe operation.
Compatibility
Works with 3-phase AC motors up to 0.5 HP. Compatible with Rockwell Automation software for programming and diagnostics.
Certifications
Complies with IEC 60721-3-3 (3C2) standards for industrial environments.
Packaging & Shipping
- Includes: 1x PowerFlex 525 Drive (25B-A2P5N104), User Manual
- Shipping: FedEx, UPS, or DHL (Express options available)
Warranty
12-month limited warranty from the date of purchase. Contact support for claims.
Note: For optimal performance, avoid installation in high-humidity or corrosive environments.
