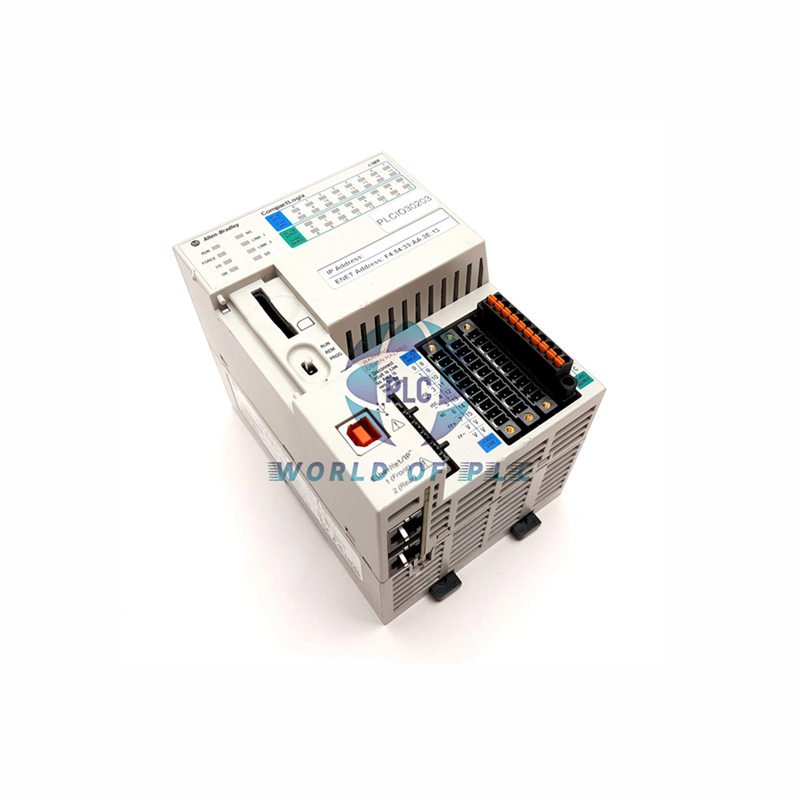

Allen-Bradley 1769-L18ER-BB1B | CompactLogix PAC with Built-in I/O
All-In-One Automation Power
The Allen-Bradley 1769-L18ER-BB1B packs big control in small space. This ready-to-run controller has 32 built-in I/O points, dual Ethernet ports, and supports 8 expansion modules. Perfect for compact machines needing smart control.
Key Specifications
| Brand | Allen-Bradley | Model | 1769-L18ER-BB1B |
| Inputs | 16 × 24VDC | Outputs | 16 × 24VDC |
| Memory | 512KB + 1GB SD card | Ethernet Ports | 2 (10/100 Mbps) |
| Expansion | 8 Point I/O modules | Power | 24VDC ±10% |
| Temp Range | 0°C to 60°C | Mounting | DIN Rail |
Simple Setup
- Connect 24VDC power (20-28V range)
- Snap onto DIN rail – no tools needed
- Use Cat5e cables for Ethernet networks
- Add up to 8 Point I/O modules
Works With
- All 1734 Point I/O modules
- Studio 5000 programming software
- 1784-SD2 memory cards (2GB upgrade)
- EtherNet/IP devices
Certified Safe
Meets global standards for industrial safety and electrical noise protection.
Package Contents
- 1769-L18ER-BB1B controller
- 1GB SD memory card (1784-SD1)
- Quick start guide
Warranty & Shipping
12-month product warranty. Ships fast via FedEx, UPS, or DHL worldwide.
Expert Questions
Q: How many I/O points total?
A: 32 built-in points + expansion modules
Q: Is battery needed for memory?
A: No – uses capacitor backup system
Q: Max Ethernet cable length?
A: 100 meters (328 feet)
Q: What protocols work on USB?
A: USB for programming only – not communication
Q: Can I use in wet areas?
A: No – keep in dry location below 60°C
Get Started Today
- Download full installation guide
- See programming examples
- Learn wiring best practices
- Download Controller Manual Here
