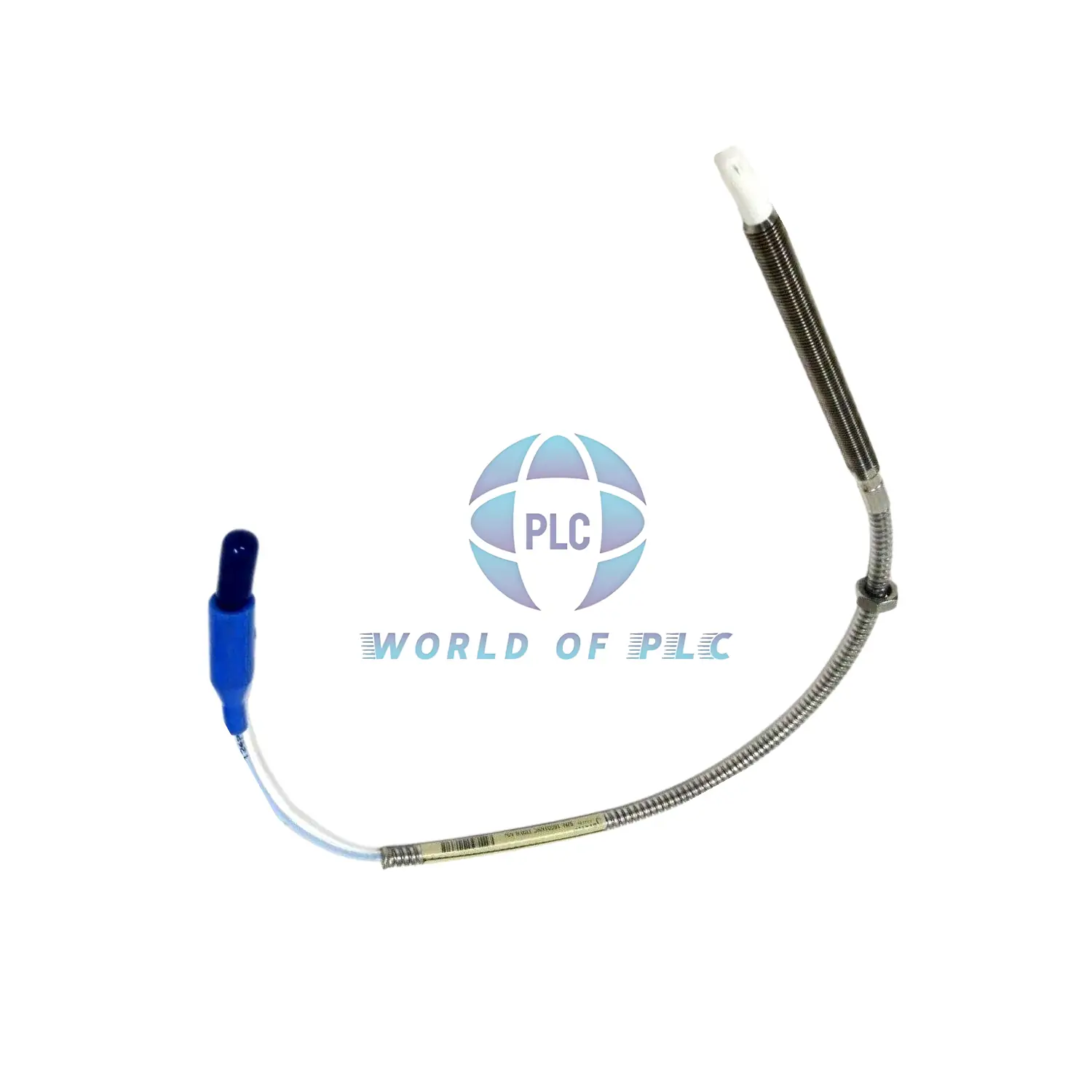

330909-00-20-70-01-00 With armor – 3300 NSv Proximity Probes

3300 NSv Long-Reach Probe: 7-Meter Industrial Sensing Solution

Extended 23-foot armored cable probe for hard-to-reach machinery. Made in USA with stainless steel body and protective connector cap. 12-month warranty • Ships worldwide via FedEx/UPS/DHL.

Model Breakdown

• 330909-00 – Base probe model
• -20 – 2.0 inch case length
• -70 – 7.0 meter cable (23 feet)
• -01 – ClickLoc connector with protector
• -00 – No agency approvals

Critical Specifications

• Brand: Bentley Nevada
• Resistance: 5.9Ω ±0.9Ω (7m cable)
• Thread: 3/8-24 UNF
• Cable Type: 75Ω coaxial FEP insulated
• Case Length: 2.0 inches
• Weight: 85g (typical)
• Temp Range: -52°C to +177°C

Installation Guide

Optimal torque: 11.3 N•m (100 in•lb)
Max thread depth: 0.563 inches
Keep above -34°C (-30°F) for seal integrity
First 3 threads max torque: 22.6 N•m

Package Contents

3300 NSv Probe with 7m cable
ClickLoc connector with protective cap
Mounting hardware set
12-month manufacturer warranty

Frequently Asked Questions

• Q: Cable length impact on readings?
  A: Resistance increases with length – calibrated for 7m
• Q: Protector removal required?
  A: Remove before installation – protects during transport
• Q: Maximum cable distance?
  A: Works up to 7m without signal amplifiers

Download Installation Guide:
Click for probe manual PDF – Includes torque specs and wiring diagrams
