330902-00-40-05-01-05 With armor- 3300 NSv Proximity Probes

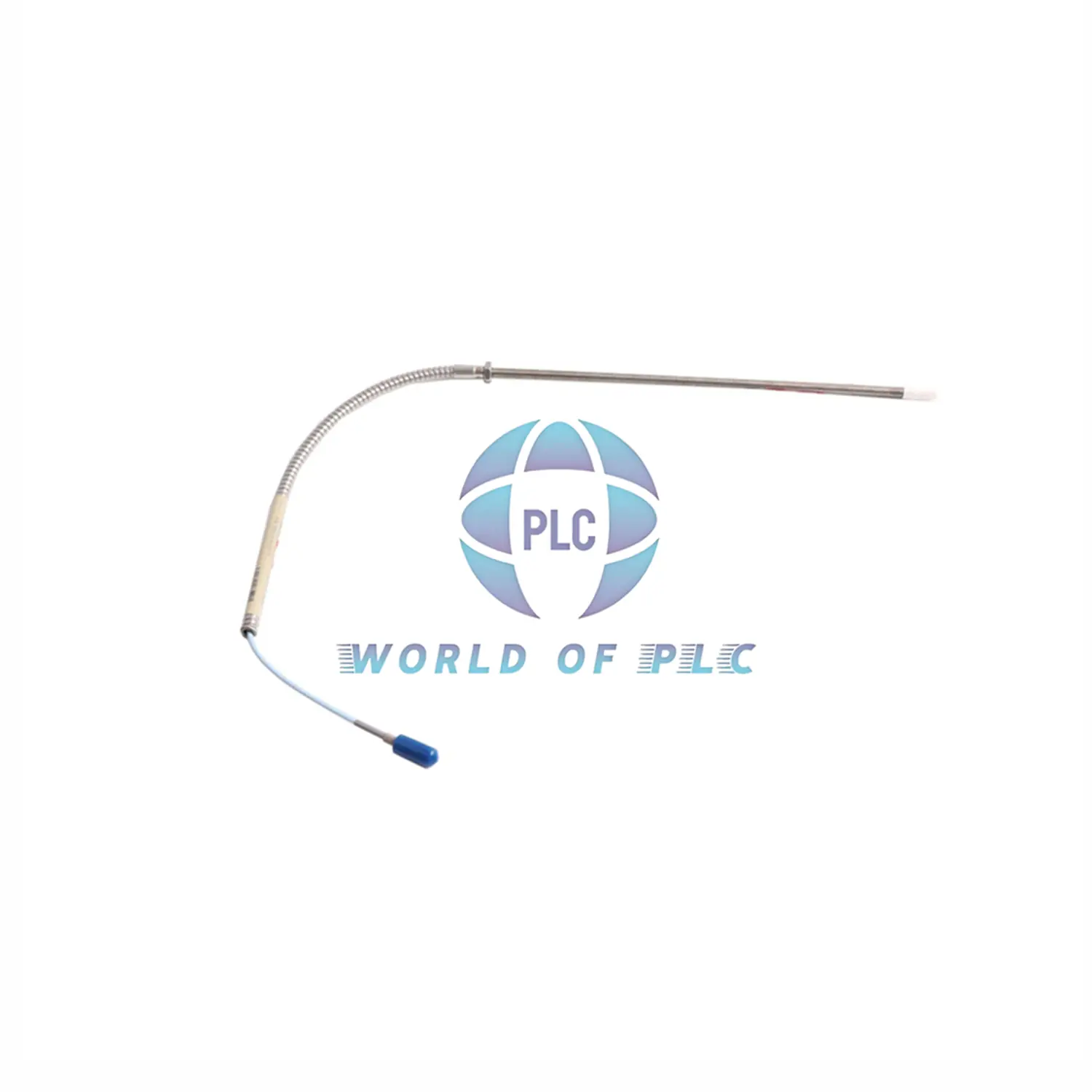

330902-00-40-05-01-05 3300 NSv Proximity Probe with Armor

Model Info

• Model: 330902-00-40-05-01-05
• Thread: 1/4-28 UNF with armor
• Unthreaded Length: 0 inch (Code 00)
• Case Length: 4 inches (Code 40)
• Cable Length: 0.5 meter (Code 05)
• Connector: Mini ClickLoc with protector (Code 01)
• Approvals: Multiple (Code 05)

Key Specs

• Range: 0.002 to 9 mm
• Output: AC signal for 3300 XL system
• Accuracy: ±3%
• Working Temp: -52°C to +177°C
• Storage Temp: -52°C to +177°C
• Cable: 75 Ω coaxial, FEP insulated
• Resistance (0.5 m cable): 4.0 ± 0.5 ohms
• Weight: 14 to 150 grams
• Case: Stainless steel AISI304
• Tip: Polyphenylene sulfide (PPS)

Installation Guide

• Use 5.1 N·m torque to tighten
• Max torque 7.3 N·m
• Max thread depth 0.375 inch
• Clean threads before installing
• Check that O-ring is fitted

Applications

• Monitors pumps, turbines, compressors
• Used in oil, gas, power, and chemical plants
• Good for hot and vibrating areas
• Fits tight spaces

Shipping

• Ships via FedEx, UPS, DHL
• Secure packaging
• Tracking number included

Warranty

• 12 months limited warranty
