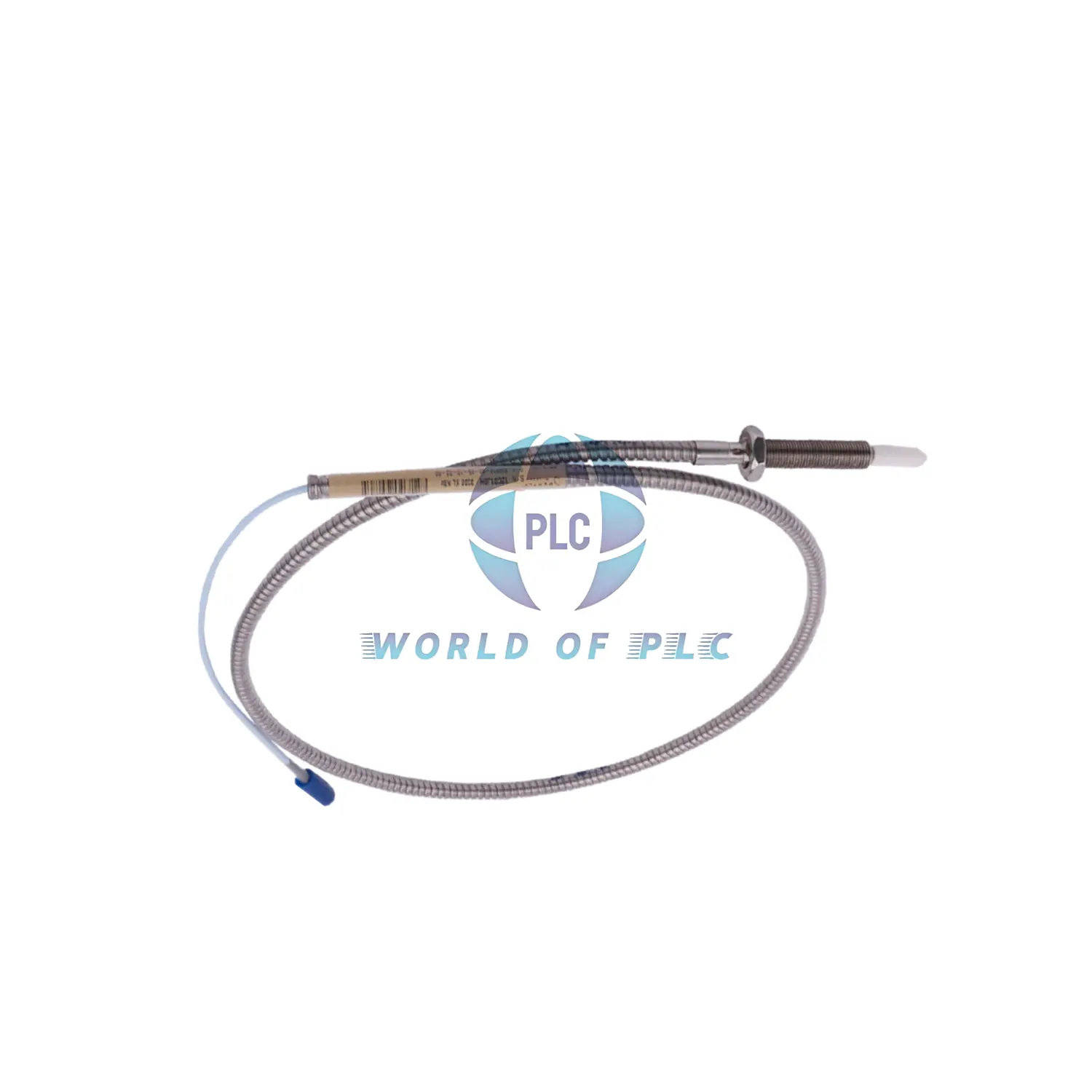

330902-00-40-05-01-00 With armor- 3300 NSv Proximity Probes

330902-00-40-05-01-00 3300 NSv Proximity Probe with Armor – Full Product Details

Model Code Breakdown

• Product Number: 330902-00-40-05-01-00
• Series: 3300 NSv Proximity Probe
• Thread Type: 1/4-28 UNF with armor
• Unthreaded Length: 0.0 inch (Code 00)
• Case Length: 4.0 inches (Code 40)
• Cable Length: 0.5 meter (20 inches) (Code 05)
• Connector Type: ClickLoc with protector, standard coaxial cable (Code 01)
• Agency Approval: Not required (Code 00)

Technical Specifications

• Measurement Range: 0.002 mm to 9 mm shaft motion
• Signal Type: AC output, supports 3300 XL systems
• Accuracy: ±3% of full scale
• Operating Temperature: -52°C to +177°C
• Storage Temperature: -52°C to +177°C
• Warning: Long exposure below -34°C may damage seal
• Cable Specs: 75 Ω coaxial, FEP insulated
• DC Resistance: 4.0 ± 0.5 ohms (at 0.5 m)
• Weight: About 14 to 150 grams
• Case Material: AISI304 stainless steel
• Tip Material: PPS (Polyphenylene sulfide)

Installation Guide

• Recommended Torque: 5.1 N·m (45 in·lb)
• Maximum Torque: 7.3 N·m (65 in·lb)
• Max Thread Engagement: 0.375 inch
• Clean and dry mounting area before use
• Ensure the O-ring is intact to seal pressure
