330710-000-050-50-02-CN | 3300 XL 11 mm Proximity Probe | Bently Nevada

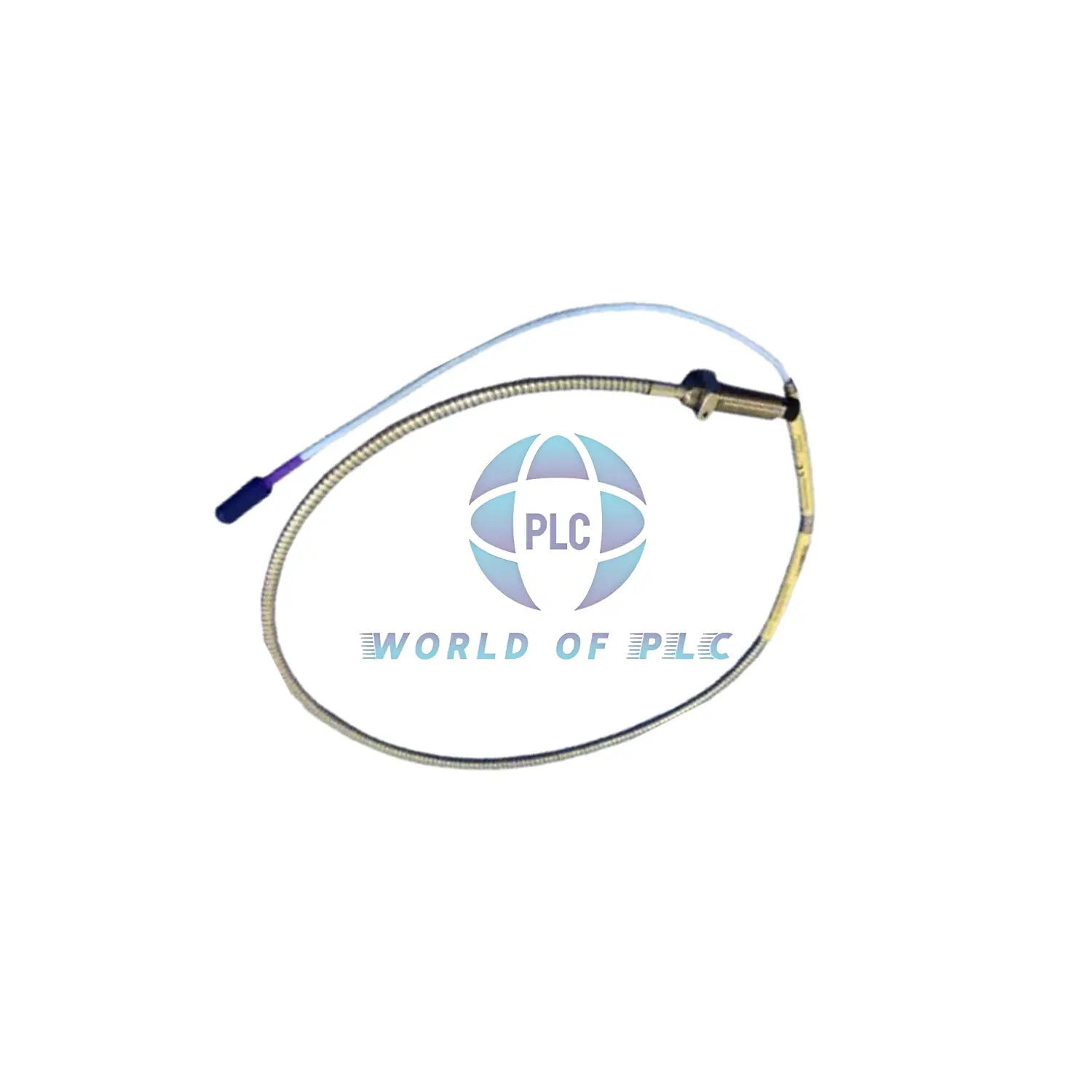

Bently Nevada 330710-000-050-50-02-CN 3300 XL 11mm Proximity Probe

Basic Info

• Brand: Bently Nevada (Made in USA)
• Model: 330710-000-050-50-02-CN
• Type: 3300 XL 11mm armored probe (M16x1.5 thread)

Model Code Details

• 330710: Base 3300 XL 11mm armored probe
• 000: No unthreaded part (0mm length)
• 050: Probe body length – 50mm
• 50: Total cable length – 5m (16.4ft)
• 02: Small ClickLoc connector (standard cable)
• CN: Special certification for specific countries

Main Specs

• Resistance: 7.2±0.8Ω (for 5m probe)
• Temp range: -52°C to 177°C (-62°F to 351°F)
• Cable: 75Ω FEP-insulated (options: 1m/5m/9m)
• Min bend radius: 25.4mm (with/without armor)
• Materials:
  • Tip: PPS plastic
  • Body: 304 stainless steel

Installation Tips

• Thread: M16x1.5 (max 24mm fit)
• Torque:
  • Probe body: 63.3N·m (560 in·lb)
  • Connector: Max 0.565N·m (5 in·lb – just finger-tight)
• Target size:
  • Flat: At least 30.5mm (1.2in) wide
  • Shaft: At least 152mm (6in) wide

Important Notes

• 5m probes: Only work with 5m Proximitor Sensors
• Cold warning: Avoid temps below -34°C (30°F) to protect seals
• CN code: Meets specific country requirements

Package & Warranty

• Includes: Probe, cable, setup guide
• Warranty: 12 months
