330708-00-24-90-02-05 | Bently Nevada 3300 XL 11 mm Proximity Probe

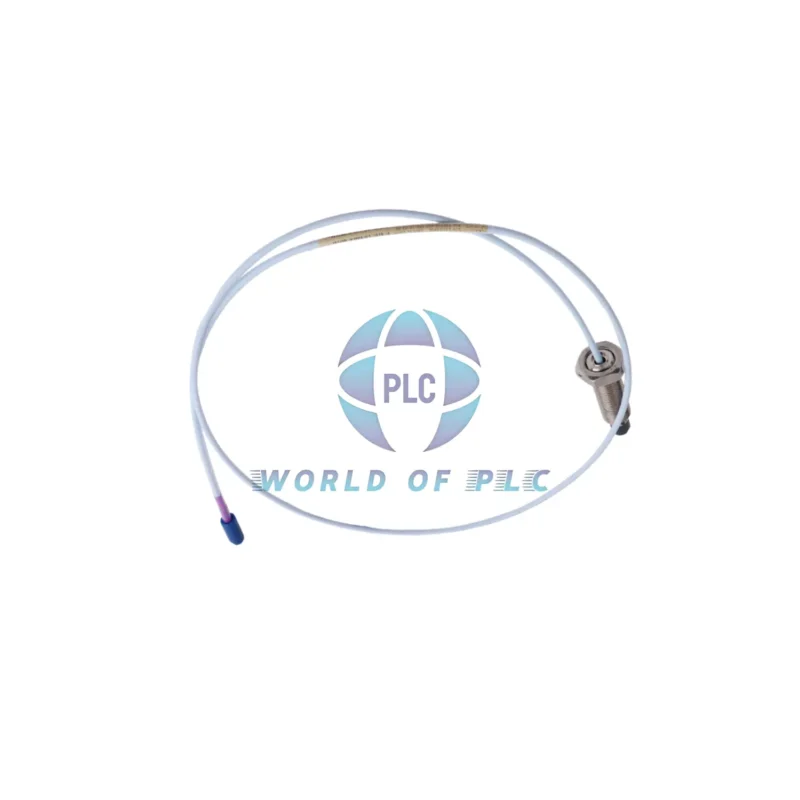

Bently Nevada 330708-00-24-90-02-05 Long-Reach Proximity Probe

Industrial-grade 11mm vibration sensor with 9-meter cable. Monitors machinery health. Made in USA. 12-month warranty.

Model Number Guide

• Base Model: 330708 (11mm probe)
• Configuration:
  • 00 – 0″ unthreaded length
  • 24 – 2.4″ case length
  • 90 – 9.0m cable
  • 02 – ClickLoc connector
  • 05 – Multiple approvals

Technical Specifications

• Sensor Size: 11mm diameter
• Cable Length: 9.0 meters (29.5 ft)
• Resistance: 8.5Ω ±1.1
• Temperature Range: -51°C to +177°C
• Thread Type: 5/8-18 UNF
• Max Torque: 45.2 N•m (400 in•lb)
• Min Bend Radius: 25.4 mm (1.0 in)
• Cable Type: 75Ω triaxial FEP
• Weight: 0.17 kg (0.37 lbs)

Product Highlights

• Extra-long 9m cable for remote monitoring
• PPS plastic tip resists chemicals
• Viton O-ring pressure sealing
• Stainless steel housing (AISI 304)
• Multiple international approvals

Installation Tips

• Mount with 5/8-18 UNF thread
• Max thread depth: 0.938 inches
• Recommended torque: 15.2 N•m
• Keep above -34°C during install
• Maintain 25.4mm cable bend radius

Warranty & Shipping

• 12-month warranty
• New in factory packaging
• Global express delivery options

Expert Questions Answered

• Q: Cable resistance for 9m?
  A: 8.5Ω ±1.1 (center to outer conductor)
• Q: Pressure testing available?
  A: Yes – contact for custom validation
• Q: Chemical compatibility?
  A: PPS tip resists oils/solvents
• Q: Alternative mounting threads?
  A: M16x1.5 (24mm) or M14x1.5 (21mm)
• Q: Connector installation torque?
  A: Finger tight (max 0.565 N•m)
