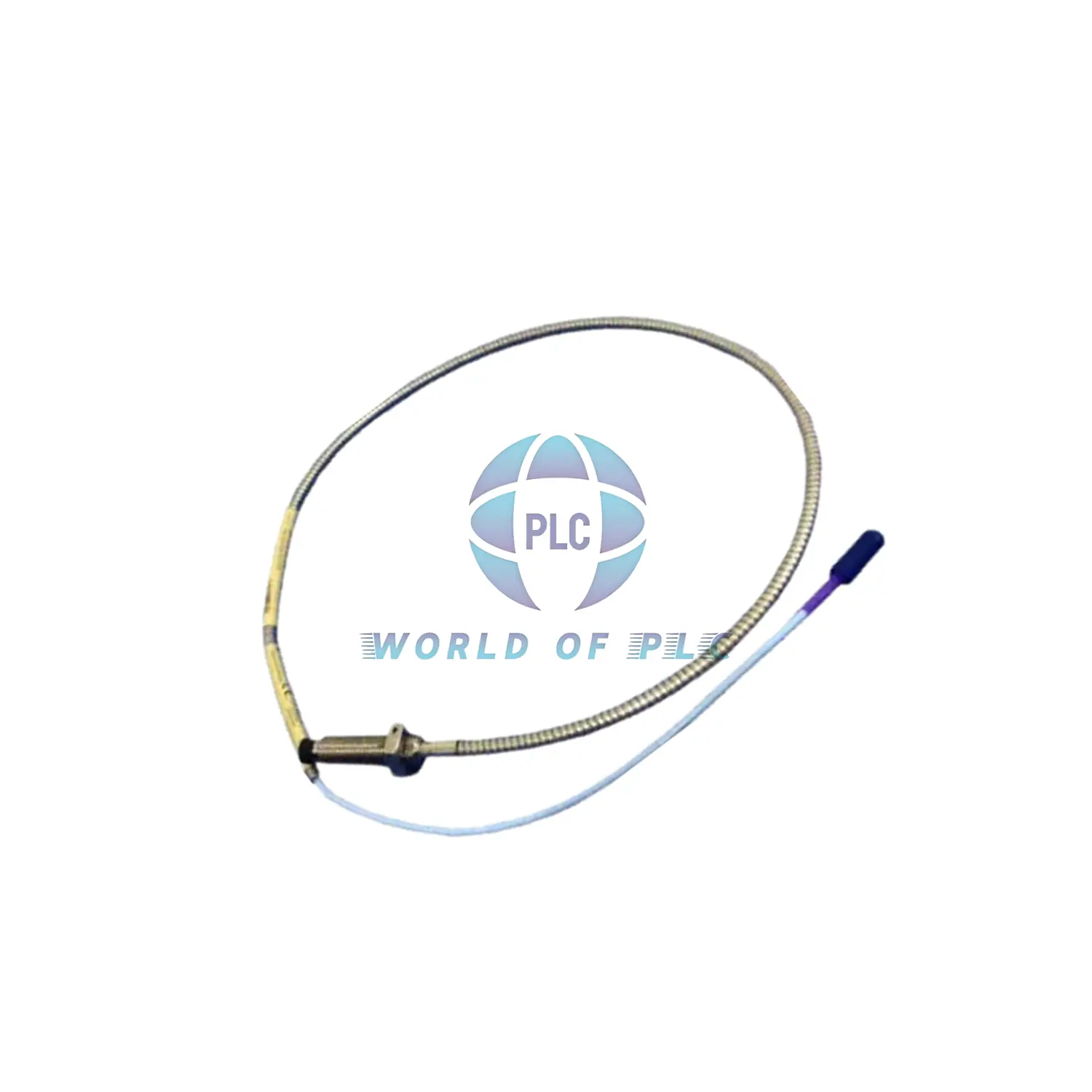

Bently Nevada 3300 XL Proximity Probe: Industrial-Grade Vibration Sensing
New USA-made probe (330702-00-26-10-11-05) with 12-month warranty. Features FluidLoc cable and hazardous area approvals. Ships globally via FedEx/UPS/DHL.
TECHNICAL SPECIFICATIONS
| Model | 330702-00-26-10-11-05 |
| Suffix Breakdown | 00: 0″ unthreaded length 26: 2.6″ case length 10: 1.0m cable 11: ClickLoc/FluidLoc 05: Multiple approvals |
| Thread | 1/2-20 UNF |
| Resistance | 5.9Ω ±0.5 |
| Weight | 0.17 kg |
PERFORMANCE DATA
- Temp Range: -34°C to +177°C (avoid below -34°C for seal integrity)
- Cable Type: 75Ω triaxial FEP-insulated
- Max Torque: 45.2 N·m (400 in-lb)
- Bend Radius: 25.4 mm (1.0 in)
- Pressure Seal: Viton O-ring (not factory tested)
INSTALLATION GUIDE
- Use 15.2 N·m torque (133 in-lb) for case
- Finger-tighten connectors (max 0.565 N·m)
- Maintain 25.4mm minimum bend radius
- Max thread engagement: 19mm (0.75 in)
PACKAGE CONTENTS
- 11mm proximity probe with 1m cable
- ClickLoc connector with protector
- Mounting hardware
- 12-month warranty
FAQ
Q: What’s the maximum temperature?
A: +177°C (351°F) continuous operation.
Q: Is the pressure seal tested?
A: Not factory tested – contact for custom validation.
Q: Can I get longer cables?
A: Yes, 5m and 9m versions available.
Q: Is COO available?
A: Yes, Certificate of Origin upon request.
